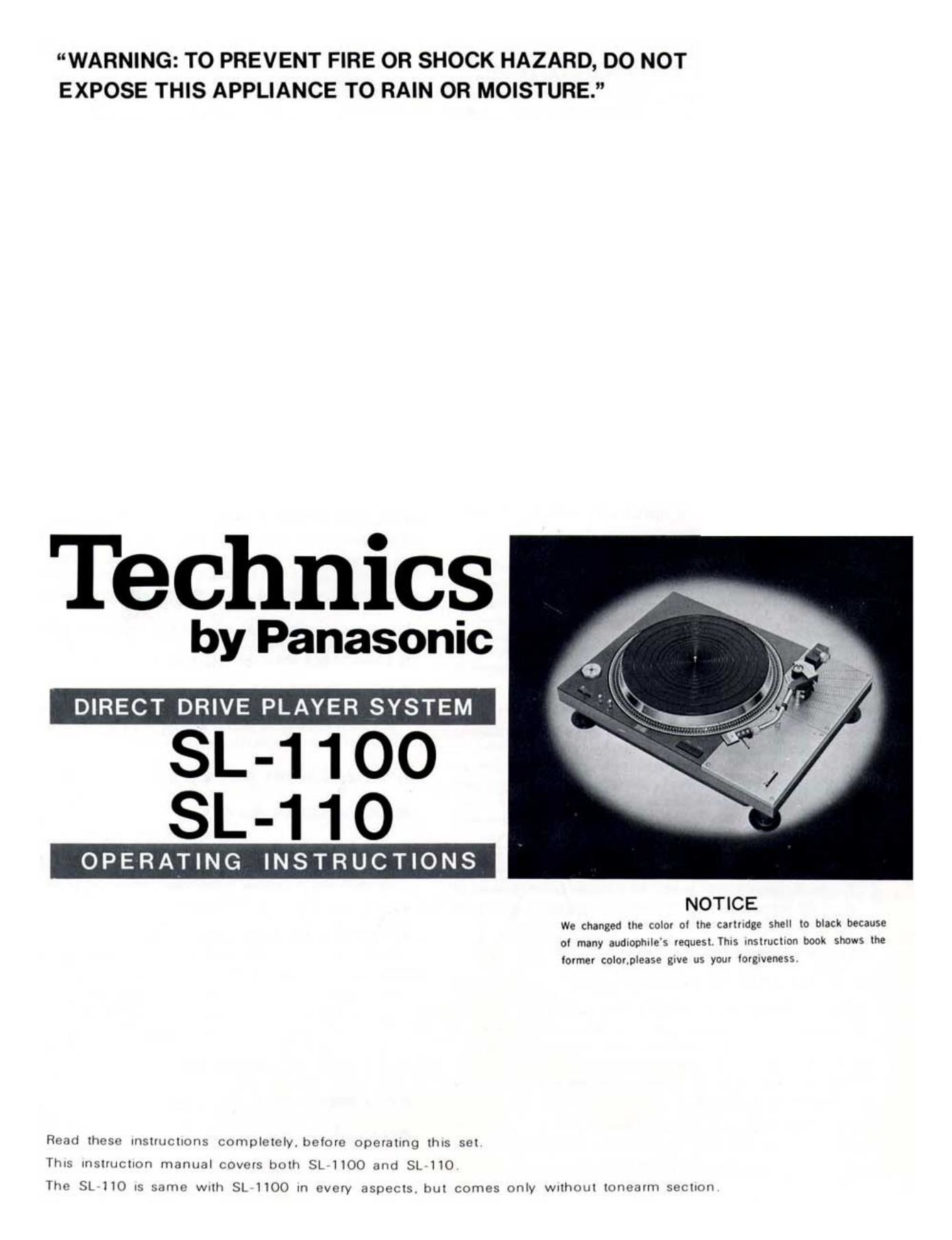

Page 1

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Technics

by Panasonic

DIRECT DRIVE PLAYER SYSTEM

SL-11O

OPERATING INSTRUCTIONS
NOTICE

We changed the color of the carlndge she to black because
of many audiophule's vequesl. Ihls Instruction book shows the

former color,please g-ve us your Iorguveness

Read these Inslmcnons complnmly. before operating "HS set
This msummon manual covets both SLvIIOO and SL 110

The SL 110 :5 same wulh SL 1100 :n evely aspects. but comes only wuhoul Ionearm SQCIIOII

Page 2

We want to thank you for selecting the DIRECT DRIVE PLAYER SYSTEM.
TO Willa optimum performance from this set we recommend that you read these operating instructions carefully.

PARTS IDENTIFICATION
OPERATION AND FUNCTION OF CONTROLS

(TURNTABLE SECTION)
030109 (See Fig.1- 0)

This unit uses a direct drive motor. Therefore, the rotor, which is the
rotating part of the moxor,is connected directly to the turntable platter.
The spindle of the motor and the shaft of the turntable platter are the
same. For this reason, to maintain the high performance described in
the specifications. it is not desirable to apply a large amount of ex-
ternal force to the rotor and the spindle of the motor. The rotor is,
therefore. clamped securely to protect the delicate and important pans
during transportation.

Be sure to remove these fittings 9 carefully, and save them for future
use, as when, for example, the player must again be transported
NOTE

The rotor of the motor is constructed so that it cannot be removed in
order to maintain its high performance for a long time.

Do not attempt to remove the removal prevention fitting @ for the
rotor.

GPILOT LAMP (See Fig.1. 0)

QPOWER SWITCH/SPEED SELECTOR (See Fig.1- 0I
Set the speed selector" to the desired position (33 or 45, depending
upon the speed of the record to be played). The pilot lamp will be
lighted. The turntable platter will not rotate unless you push the
START" button.

QSTART BUTTON (See Fig.1- 0 I
Push the "START" button and the turntable platter will rotate._
Starting rotation power is large with complete stability of speed
reached within one-half rotation at 31/3 r.p.m.

OSTOP BUTTON (See Fig.1- OI
Push the "STOP" button when you want to stop the rotation. The
turntable platter will continue to rotate for a short time because of
its large inertial force.

OVARIABLE PITCH CONTROLS (See Fig.1. OI
Adjust the "variable pitch controls" if necessary. These are designed
to provide adjustment of the selected speed by 10% range
Select the speed of the turntable platter by setting the "speed selector"
to the desired position. The rotating turntable platter when illuminated
by conventional fluorescent lamp or by neon lamp may show move-
ment of the marks on the strobo disc. if so, adjust the "variable pitch
controls" until the strobo marks are stationary.
After the necessary adjustment has been made. the speed will not
change and readjustment will not be necessary.
The strobo marks molded around the turntable platter are used to
check the correct speed of rotation for 50 Hz (European), and 60 Hz
(U.S.A.l. Adjust its rotation according to the strobo label.

OSTROBO MARKS (See Fig.1- 0 I
9STROBO LABEL (See Fig.1-G I
0$PEED ADJUSTMENT SCREWS (See Fig.1- 0 I

ll, for any reason, the adjustment cannot be successfully made, use
a (-I tip screwdriver to adjust the appropriate speed adjustment screws
(33 or 45) located beneath the turntable platter.

Turning the speed adjustment screws to the right or left will increase
or decrease the speed respectively.

OAC OUTLET @(See Fig.1- 0 I

This one is designed with a view to luture use. that is for your special
convenience such as for neon lamp or stylus illumination light.

OSPECIAL OIL (See Fig.1- 0 l
The bearing parts of this set are designed with an ultra-prescise finish
to prevent the generation of "Wow and Flutter".
A special oil has been used to maintain the high-performance efficiency
of this set by forming a uniform film of oil over the parts. For this
reason. use only the oil included with this set for its lubrication.
Even if there is oil leakage around the oil hole or the rotor, caused
during transportation, it will not effect the performance.
Before use, apply about 2 drops of oil into the oil hole.
To lubricate, open the tip of the vessel with a needle. After lubricating,
cover the vessel with the cap to prevent the leakage of oil.
Never use any other type of oil. To lubricate, remove the turntable
platter and apply about 2 drops of oil into the oil hole.
It is sufficient to lubricate the set once after approximately 2,000 hours
of use.
Two thousand hours are equivalent to 5-1/2 years. if the set is used
one hour a day, or to 8 months if used 8 hours a day.
This period is much longer than has been necessary on previous. con-
ventional motors. Do not apply too much oil. nor more often than
necessary.

OOIL HOLE (See Fig.1- 0 )
OOUTPUT TERMINALS (See Fig.1- 0, Fig.3- . I
Connect the pickup cords from the arm panel to the output terminals.

RED IR) -* Channel
WHITE (L) -e Channel
BLACK (u shaped) ->- or lPickuD Earth)

SCREW HOLES (FOR ARM PANEL IiSee Fig.1- 0 I
OTURNTABLE MAT (See Fig.1- 0 I

.TURNTABLE PLATTER (See Fig.1- 0 I

The turntable platter is at 35cm (1325/ "l ultra-large diameter 2kg
(4.4 lb) weight and has inertial moment of 3201 Each turntable platter is dynamically balanced.

.PLAYER CABINET (See Fig.2-O I
OBOTTOM COVER (See Fig.2- 0 I

OAUDlO-INSULATED LEGS (See Fig.2- 0 I
The audio-insulated legs are designed to eliminate vibration entirely
by using special materials inside them. Adjust the height and level
of the player system by turning the legs.

QOUTPUT TERMINALS (See Fig.2- 0 I

Connect the pickup cords provided in this set to the player output
terminals and connect the same channel to the amplifier.

)2 (RED) -> Channel
L (WHITE) -> Channel

E (U shaped) -> n or
0A6 OUTLET Q (See Fig.2- 0 I

0A0 POWER CORD (See Fig.1- QI

@DUST COVER (See Fig.1- 0 I
