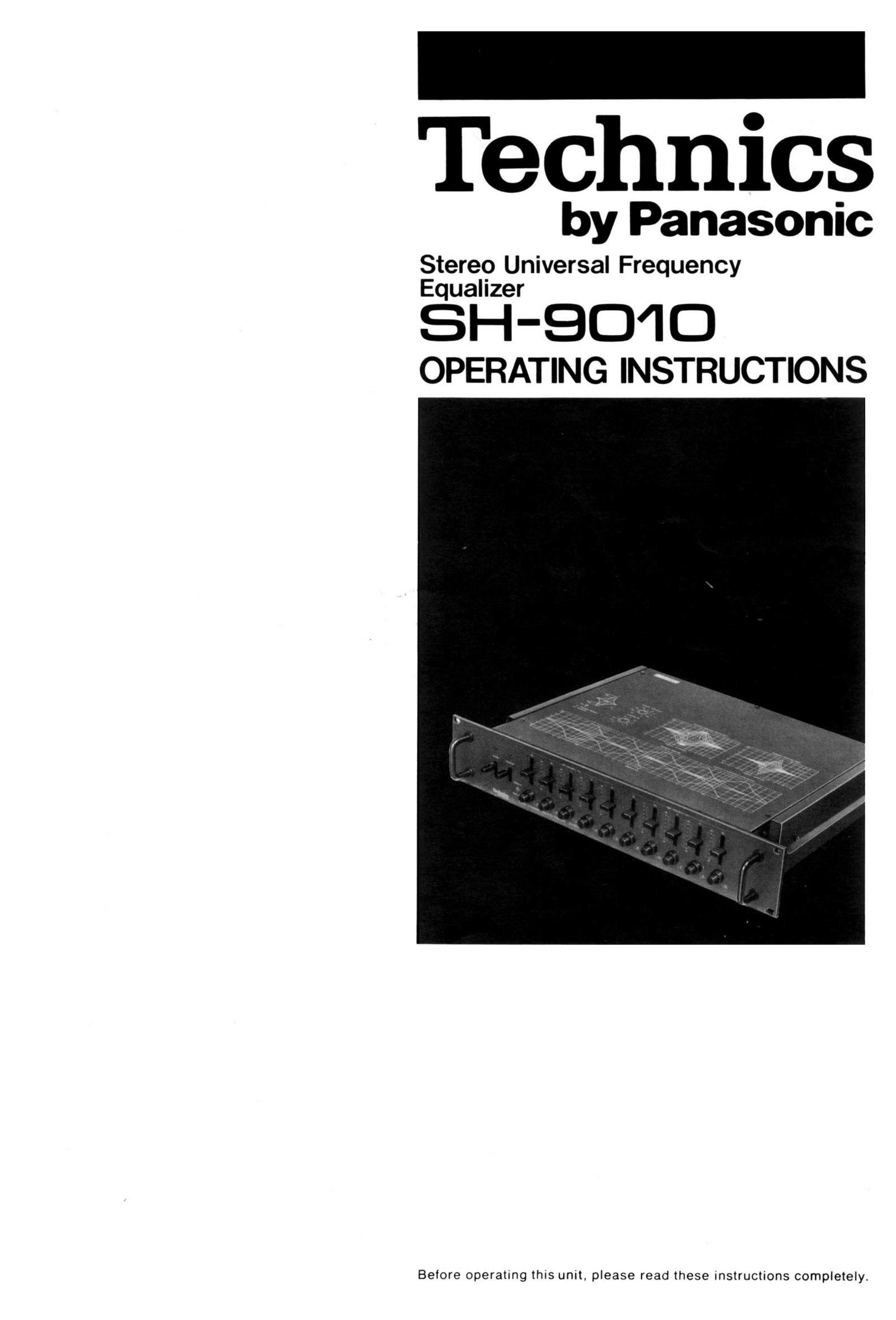

Technics SH 9010 Owners Manual

Page 1

-
Techmcs

by Panasonic

Stereo Universal Frequency
Equalizer

SH-SOID
OPERATING INSTRUCTIONS

Before operating this unit. please read these instructions completely.

Page 2

9 V 9/
7662331 [626? 6. 412

Thank you for selecting the Technics by Pana-
sonic SH-9010 Stereo universal frequency
equaHzen

The model SH-9010 is the result of the com-
bined efforts of Technics by Panasonic engi-
neers who have devoted many long years of
research to improving the efficiency and sound
reproduction of audio equipment.

Only the highest quality products have been used
for even the smallest components, and each unit
is designed so as to assure-maximum reliability
and high quality performance.

In order to assure that you will receive maximum
benefit from the many features of this unit, we
urge you to carefully read and follow the operat-
ing instructions in this booklet.

CONTENTS

0 MAINTENANCE ............................................. 1
0 HELPFUL HINTS ............................................. 1
0 STAR FEATURES .......................................... 2
0 TECHNICAL SPECIFICATIONS ........................ 2
0 ACCESSORIES ............................................. 2
0 STEREO SYSTEM COMPONENTS AND

THEIR CONNECTIONS .................................... 3
0 ATTACHMENT OF FEET ................................. 4
0 CONTROLS AND THEIR FUNCTIONS ............... 5
0 CONTROL OF THE FREQUENCY RESPONSE ...... 6
0 THE PHASE CHARACTERISTIC ........................ 9
0 RESPONSE CURVES ....................................... 10
0 FREQUENCY-RESPONSE-CHECK

GRAPHS .......................................... Back cover

MAINTENANCE

WARNING CONCERNING REMOVAL OF COVERS

NOTE: This unit should be serviced by qualified technicians
only.
No service information is provided for customers.

PRODUCT SERVICE

Should your "Technics by Panasonic" product ever reqmre
servicing, refer to the Directory of Authorized Serwce
Centers or your franchised "Technics by Panasonic" dealer
for detailed instructions.

LOCATION OF SERIAL NUMBER

You will find the serial number located at the bottom of the
unit.

HELPFUL HINTS

1. Keep this unit away from electrical noise-generating
devices such as motors and fluorescent lamps.

2. The set should not be exposed to direct sunlight, and

should be kept free from dust, moisture and vibration.

3. The cabinet of this unit should be given the same care

which you would give any piece of fine furniture.

The front panel should be cleaned with a soft cloth
moistened with a mild soap-and-water solution.

NEVER USE A SOLUTION CONTAINING BENZOL OR
PETROLEUM.

The model number of this product may be found on the back of the unit; and the serial number, on the label

affixed to the bottom of the unit.

You should note the model and serial numbers of this unit in the space provided and retain this insertion as
a permanent record of your purchase to aid in identification in the event of theft.

MODEL NUMBER

SERIAL NUMBER

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,
Do NOT EXPOSE THIS APPLIANCE TO RAIN 0R MOISTURE.
