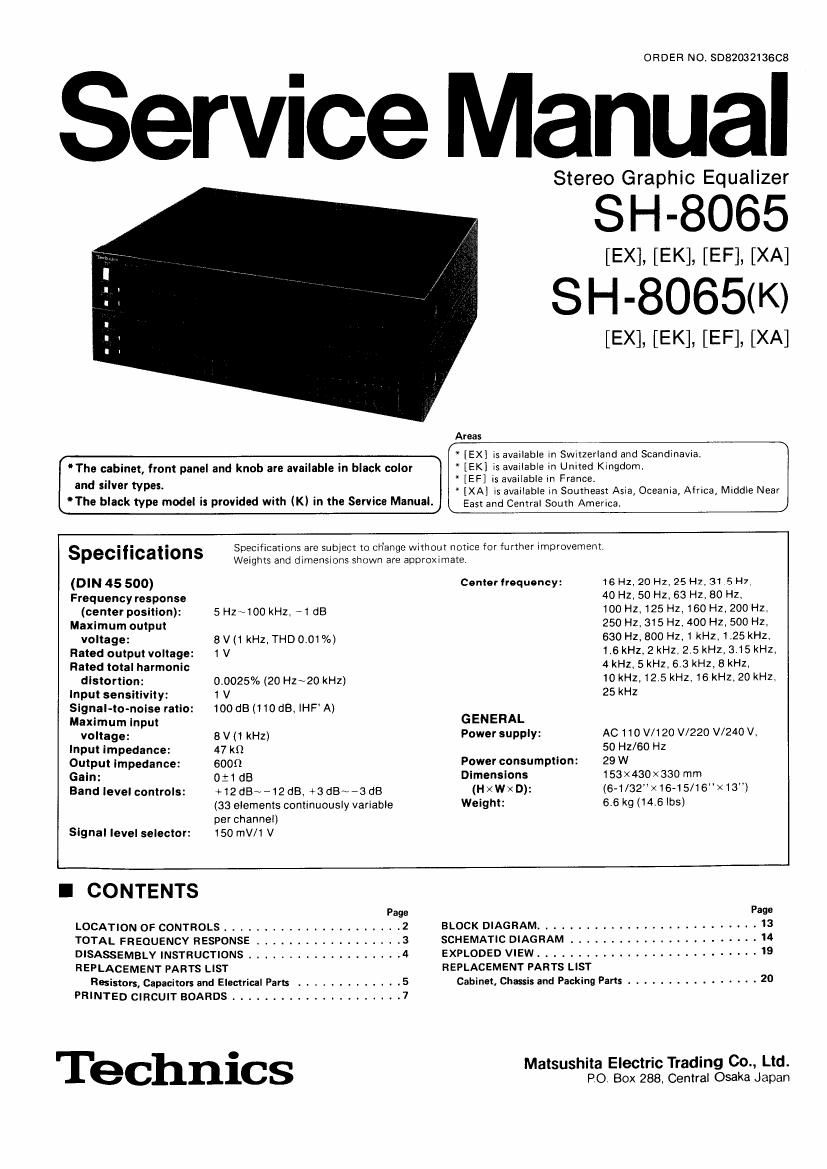

Technics SH 8065 Service Manual
This is the 17 pages manual for Technics SH 8065 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Technics SH 8065 Service Manual (Ocr-read)
Page 2
SH 8065
I LOCATION OF CONTROLS
Equalization indicator
Tape-monitor indicator
Left channel Bandrlevel control
(16 Hz ~25 kHz, divided into
Left channel
38 band in 1/3 octave.
variable-range indicators
Power switch
Equalization swnch
I on - off
Tape monitor selector
1 source - tape
Variable-range selector
.l i 12 dB _ i 3 dB
Equalization-position selector
I source .- rec out
Characteristics selector
lnormal ; reverse
, Right channel Band-level control
Bight channel variablelrange (16 Hz ~ 25 kHz leided into
indicators 33 band in 1/3 octave.
Equalization-position indicator
Characteristics Indicator
Signal level selector
Low level - "150 mV side (Input from REC OUT of amp, output to PLAYBACK)
High level 6 "1V" side (Input from PRE OUT of arm). output to MAIN lNl
Voltage selector AC outlet
lunswltchedl
m -r swims
ll"
REC/PLAY lDlNl sucker
LINEIN PLAVBACK
i>Tape
-REC OUT
* lXAl area is provided with AC outlet,
0 Switches
Equalization switch (E0)
This switch can be used to turn the equalization circuitry on and off,
on: Set to this position for equalizer correction.
Off: Set to this position to turn off equalizer correction. By turning this switch on and off, the equalizer effect can also be
Checked, When this switch is in the "off" position, signals will still pass through the unit and be emitted, regardless of
whether the power switch is in the on or off" position,
