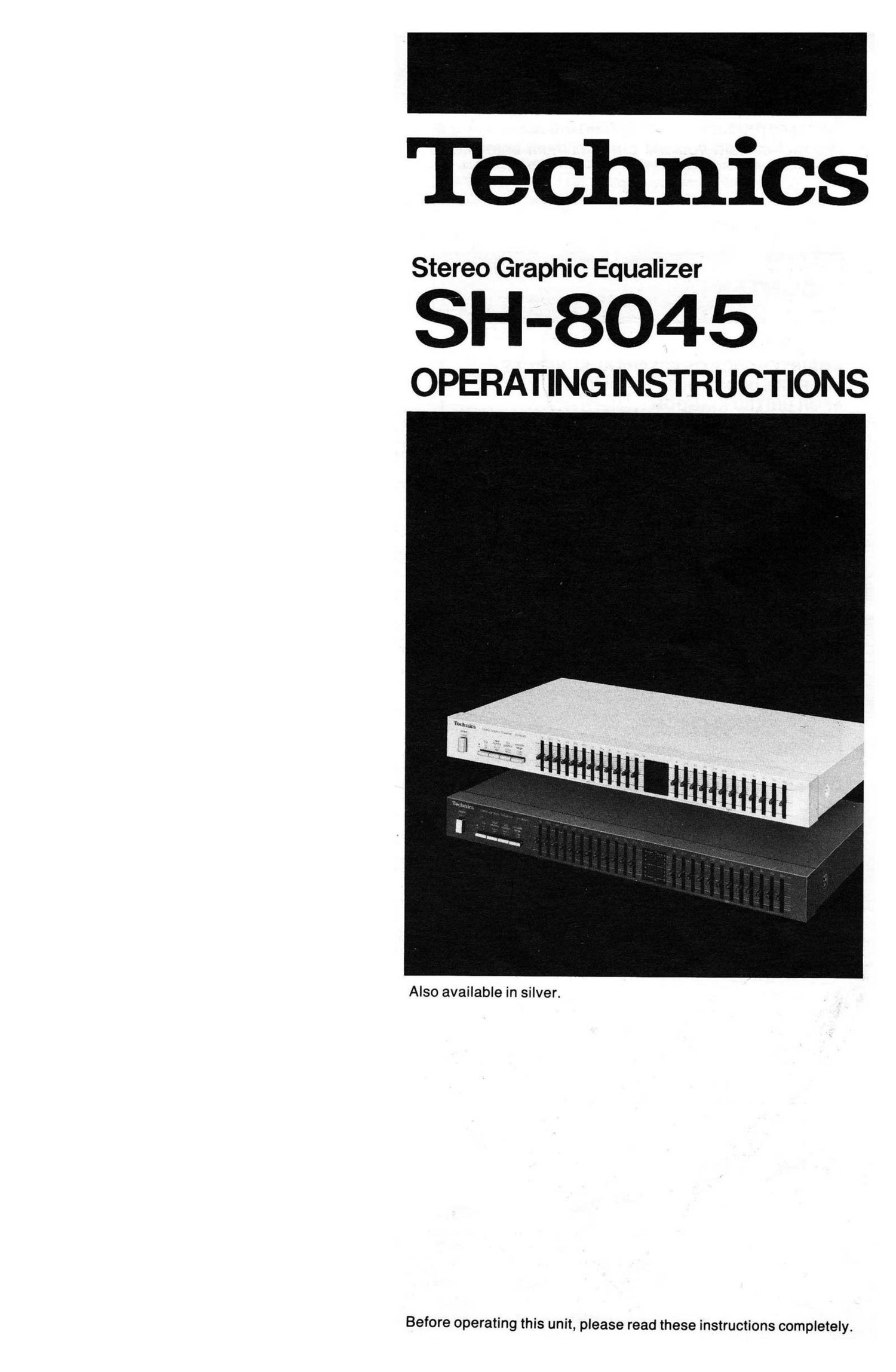

Technics

Stereo Graphic Equalizer

SH-8045

OPERATING INSTRUCTIONS

Page 2

We want to thank you for selecting this product and
to welcome you to the growing family of satisfied
Technics product owners around the world.

We feel certain you will get maximum enjoyment

from this new addition to your home.

Please read these operating instructions carefully,
and be sure to keep them handy for convenient
reference.

OACCESSORIES .................................. 1
OMAINTENANCE OF EXTERNAL SURFACES ...... 1
OBEFORE USING THIS UNIT ...................... 1
OFOR UNITED KINGDOM .......................... 1
.FOR SAFE USE OF THIS UNIT .................... 2
OSTEREO SYSTEM COMPONENTS AND THEIR

CONNECTIONS .................................. 3
OFRONT PANEL CONTROLS AND THEIR

FUNCTIONS ..................................... 4
OOPERATION ..................................... 5
.EXAMPLES OF APPLICATIONS UTILIZING

THE SH-8045 FUNCTIONS ....................... 6
.TROUBLESHOOTING GUIDE .................... 7
.TECHNICAL SPECIFICATIONS ................... 7
OTOTAL FREQUENCY FIESPONS ................. 7

Connection cords (shielded cable) ........................ 2

To clean, use a soft dry cloth.

If the surfaces are extremely dirty, use a soft cloth, dipped into
a soap and water or a weak detergent solution.

Wring the cloth well before wiping the unit.

Wipe once again with a soft dry cloth.

Never use alcohol, paint thinner, or benzine, nor a chemically
treated cloth to clean this unit.

Such chemicals may mar the finish of your unit.

Use a minus (-) screwdriver to set the voltage selector (on the
rear panel) to the voltage setting for the area in which the unit
will be used.

Note that this unit will be seriously damaged if this setting is not
made correctly. (There is no voltage selector for some coun-

tries; the correct voltage is already set.)
(Not for Australia)

Tn-um:tumour ; :,

Important

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN AC-
CORDANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this unit may not
correspond with the coloured markings identifying the termi-
nals in your plug, proceed as follows. The wire which is colour-
ed BLUE must be connected to the terminal which is marked
with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.
