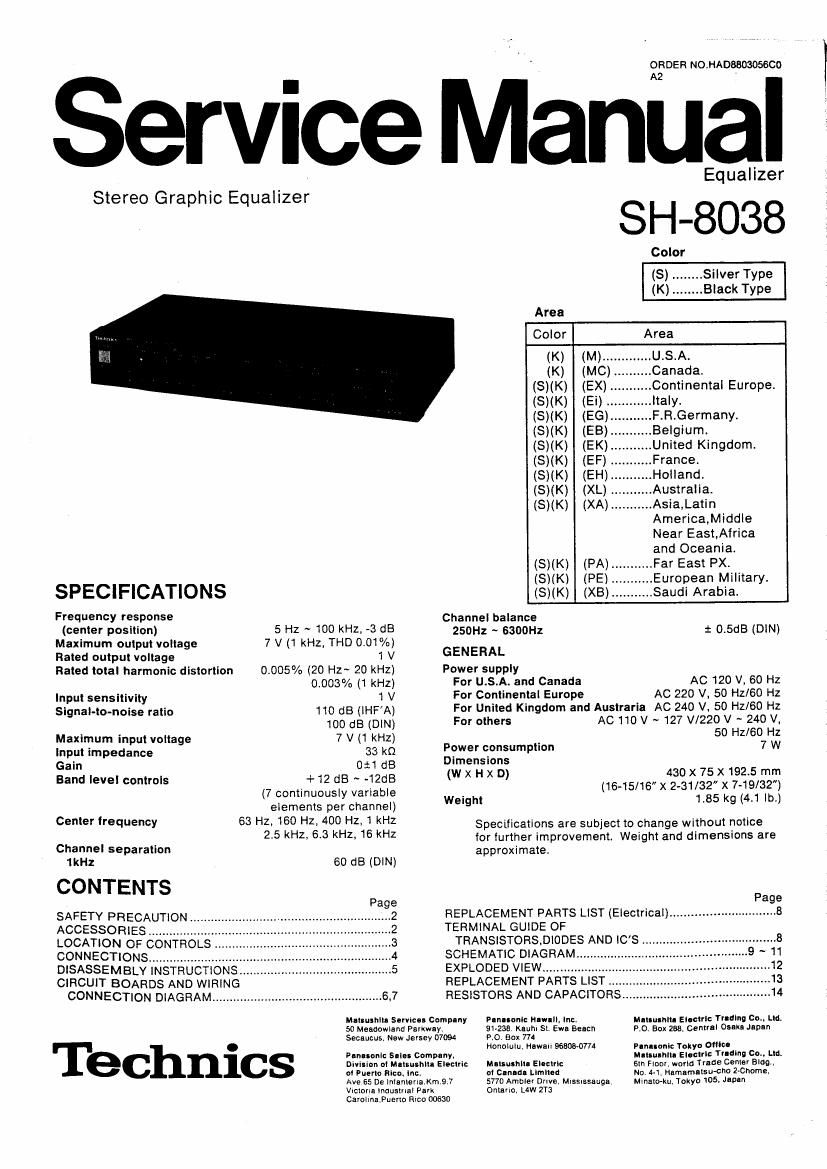

SH- 038

V I SAFETY PRECAUTION (This "safety precaution" ls applied only in U.S.A.)

. Before servicing, unplug the power cord to prevent an electric shock.

. When replacing parts, use only manufacturer's recommended components for safety.

. Check the condition of the power cord. Replace if wear or damage is evident.

. After servicing. be sure to restore the lead dress, insulation barriers, insulation papers, shields. etc.

. Before returning the serviced equipment to the customer, be sure to make the following insulation resistance test to
prevent the customer from being exposed to a shock hazard.

mean--

0 lNSU LATlON RESISTANCE TEST

1. Unplug the power cord and short the two prongs of the plug with a jumper wire.

2. Turn on the power switch.

3. Measure the resistance value with ohmmeter between the iumpered AC plug and each exposed metal cabinet part, such as
screwheads antenna, control shafts, handle brackets, etc. Equipment with antenna terminals should read between 3M9
and 5.2MS'2 to all exposed parts. (Fig. A) Equipment without antenna terminals should read approximately infinity to
all exposed parts. (Fig. B)

Note: Some exposed parts may be isolated from the chasis by design. These will read infinity.

Antenna
terminal \

-----U
0-.

Exposed Exposed 9
metal metal
part part
Ohmmeter Ohmmeter
(Fig-A) (Fig. 8)
Resistanca=3MQ-5.2 M9 Resistance: Approx 00

4. if the measurement is outside the specified limits, there is a possibility of a shock hazard. The equipment should be
repaired and rechecked before it is returned to the customer.

I ACCESSORIES

OStereo connections cables .............................. 2 OAC power supply cord .................................. 1

(SJPK2202-1) .................................... all areas, (SJA175-1T) ...................................... (M) only.
(SJA172) .................................... (MC) only.
(SFDACOSEOS) . . (EX), (EH), (EB), (EF), (El) and (EG) areas.
(SFDACOSGOZ) . (EK) only.
(ewes-1) ............................ (PAiaid (PE) areas.
(SJA173) ........................................ (XL) only.
(SJA183) . , . . (XB) only.
(SJA185) ....................................... (XA) only.
