Technics SH 8038 Owners Manual

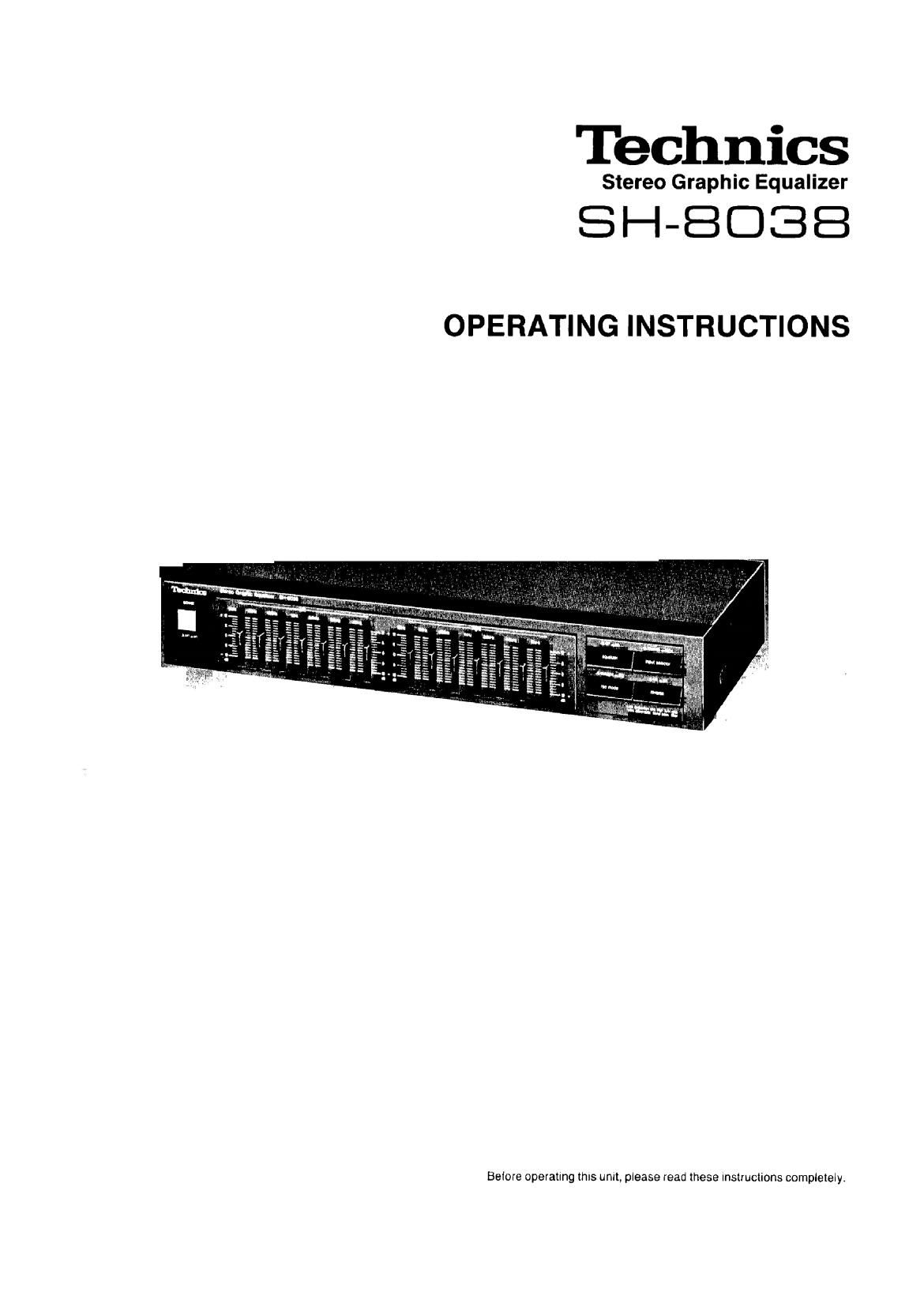

Page 1

Technics

Stereo Graphic Equalizer

SH-BDBB

OPERATING INSTRUCTIONS

Belore operating thlS unit, please read these Instructions completely.

Page 2

3);» 0W /W (KW/H1719

Technics, The Science of Sound, welcomes the
challenge of new audio technologies and brings you
a multitude of world-renowned, high quality audio
components, all backed by our time-honored com-
mitment to innovation, value, and quality.
Technics captures the power of new ideas and turns
them into high performance components like digital
compact disc players that feature High Speed
Linear Motor Transports, high speed editing cas-
sette decks, professional and consumer turntables,
Computer Drive New Class A amplifiers, and AN
receivers that integrate both audio and video equip-
ment.

The Technics list of advanced audio components
continues. From Class AA amplifiers, honeycomb
disc speakers, and multi-disc CD changers to the
world's first touch-sensitive graphic equalizer,
Technics is a shining example of audio technology
at its best.

Contents

OAccessories .............................. 2
OSuggestions for Safety .................... 3
OConnections .............................. 4
oFront Panel Controls and Functions ........ 5
OOperation ................................ 6

Accessories

0Examp|es of Applications .................. 7
ITroubleshooting Guide .......... back cover
OTechnlcal Specifications ........ back cover
oMalntenance .................... back cover
OProduct Service ................ back cover
OAC power supply cord .................................. t

The model number and serial number of this product can
be found on either the back or the bottom of the unit.
Please note them in the space provided below and retain
this booklet as a permanent record of your purchase to aid
identification in the event of theft.

MODEL NUMBER SERIAL NUMBER

WARNING:

TO REDUCE THE RISK OF FIRE on ELEc-
TRIC SHOCK, no NOT EXPOSE THIS AP-
PLIANCE TO RAIN on MOISTURE.

CAUTION

FIISK 0F ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE SCREWS.
NO USER-SERVICEABLE
PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

The lightning flash with arrowhead symbol.
within an equilateral triangle. is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the products
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and main-
tenance (servicing) instructions in the literature
accompanying the appliance.
