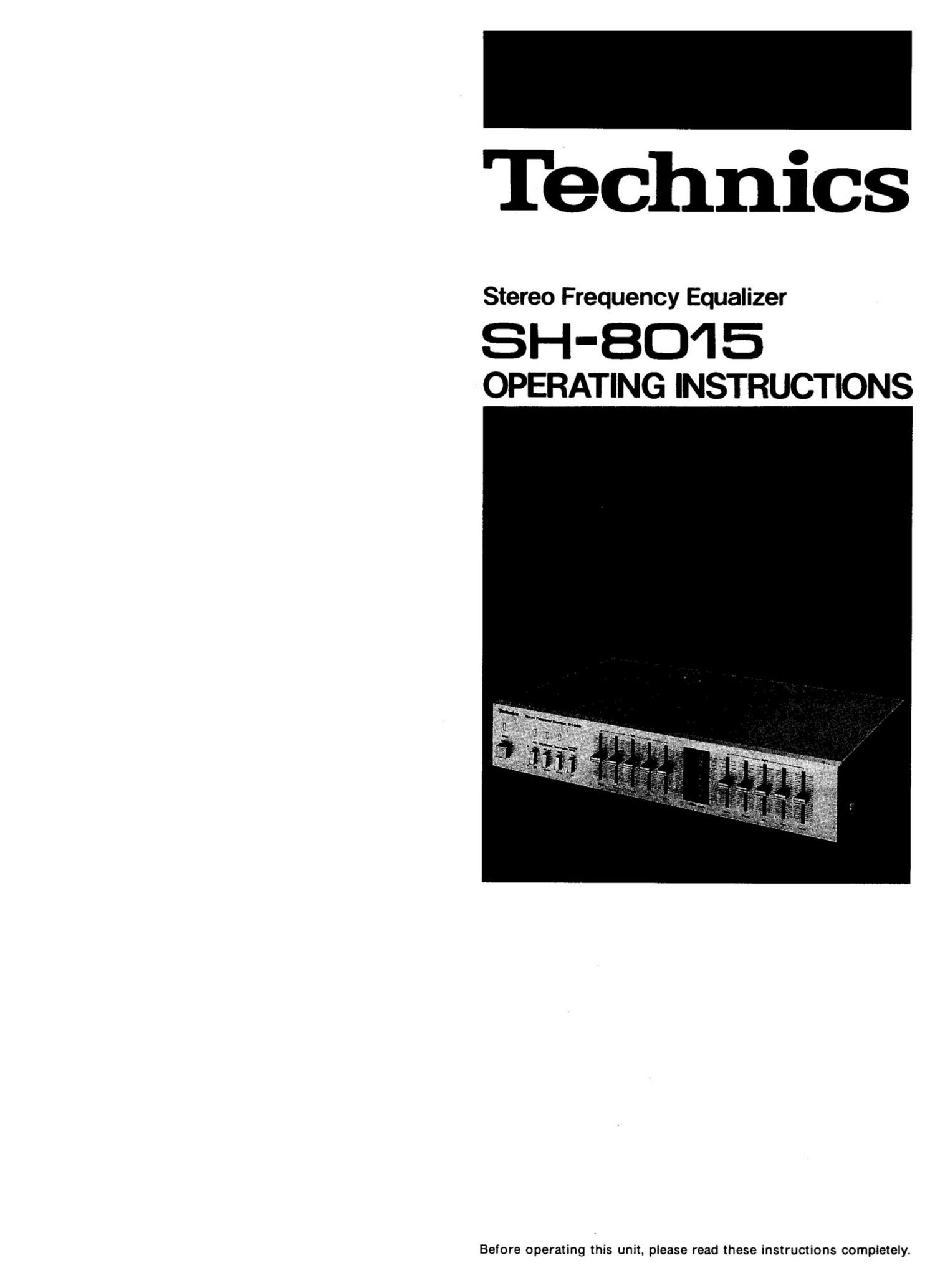

Page 1

Technics

Stereo Frequency Equalizer

SH - BOI 5
OPERATING INSTRUCTIONS

Before operating this unit. please read these instructions completely.

Page 2

Technics. The science of sound. Our name represents
over 100 high quality audio products, in every price
range.

From our revolutionary direct drive turntables to our
highly acclaimed linear phase speakers, Technics
quality and value have become almost legendary among
audio enthusiasts.

Our truly complete selection of turntables (including
belt-drive, direct-drive, and quartz-locked models with
varying degrees of automation) now includes an exciting
line of linear tracking turntables with zero tracking error.
Another innovation, direct drive cassette decks, is
available in both slim and micro formats. in fact, with
Technics micro series, you can assemble an entire

system of the highest quality with truly compact
dimensions. And our receivers, which combine new
class A amplification with quartz synthesizer tuning,
have created tremendous excitement among reviewers
and customers alike.

Amp, tuners, headphone, microphones, cartridges,
openreel decks, sound processors-we are proud of all
our high quality equipment and we are constantly
seeking to improve our products, in terms of
performance and handling ease. In addition, our
confidence in the reliability of our merchandise
(demonstrated by our warranties) and the reasons for
our enormous and rapid growth become obvious.

OACCESSORIES..................................2
oPRODUCTSERVlCE 2

OMAINTENANCE OF EXTERNAL SURFACES ...... 2
OSUGGESTIONSFORSAFETY.................... 3
OCONTROLS AND THEIR FUNCTIONS ..... . . . . . . . . 4

OMORE ABOUTTHE VARIABLE RANGE
SELECTOR 6
OCONTROL OFTHE FREQUENCY
RESPONSE 6

OTOTAL FREQUENCY RESPONSE ....... . . . . . . . . . 7
OTECHNICAL SPECIFICATIONS . . . . . . . . . . . ..... . . . 7

Connection cords (shielded cable) ........................ 2

_I

l Warning concerning removal of covers

This unit should be serviced by qualified technicians only.
No service information is provided for customers.
Should your Technics product ever require servicing, refer
to the Directory of Authorized Service Centers or your fran-
chised "Technics" dealer for detailed instructions.

I Location of serial number
You will find the serial number located at the back of the unit.

To clean. use a soft, dry cloth. It the surfaces are extremely
dirty. use a soft cloth soaked in a detergent (such as used
for washing dishes; diluted to 1/5 or 1/6 strength), and then
wring the cloth well. Wipe once again with a soft, dry cloth.

The model number of this product may be found on the back of the unit; and the serial number on the label affixed to the
back of the unit.

You should note the model and serial numbers of this unit in the space provided, and retain this booklet as a permanent
record of your purchase to aid in identification in the event of theft. '

MODEL NUMBER SERIAL NUMBER

_ - _ - - - - __- _ I -

- - _- I

WARNING:
TO PREVENT FIRE 0R SHOCK HAZARD, DO NOT EXPOSE THISPRODUCT TO RAIN 0R
MOISTURE.
