Technics SE VC1180 Service Manual

Page 1

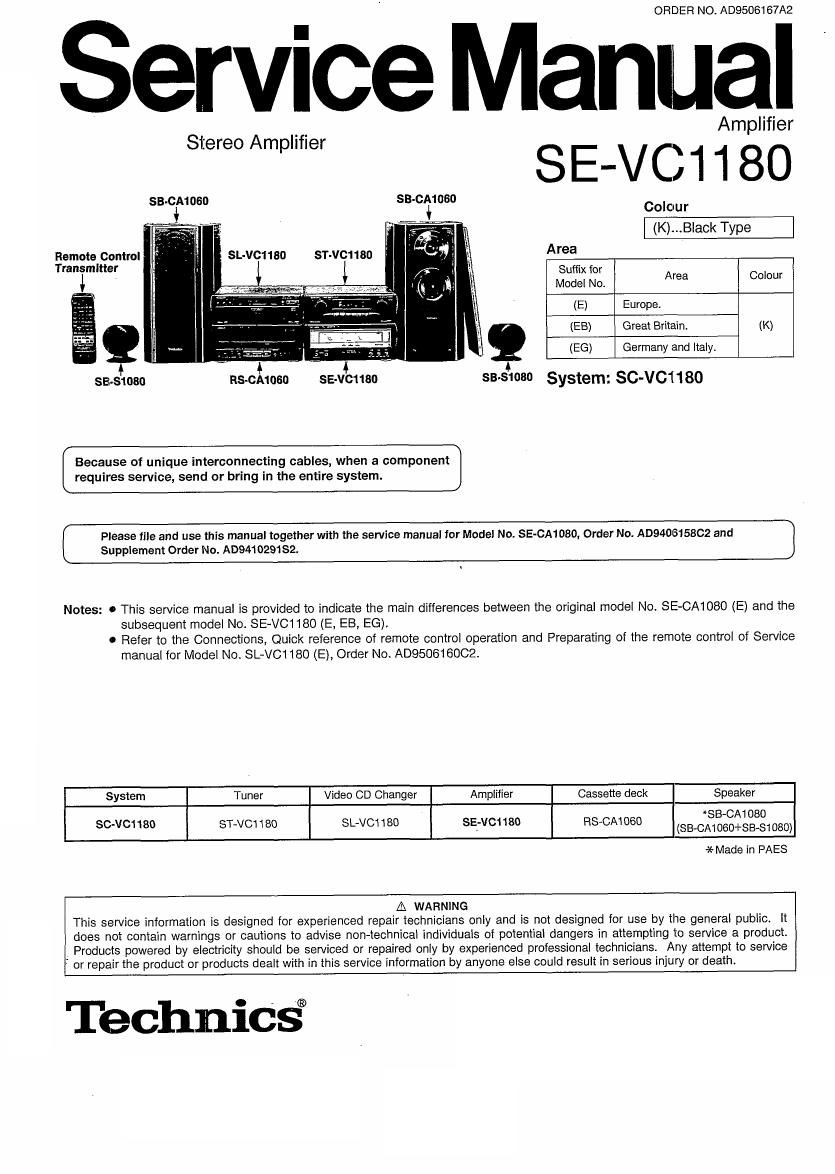

ORDER NO. AD9506167A2

Service Manual

Amplifier

SE-VC31180

Colour

(K)...Black Type

Stereo Amplifier

SB-CAI 080 SB-CA1060

Remote Control . , , SL-Vc1180 sr-vcnao Area
Transmitter I 5:3; If; Area Colour
(E) Europe.
(EB) Great Britain. (K)
9 (EG) Germany and Italy.
l i i A
58-81030 RS-CA1060 SE-VC1180 58-81080 System; SC-VC1180

Because of unique interconnecting cables, when a component
requires service, send or bring in the entire system.

Please tile and use this manual together with the service manual for Model No. SE-CA1OBO, Order No. AD940615862 and
Supplement Order No. AD941029182.

Notes: 0 This service manual is provided to indicate the main differences between the original model No. SE-CA1080 (E) and the
subsequent model No. SE-VCiiSD (E, EB, EG).
0 Refer to the Connections, Quick reference of remote control operation and Preparating of the remote control of Service
manual for Model No. SL-VCi 180 (E), Order No. AD950616002.

System Tuner Video CD Changer Amplifier Cassette deck Speaker
SB-CA1 080
SC-VC1180 ST-VCi 180 SL»VCi 180 SE-VC118D RS'CAi 060 (SB-CA1060+SB-81080)

* Made in FAES

A WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. it
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
" or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

TechniC§

Page 2

SE-VC1180

CHANGES
ICHANGE iN REPLACEMENT PARTS LIST (SL-CA1080 Service Manual of pages 17, 19, 20.)

Notes: 0 Mentioned in this parts list is only those different from Model No. SE-CA1080 (E).

All other parts are the same as for SE-CA1080 (E).

I Important safety notice:
Components identified by Amark have special characteristics important for safety.
Furthermore, special parts which have purposes of fire-retardant (resistors), highouality sound (capacitors), low-noise
(resistors), etc. are used.
When replacing any of components, be sure to use only manufacturers specified parts shown in the parts list.

0 The (SF) mark denotes the standard part.

0 [V] indicates in Remarks columns parts that are supplied by Video Recorder Division.

Change of Part No.
Ref. No. SE-CA1080 + 354131130 Part Name & Description Remarks
(E) (E, EB, EG)
INTEGRATED CIRCUITS
Icsoa XLU2040F~T1 | BU2040F-T2 LED DRIVE
RESISTORS
R617, 618 ERDSZTJSSZ - 114w 5.5m Deletion
R661, 662 * ERDszTJ152 114w 1.5m Addition
CAPACITORS
C561 RCE1EM2218V ECA1EM221B 25v 220uF
01101, 1102 ECBT1E2232F ECBT1H4732F5 50v 0.047pF
CABINET AND CHASSIS
1 RHD30007 RH030007-K1 SCREW
RFKHVC1180E REAR GRILL ASS'Y (E, EG)
5 RFKHE1080EK
RFKHVC1180EB REAR GRILL ASS'Y (EB)
a RFKGECA1080E RFKGEVC1180E FRONT PANEL ASSY
14 RSE0005A R5E0005A-1 METER UNIT
16 RWJ1808150XX RWJ1808100XX FLAT CABLE (W703) (8P)
23 SYE1128-2 SYE112e4 FAN ASSY
23-4 SHE233 SHE233-1 FAN CASE
PACKING MATERIAL
RPG2585 PACKING CASE (SYSTEM) (E, EG)
P1 RPG2130-l
RPGZ586 PACKING CASE (SYSTEM) (EB)
RPG2232 PACKING CASE (TUNER)
P2 RPG2232
RPG2352 PACKING CASE (CD)
RPN0815 CUSHION (TUNER)
P3 RPNoaIe
RPN0858 CUSHION (CD)
P7 xzezsxsmoav x2325x34coax PROTECTION BAG (F.B., ACC.)
ACCESSORIES
A1 RAK-CH729WH RAK-CH739WH REMOTE CONTROL TRANSMITTER
RJADO19-2K AC POWER SUPPLY CORD (E, EG) A (SF)
A5 RJA0019A2A A
VJA0733 AC POWER SUPPLY CORD (EB) A (SF) [v1
RFstc1180E lNSTRUCTION MANUAL ASSY (E)
A6 RFKSECA1060E RFKSVC1180EB INSTRUCTION MANUAL ASSY (EB)
ROTaoea-E INSTRUCTION MANUAL (EG)
A13 - SJP2193 VIDEO CONNECTION CABLE Addition
A14 7 VFA0151-I 21-PIN PLUG ADAPTOR Addition
