Technics SBWA 330 E Service Manual
This is the 58 pages manual for Technics SBWA 330 E Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Technics SBWA 330 E Service Manual (Ocr-read)

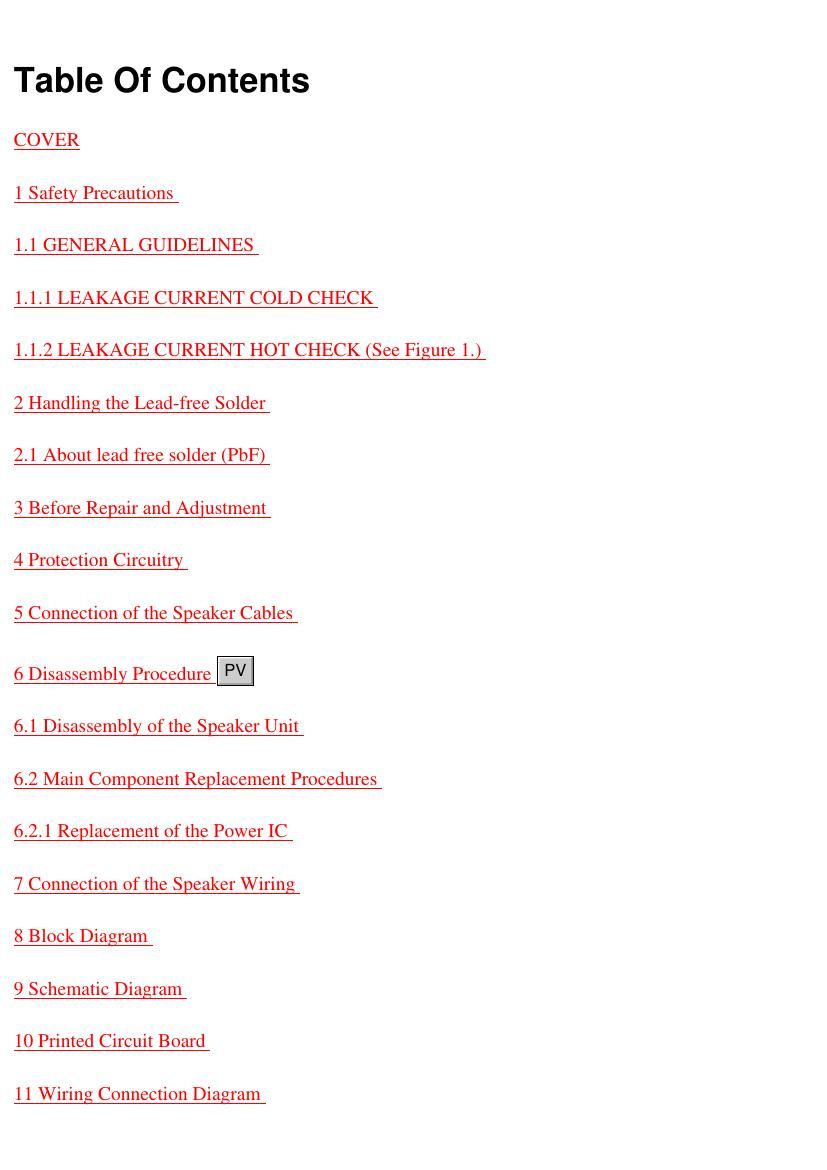

Page 1
12 Illustration of IC s, Transistors and Diodes 13 Parts Location and Replacement Parts List 13.1 Cabinet 13.1.1 Cabinet Parts Location 13.1.2 Cabinet Parts List 13.2 Component Parts List 13.3 Packing Materials & Accessories Parts List 13.4 Packaging
Page 2
Service Manual TOP NEXT ORDER NO. MD0305153C2 Active Subwoofer System l SB-WA330E SB-WA330EB Colour (S)...Silver Type Specification Active subwoofer Type 1 way, 1 speaker, bass-ref. Speaker unit Woofer 17 cm cone type 4W Input power 200 W (Music) Output sound pressure level 80 dB/ W (1.0 m) Frequency range 40 Hz-220 Hz (-16 dB) 45 Hz-180 Hz (-10 dB) Dimensions (W x H x D) 160 x 450 x 424 mm Mass 11.5 kg General Power supply AC 230 V, 50 Hz (E) AC 230-240 V, 50 Hz (EB) Power consumption 210 W Note : Specifications are subject to change without notice. Mass and dimensions are approximate.
