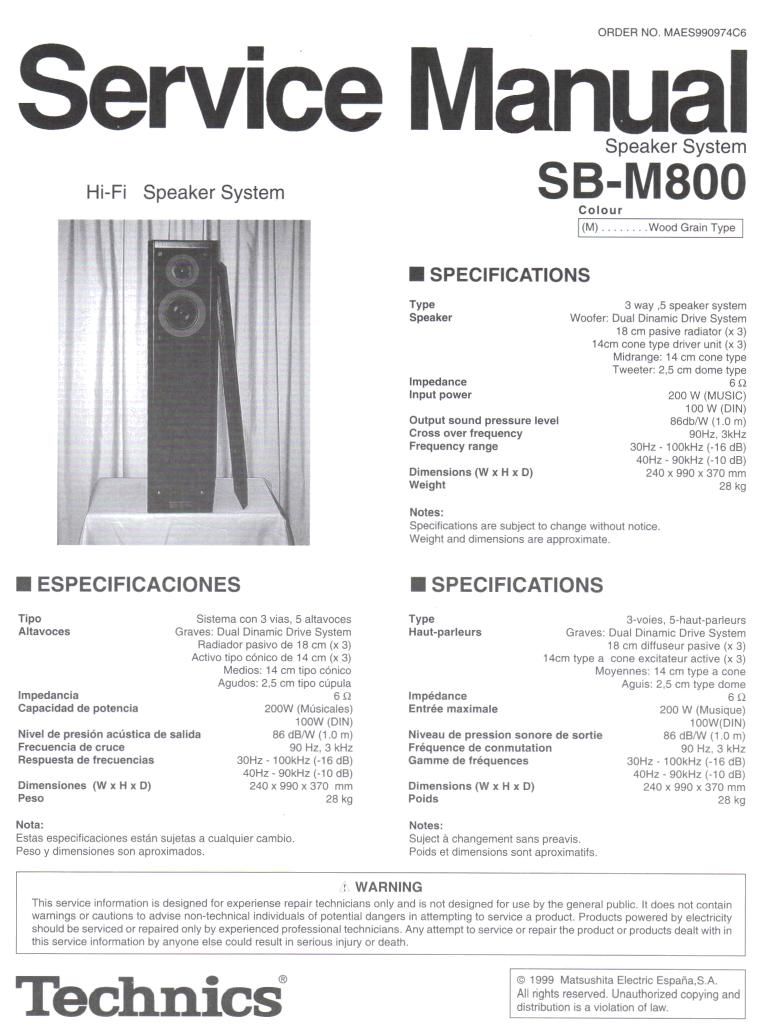

Page 1
ORDER NO MA58990974C6
Service Manual
Hi-Fi Speaker System
I
I ESPECIFICACIONES
Tipo Sistema con 3 was, 5 altavoces
Altavoces Graves Dual Dinamic Drive System
Radiador pasivo de 18 cm (x 3)
Active tipo conico de 14 cm (x 3)
Medios: 14 cm tipo CDnICO
Agudos: 2.5 cm tipo cupula
Impedancia 6 £2
Capacidad de potencia 200W (Musicales)
100W (DIN)
Nivel de presion act'istica de salida 86 dB/W (1 0 m)
Frecuencia de cruce 90 Hz. 3 kHz
Respuesta de lrecuencias 30H: , 100kHz (-16 dB)
40HZ A QOKHZ (-10 dB)
Dimensiones (W x H x D) 240 x 990 x 370 mm
Peso 28 kg
Nota:
Estas especrlicaCIones estan sujetas a cualqurer cambio.
Peso y dimensiones son aproximados.
Speaker System
SB-M800
Colour
(M) V . Wood Grain Type
I SPECIFICATIONS
Type 3 way .5 speaker system
Speaker Woofer: Dual Dinamic Drive System
18 cm paswe radiator (x 3)
14cm cone type driver unit (x 3)
Midrange: 14 cm cone type
Tweeter: 25 cm dome type
Impedance 6 t2
Input power 200 W (MUSIC)
100 W (DIN)
Output sound pressure level asap/w (1.0 m)
Cross over lrequency 90Hz, 3kHz
Frequency range 30H: - 100kHz (-16 dB)
40HZ v QOKHZ (-10 (18)
Dimensions (W x H x D) 240 x 990 x 370 mm
Weight 28 kg
Notes:
Specrlications are subject to change without notice.
Weight and dimensions are approxrmate
I SPECIFICATIONS
Type 3-v0ies, 5-haut-parleurs
Haut-parleurs Graves Dual Dinamic Drive System
18 cm diffuseur pasive (x 3)
14cm type a cone excitateur active (x 3)
Moyennes 14 cm type a cone
Aguis, 2.5 cm type dome
Impedance 6 $2
Entree maximale 200 W (Mu5ique)
1OOWtD|NI
Niveau de pression sonore de sortie 86 dB/W (1.0 m)
Fréquence de conmutation 90 Hz 3 kHz
Gamme de fréquences 30Hz , 100kHz (-16 dB)
40Hz , QOkHZ (-10 (18)
Dimensions (W x H x D) 240 x 990 x 370 mm
Poids 28 kg
Notes:
Suject a changement sans preavts.
POIdS et dimenswns sont aproxtmatifs.
2 WARNING
This service intormation is deSigned for experiense repair technicians only and is not desxgned for use by the general public It does not contain
warnings or cautions to adVIse non-technical mdtvxduals ol potential dangers in attempting to service a product. Products powered by electrICity
should be serVIced or repalred only by experienced professional technICIans Any attempt to serVIce or repair the product or products dealt With In
this servrce information by anyone else could result In serious inlury or death
Technics®
© 1999 Matsushita Electric Espar'iatS At
AII rights reserved Unauthonzed copying and
distribution is a Violation of law
I
I
Page 2
SB-MSOO
I DISASSEMBLY INSTRUCTIONS
Ref. No. 1 Removal 01 the Speaker Nets
Ref. No. 2 Removal of Speaker Midrange
Procedure 1
0 Remove the Speaker Net in the direction of the arrows.
Procedure 1-» 2
- Remove the 2
Speaker Termmals
0 Remove the
Mldrange ang and
Speaker Mrdrange
In the drrecuon al
I Remove the
Speaker CHENEY"
- Remove the
4 screws
lronl pan
\ e Green/Black
Green
Screw 0 4,2 x 25 mm
Ref. No. 3 Removal of Speaker Tweeter
Procedure 1 -> 3
0 Remove the
Speaks Ornament
We
Screw04,2x20rrrn
. Remove the
4 screws
