Technics SBM 300 M 2 Service Manual

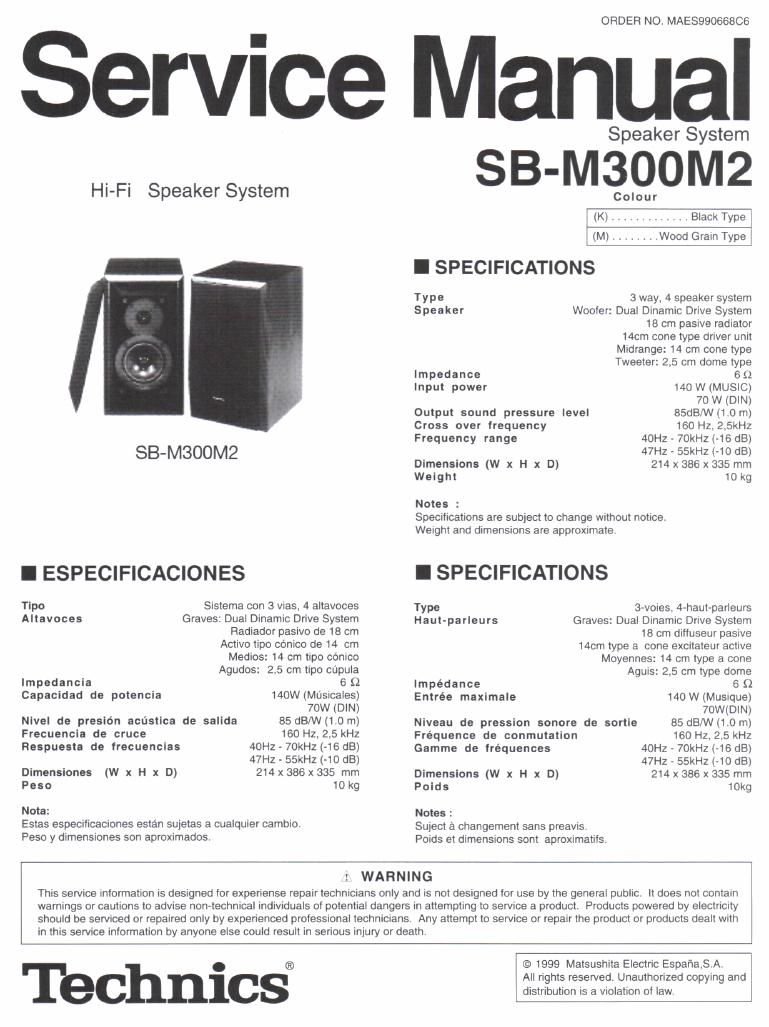

Page 1

ORDER NO. MAESQQOGGBCB

ervice Manual

Hi-Fi Speaker System

SB-M300M2

I ESPECIFICACIONES

Tipo Sisterna con 3 was, 4 altavoces
Altavoces Graves: Dual Dinamic Drive System
Radiador pasivo de 18 cm

Activo tipo cénico de 14 cm

Medics: 14 cm tipo conico

Agudos: 2,5 cm tipo capula

lmpedancia 6 Q

Capacidad de potencia 14OW(M05Icales)
7OW(D|N)
Nivel de presidn acustica de salida 85dB/W(10m)

Frecuencia de cruce
Respuesta de trecuencias

160 HZ( 2.5 kHz
4on - 70kHz (-16 dB)
47Hz - 55kHz (-10 dB)
Dimensiones (W x H x D) 214 x 386 x 335 mm
Peso 10 kg

Nata:
Estas especificaciones estan sujetas a cualquier cambio
Peso y dimenSiones son aproximados.

Speaker System

SB-M3OOM2

Colour
(K) ............ Black Type
(M) ....... Wood Grain Type
I SPECIFICATIONS
Type 3 way, 4 speaker system
Speaker Woofer: Dual Dinamic Drive System

18 cm paSive radiator

14cm cone type driver unit
Midrange: 14 cm cone type
Tweeter: 2.5 cm dome type

Impedance 6 52
Input power 140W(MUS|C)

70 W (DIN)
Output sound pressure level 85dB/W (1.0 m)

Cross over frequency
Frequency range

160 Hz, 2,5KH2
40Hz - 70kHZ (-16 dB)
47HZ - SSkHZ (-10 dB)
Dimensions (W x H x D) 214 x 386 x 335 mm
Weight 10 kg

Notes :
Specifications are subject to change without notice.
Weight and dimensions are approximate

I SPECIFICATIONS

Type 3»voies, 4-haut-parieurs
Haul-parleurs Graves: Dual Dinamic Drive System
18 cm difluseur pasive

14cm type a cone excitateur active

Moyennes: 14 cm type a cone

Aguis: 2.5 cm type dome

Impedance 6 Q
Entrée maximale 140W (Musique)
7OW(D|N)

a5 dBNV (1.0 m)

160 Hz. 25 kHz

40Hz , 70kHZ (716 dB)
47H: 55kHz (40 dB)
Dimensions (W x H x D) 214 x 386 x 335 mm
Poids 10kg

Niveau de pression sonore de sortie
Fréquence de conmutation
Gamme de frequences

Notes :
Suject a changement sans preavis
Poids et dimensions sont aproximatlis.

: WARNING
This service intormation is desrgned for experiense repair technicians only and is not designed for use by the general publid It does not contain
warnings or cautions to advise non~technical individuals 01 potential dangers in attempting to servrce a product Products powered by electrimty
should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with
in this service information by anyone else could result in serious injury or death

Tbchnics®

© 1999 Matsushita Electric EspafiaSA.
All rights reserved Unauthorized copying and
distribution is a violation of law.

Page 2

SB-M390M2 ,

I Cabinet Parts Location
