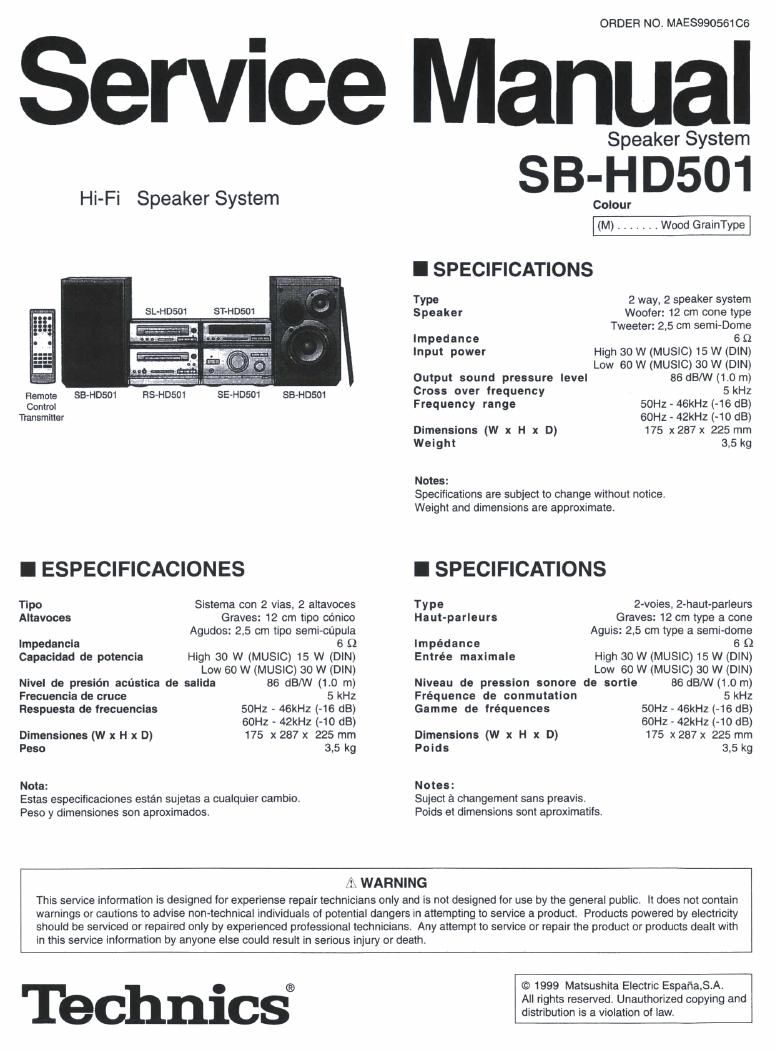

Page 1

ORDER NO. MAE8990561CG

Service Manual

Hi-Fi Speaker System

SL-HD501 ST-HD501

Remote SB-HDSDI RS-HD501 SE-HDSUl SB-HD501
Control
Transmitter

I ESPECIFICACIONES

Tipo Sistema con 2 vias. 2 altavoces
Altavoces Graves: 12 cm tipo conico

Agudos: 2,5 cm tipo semi-copula
lmpedancia 6 £2

Capacidad de potencia High 30 W (MUSIC) 15 W (DIN)
Low 60 w (MUSIC) 30 w (DIN)
Nivel de presion acustica de salida 86 dB/W (1.0 rn)
Frecuencia de cruce 5 kHz
Respuesta de trecuenclas 50Hz v 46kHz (-16 dB)
60H: - 42kHz (-10 dB)

Dimensiones (W x H x D) 175 x 287 x 225 mm
Peso 3,5 kg

Nola:
Estas especilicaciones estan quelas a cualquier cambio.
Peso y dimensiones son aproximados.

Speaker System

SB-H D501

Colour

(M) V . Wood GrainType

I SPECIFICATIONS

Type 2 way, 2 speaker system
Speaker Woofer: 12 cm cone type

Tweeter: 2,5 cm semi»Dome
Impedance 6 (2
Input power High 30 W (MUSIC) 15 W (DIN)

Low so w (MUSIC) 30 w (DIN)

Output sound pressure level 86 dB/W (1.0 m)
Cross over frequency 5 kHz
Frequency range 50Hz - 46kHz (-16 dB)
60HZ - 42KHZ (-10 dB)

Dimensions (W x H x D) 175 x287x 225 mm
Weight 3.5 kg

Notes:
Specifications are subject to change without notice.
Weight and dimensions are approximate.

I SPECIFICATIONS

Type 2-voIes. 2~haut-parleurs
Haul-parlours Graves: 12 cm type a cone
Aguis: 2,5 cm type a semi-dome

Impedance 6 Q
Entree maximale High 30 W (MUSIC) 15 W (DIN)
Low 60 W (MUSIC) 30 W (DIN)

Niveau de pression sanore de sortie 86 dBNV (1,0 m)
Fréquence de conmutation 5 kHz
Gamma de frequences 50H: - 46kHz (-16 dB)
60H2 - 42kHz (-10 dB)

Dimensions (W x H x D) 175 x 287 x 225 mm
Poids 3.5 kg

Notes:
Suject a changement sans preavis.
Poids et dimensions sont aproxirnatifs.

L WARNING
This service information is designed for experiense repair technicians only and is not designed 10! use by the general public. It does not contain
warnings or cautions to advise non»technica| Individuals of potential dangers In attempting to service a product. Products powered by electricity
should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with
in this service information by anyone else could result in serious injury or death.

Tbchnics®

© 1999 Matsushita Electric Espafia,S.A.
All rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

7 SB-HD501

I Replacement Parts List

Notes 1 Part numbers are indicated on most mechanical pans Please use this pan number for pans orders.
2. MAES indicates pans that are suplied by MAES.

Nola 1 El cédigo esté Indicado en la mayoria de las piezas. Por favor use este cédigo para sus pedidost
2. La indicacién MAES signilica recambios suministvados a través de MAES.

Ref. Nu, Pan Nu Part Name & Dc SPEAKER (5) a RGKP1114A-K ORNAMENT WOOFEFl(R) [MAES]
SP1 EASTIGKHOZAS SPEAKERITWEETER) [MAES] 4 RKTPHDSO1 BASS REFLEX ASSY [MAES]
SP2 EAST12FL18A6 SPEAKERIWOOFER) [MAES] 5 XTNP42+20FG SCREW TWEETERrTERM. [MAES]
CABINET PARTS 6 XTN42+20FG SCREW WOOFER [MAES]
1 RVKOSBZF-M CABINET ASSY (L) [MAES] 7 RM00855 TWEETER GASKET [MAES]
1 HYK0882G-M CABINET ASS'Y (R) [MAES] s RMQUGB4A WOOFEFl GASKET [MAES]
1-1 RKAoo72-K LEG [MAES] PACKING PARTS
1-2 REJ0133-1 TERMINAL ASSY [MAES] p1 Rpe4227 CARTON BOX [MAES]
1-3 SHGBGQO44 NET HOLDER [MAES] p2 RPN1133A PAD up [MAES]
2 HYBP0212 NET FRAME [MAES] P2 RPN1 1838 PAD BOTTOM [MAES]
3 FlGKP1114-K ORNAMENT WOOFER(L) [MAES] p3 SPH8G415 SHEET [MAES]

I Schematic Diagram

GRAY +C GRAY éfl SP1
Tweeter
BLUE T 0% BLUE - 2.5cm Semi-dome
RED + 6 RED Ii SP2
W f
BLACK - 0 BLACK - 12%?neg30ne
I Cabinet Parts Location 1

Printed in Spain
A990507000JA
