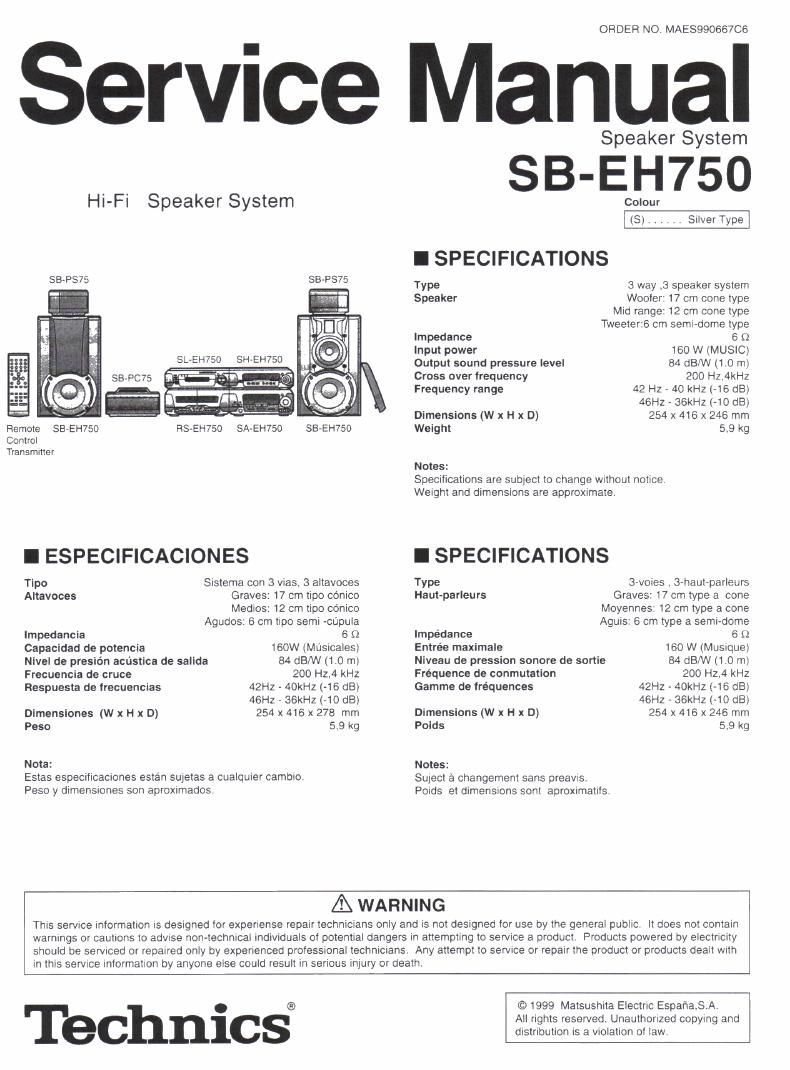

Page 1

OR DER NO. MAE3990667CS

Service Manual

Hi-Fi Speaker System

SB»PS75

SL-EH750 SH»EH750

Remote SE-EH750 RS-EH7SO SA-EH750 SB-EH750
Control
Transmitter

I ESPECIFICACIONES

Tipo SIsterna con 3 vias, 3 altavoces
Altavoces Graves: 17 cm tIpo cénIco
Medios: 12 cm tipo cfmico

Agudos: 6 cm tipo semi -cUpula

lmpedancia 6 Q
Capacidad de potencia 160W (Musicales)
Nivel de presién acustica de salida 84 dB/W (1.0 rm
Frecuencia de cruce 200 Hz,4 kHz
Respuesta de trecuencias 42Hz - 40kHz (~16 dB)
46Hz - 36kHz (-10 dB)

Dimensiones (W x H x D) 254 x 416 x 278 mm
Peso 5.9 kg

Nota:
Estas especificaciones estan sujetas a cualquier cambio,
Peso y dimensiones son aprOXImados.

Speaker System

SB-EH750

Colour

I SPECIFICATIONS

Type 3 way ,3 speaker system
Speaker Woofer: 17 cm cone type
Mid range: 12 cm cone type

Tweeterze crn semI-dame type

Impedance 6 :2
Input power 160 W (MUSIC)
Output sound pressure level 84 dB/W (1.0 m)
Cross over frequency 200 Hz.4kHz

Frequency range 42 Hz - 40 kHz (-16 dB}
46HZ - SSKHZ {-10 dB)
Dimensions (W x H x D) 254 x 416 x 246 mm

Weight 5.9 kg

Notes:
Speciﬁcations are subject to change WIthout notIce.
Welght and dimensions are approximate.

I SPECIFICATIONS

Type 3-VOleS . 3-haul-parleurs
Haut-parleurs Graves: 17 cm type a cone
Moyennes: 12 cm type a cone

Aguis: 6 cm type a semi-dome

Impédance 6 (2
Entree maximale 160 W (Muelquel
Niveau de pression sonore de sortie 84 dB/W (1.0 m)
Fréquence de conmutatlon 200 Hz.4 kHz
Gamme cle lréquences 42H: ~ 40kHz (716 dB)
46HZ - 36kHz (~10 dB)

Dimensions (W x H x D) 254 x 416 x 246 mm
Poids 5.9 kg

Notes:
Sweet 3 changement sans preaVIs.
POIds et dimenSIons sont aprOXImatIts.

A WARNING

This service information is designed for expenense repaIr technicians only and is not designed for use by the general publIc It does not contain
warnlngs or cautIons to adVIse non-technical individuals of potential dangers in attempttng to service a product, Products powered by electricity
should be sen/Iced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with
In thIs serVIce InlormatIon by anyone else could result In serious injury or death.

Technics®
