Technics SBEH 560 Service Manual

This is the 8 pages manual for Technics SBEH 560 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 8

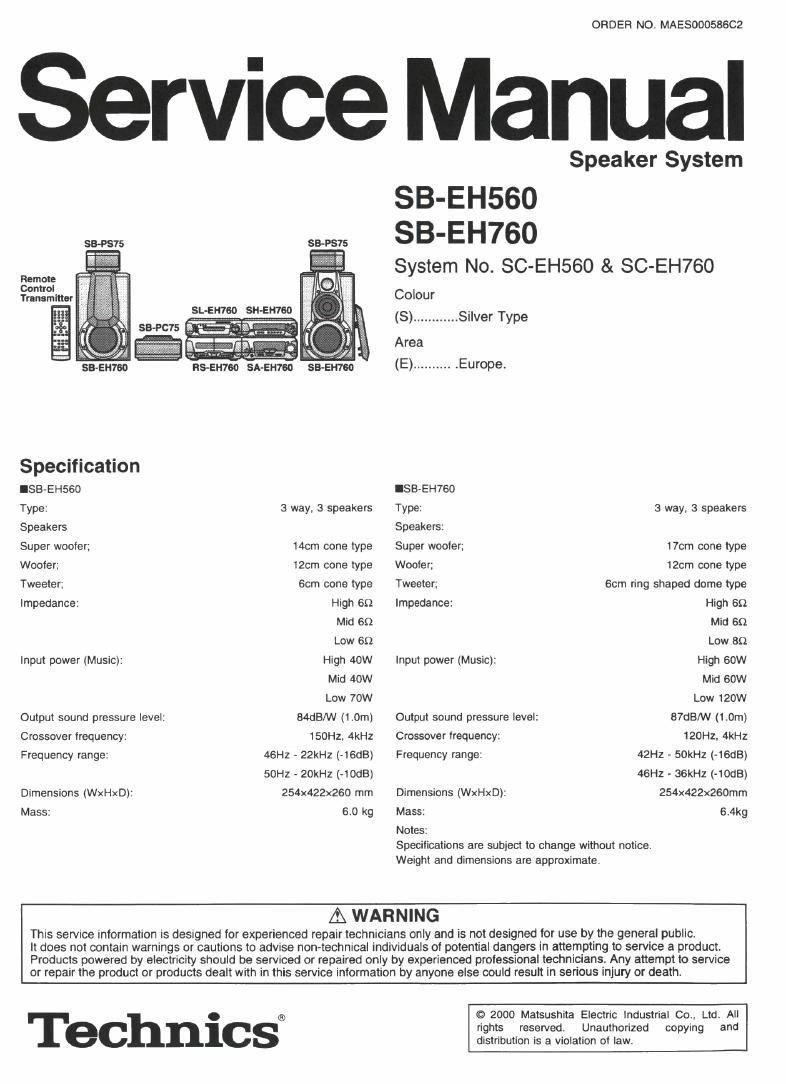

Extracted text from Technics SBEH 560 Service Manual (Ocr-read)

Page 1

ORDER NO. MAESOOOSBSCZ

Service Manual

SB-PSIS

Speaker System

SB-EH560
SW. SB-EH760

System No. SC-EH560 & SC-EH760

Specification
ISB-EHSGD

Type:

Speakers

Super woofer;

Woofer;

Tweeter:

Impedance:

input power (Music):

Output sound pressure level:
Crossover lrequency:
Frequency range:

RS-EH'IBO SA-EHWO SB-EHIGO

3 way. 3 speakers

14cm cone type
12cm cone type

6cm cone type

High 69

Mid 69

Low 60

High 40w

Mid 40W

Low 70W

a4dB/w (1.0m)
150Hz, 4kHz

46Hz - 22kHz (-16dB)
50H: - 20kHz (-1 DdB)

Colour
(S) ............ Silver Type

Area
(E) .......... .Europe,

ISB-E H 760
Type:
Speakers:
Super wooler:
Woole r;
Tweeter:
Impedance :

Input power (Musrcl:

Output sound pressure level:

Crossover frequency:
Frequency range:

3 way. 3 speakers

17cm cone type

120m cone type

6cm ring shaped dome type
High an

Mid 69

Low 80

High sow

Mid 60W

Low 120W

ems/w (1.0m)
120Hz, 4kHz

42H: - 50kHz (-iede)
46H: - 36kHz (-10dB)

Dimensions (WxHxD): 254x422x260 mm Dimensions (WxHxD): 254x422x260mm
Mass: 6.0 kg Mass: 6.4kg
Notes:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
A WARNING

This service information is designed for experienced repair technicians only and is not designed tor use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced prolessional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

Technicsi

distribution is a violation of law.
