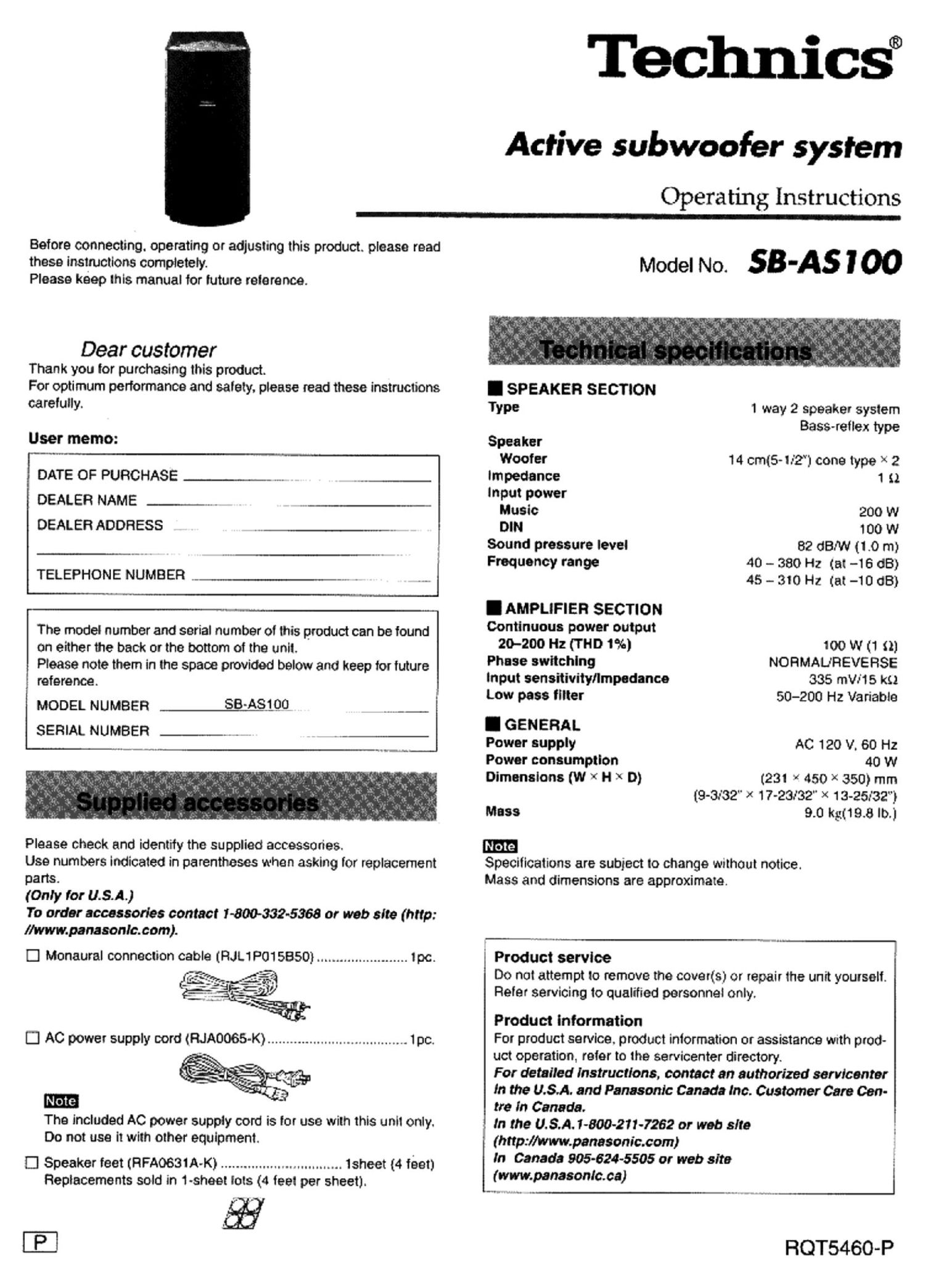

Technics SBAS 100 Owners Manual

Page 1

Before connecting. operating or adjusting this product. please read

these instructions completely.
Please keep this manual for future reterence.

Dear customer
Thank you tor purchasing this product.

For optimum performance and saieiy. please read these instmctions

carefully.

User memo:

DATE OF PURCHASE __ m. ______.
DEALER NAME __
DEALER ADDRESS

TELEPHONE NUMBER .___________... .

The model number and serial number of this product can be found
on either the back or the bottom of the unit.

Please note them in the space provided below and keep for future
reference.

MODEL NUMBER
SERIAL NUMBER

SB-ASlQO

Please check and identify the supplied accessories.

Use numbers indicated in parentheses when asking for replacement

parts.

(Only for 0.5.4.)

To order accessories contact 1-800-332-5368 or web site (http:
//www.panaeonlc.com).

E] Monaural connection cable (RJLtPOtSBSO) ........................ 1pc.

The included AC power supply cord is for use with this unit only.

Do not use it with other equipment.

1] Speaker feet (RFAosaiA-K) ................................ 1sheet {4 risen

Replacements sold in t~sheet lots (4 feet per sheet).

P

_ w-e-m....-

Technics®

Active subwoofer system

Operating Instructions

Model No. SB'AS 100

I SPEAKER SECTION
Type

Speaker
Woofer
impedance
input power
Music
DIN
Sound pressure level

Frequency range

I AMPLIFIER SECTION

Continuous power output
20-200 Hz (Ti-lD 1%)

Phase switching

input sensitivityllmpedance

Low pass filter

I GENERAL

Power supply

Power consumption
Dimensions (w X H K D)

1 way 2 speaker system
Bass-reflex type

14 cmts- 2") cone type X 2
1 $2

200 w

100 w

82 (IBM (1.0 m)

40 - 380 Hz (at -16 dB)
45 - 310 Hz (at -10 dB}

100 W (1 ti]
NORMAUREVE FiSE
335 mVrts kn
50-200 Hz Variable

AC 120 V. 60 H2

40 W

(231 " 450 X 350) mm

{s-arsz" x 17-2352" x 13-25332")
9.0 kg(19.8 lb.)

Specifications are subject to change without notice.
Mass and dimensions are approximate.

' Product service

Product information

train Canada.

(www.mnasontcca)

fl-

Do not attempt to remove the cover(s) or repair the unit yourself.
Refer servicing to qualified personnel only.

For product service. product information or assistance with prod-
uct operation, refer to the servicenter directory.

For detailed Instructions, contact an authorized serviccnter
in the U.S.A. and Panasonic Canada inc. Customer Care Cen-

In the U.S.A. 1400-2114262 or web site
(http://www.panasonic.com)
In Canada 905-624-5505 or web site

RQT5460-P

Page 2

Center speaker Surround speakers
(not included) TV (not included) (not included)

Active
subwoofer

53-AS1 00 Front speakers

(not included)

Monaural connection cable

(included) 6 .13;
Household AC outlet

(010) (AC 120V/60Hz)

O
m m AC power supply cord

. . . 1 (included)
Fiecerver (or amplifier)

(not included)

' ROTSBO

Positioning the speaker

fl Attach the rubber teat (included) to the speaker
Attach these rubber test to prevent vibration causing the speaker to
move or fall over.

B The diagram shows the basic positioning of each
speaker.
0 The subwooler can be placed in any position as long as it is at a
reasonable distance from the TV.
. Do not place any object on top of this unit.

If irregular coloring occurs on your television

this speaker is designed to be used close to a television. but the
picture may be attested with some televisions and set-up combina-
tions.

If this occurs. turn the television oil for about 30 minutes.

The television's demagnetizing function should correct the problem.
it it persists, move the speaker further away from the television.

Note:
Do not attach this speaker to walls or ceilings.

Protection circuitry

This unit incorporates speaker-protection circuits to prevent dam-
age caused by excessive input or abnormal signals. When excess
input is detected. the input is automatically interrupted.

I it sound is interrupted...

1. Reduce the volume level from the receiver or amplifier.

2. Check whether or not there is anything wrong with the equipment
used such as the sound source. or connections. if there is noth-
ing wrong. turn off the power.

3. Turn on the power once again.

I Alter the protection circuitry is reset...

Take care not to increase the receivers or amplifier's volume level

too much.

Other notes:

Be sure to reduce the volume on the receiver (or amplilier) when the
signal input exceeds the rated allowable input to avoid damage to
circuitry or other malfunctions.

- Connections

Connecting to receiver (or amplifier)

Note:

. . Can be connected to a receiver (or amplifier) with a pin cord type

subwooler terminal.
- Before making the connections. switch OFF the power to the re-
ceiver (or amplifier).

Power connections
Connect AC power supply cord after all other cables and cords are
connected.

Note

1. Avoid placing in areas as follows:
0 in direct Sunlight
- Near heating appliances or other sources oi heat
0 Where there is high humidity
2. Never use alcohol, paint thinner. benzine or similar chemicals to
clean the unit. as they may damage the finish.
