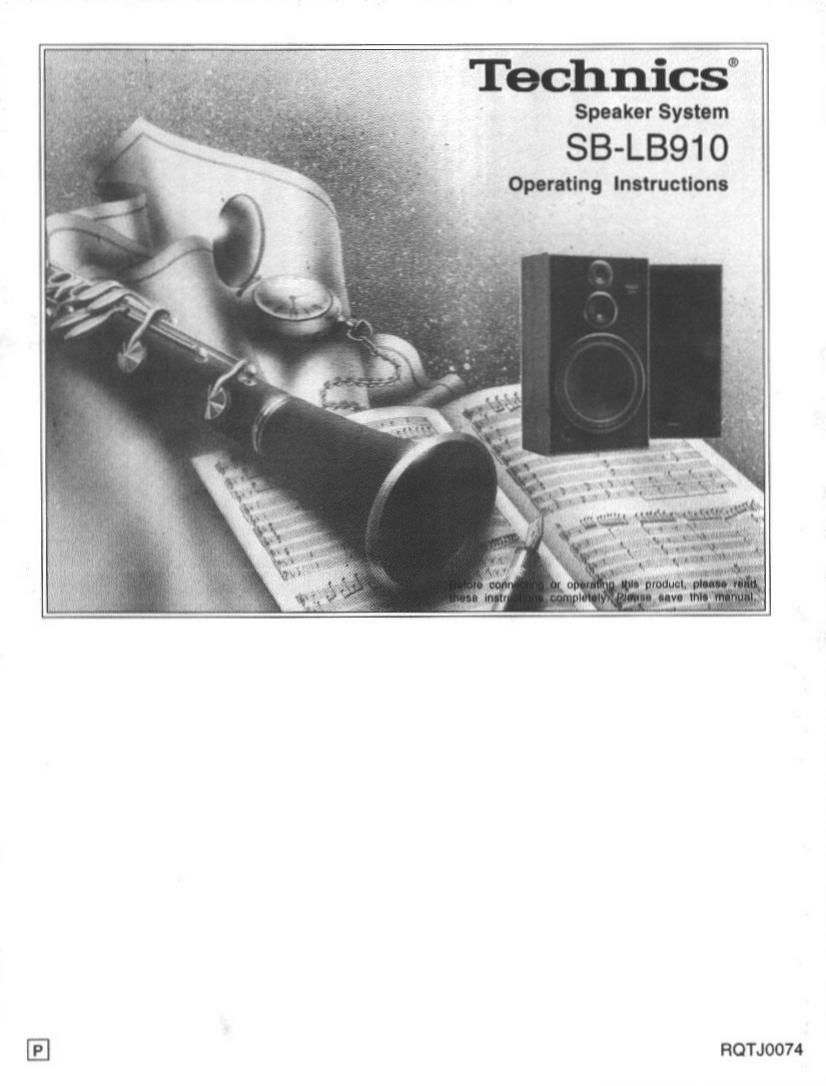

Technics SB LB910 Owners Manual

Page 2

Thank you for purchasing this Technics product.
For optimum performance and safety, please read
these instructions carefully.

The model number and serial number of this product can be found on the back of the unit; and the serial number either on the
back or the bottom Please note them in the space provided below and retain this booklet as a permanent record of your purchase
to aid identification in the event of theft.

MODEL NUMBER

SERIAL NUMBER

Installation

The sound reproduced by aspeaker system is easily influenced by such factors as room acoustics and the system's location
in the room. Before finally deciding where the speakers are to be placed. please read the following information carefully.
- The bass sound will be increased if the speakers are placed on the floor orcloseto awall due to the reflection of sound.

It is, therefore, possible to adjust the bass sound to some extent by adjusting the speakers distance from the wall and/
orfloor, '

- Undesirable resonance of sound reflection will occur if the speakers face a hard wall or window. Curtains or similar materials
can be used to prevent these reflections.

. To prevent possible acoustic feedback, the speaker systems should be kept awayfrom the turntable. This feedback (how-
ling) can result from vibrations from the speakers. The turntable should, therefore, never be placed on the same surface as

the speaker system. A thick piece of felt or similar material can be used under the turntable to reduce howling. Closing the
turntables cover also reduces this problem.

Connecting the speaker system

Before connecting the speaker systems to the amplifier, please check the following:
- Be sure to switch OFF the power to the amplifier.
- Use with an amplifier having 89 or below impedance speaker terminals.

0 Be sure to only connect positive (4») wires to positive (+) terminals, and negative (--) wires to negative (-)
terminals.

Amplifier (not included)

RL

(9
SPEAKERS
e

H M (4») H H m H i

v YY r

Speaker connection cables (not included)
