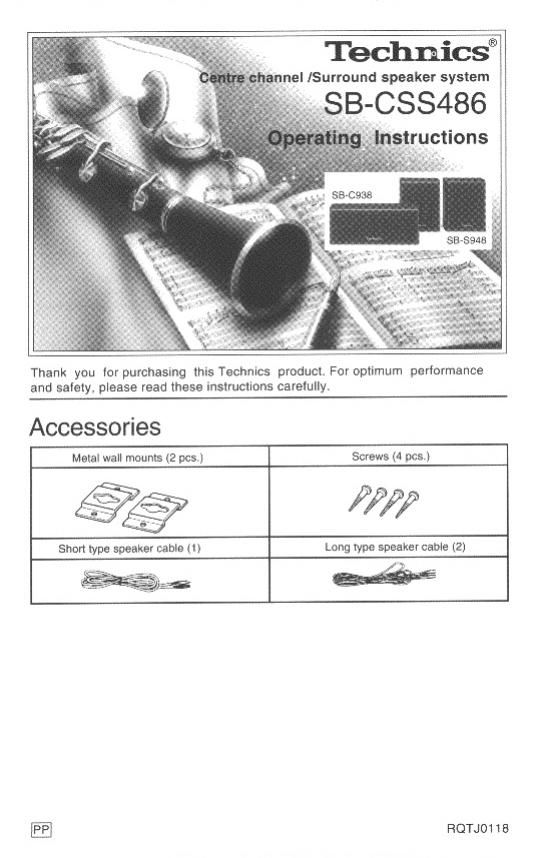

Technics SB CSS486 Owners Manual

Page 1

, J"anneal [Surround speaker system

Technicsg
38- 088486

Thank you for purchasing this Technics product. For optimum performance
and safely please read mesa inslruclions carefully.

Accessories

Metal wall mounls (2 pcs.)

Screws (4 pcs.)

f???

Long typo speaker cable (2]

E E-

BU

RQTJ01 1B

Page 2

Connections

Notes:

- Belore connections, switch OFF the power to the ampli-

tier.

-Use with an amplifier having 8 ohms impedance for
the centre speaker and 8 ohms impedance for the rear

speakers.

0 Be sure to connect only positive (+) wires to positive (+)
terminals. and negative (--) wires to negative (-) termi-

nals.

SPEAKERS
80 FIEAFI
R L

e®ec~

(-) (+)

Stereo amplifier
® (not included)

Connection ot speaker cables

6) 15mm

(19/32')
H Twist.
/ w /

© For se-ceaa,
53-5940

Note:

To prevent damage to circuitry,
never short circuit positive (+)
and negative (-) speaker wires

Speaker
cables _

(right)

Surround speakers
($35948)

Notes

. Be sure to reduce the volume level setting
when the signal input exceeds the rated
allowable input in order to avoid damage
to circuitry or other mallunctions.

2. Avoid locations such as described below:
- In direct sunlight.

- Near heating appliances or other sour-
ces ol heat.
- Where the humidity is high.

3. Never use alcohol, paint thinner. benzine
or similar chemicals to clean the unit as
they may damage the finish.

4. Do not touch the diaphragms. to do so
may cause distortion,

Centre channel speaker
(SB-C938)

Speaker impedance and allowed Input

Impedance Allowed input

Centre channel

speaker so 110 w (DIN)

Surround speakers 80 100 W (DIN)

Caution

The only amplifiers you should connect to your
speakers are those whose output in Dolby Pro
Logic does not exceed the above figures.

Using an amplifierstronger than that indicated
above, you risk blowing either the amp or your
speakers, moreover the possibility ol lire.
It equipment is damaged in any way or unex-
pected trouble occurs during playback,
unplug the system lrom its outlet and call a
service-man tor help
