Technics SB CD301 Owners Manual

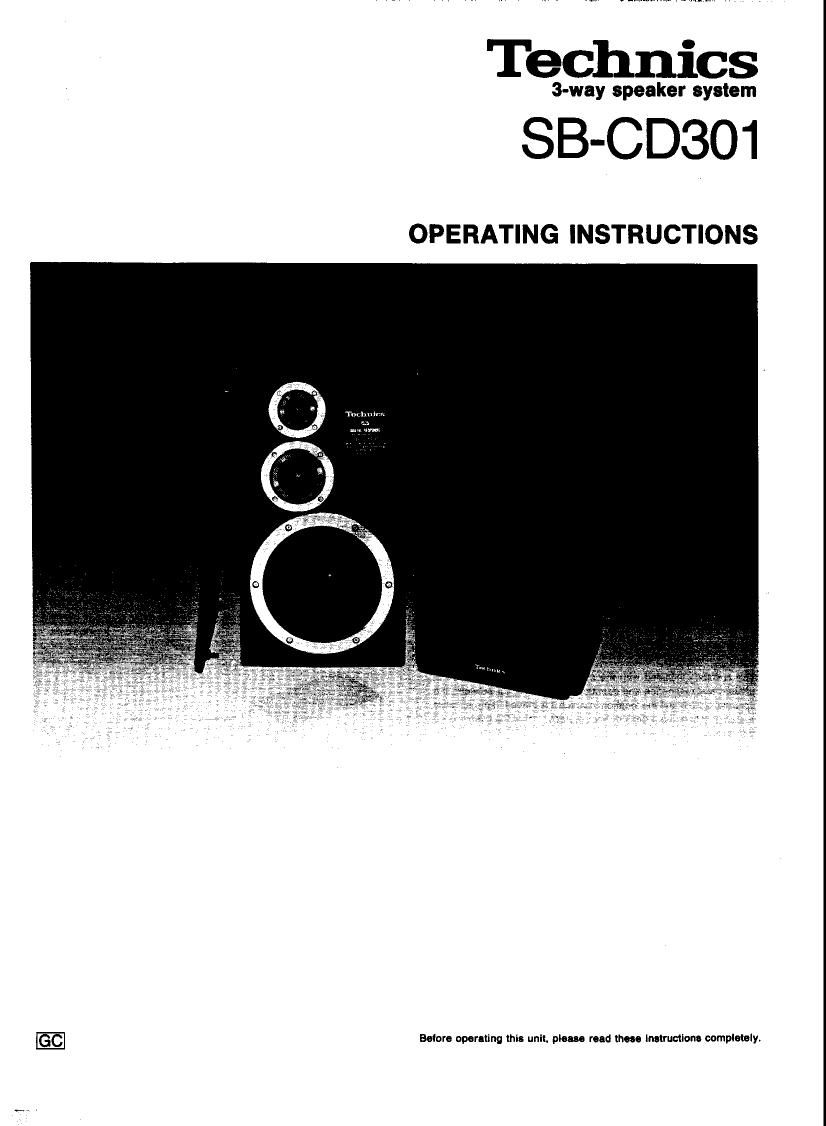

Page 1

Technics

3-way speaker system

SB-CD301

OPERATING INSTRUCTIONS

Before over-ting this unit. plows read than Instructions completely

Page 2

We want to thank you tor selecting this product and to
welcome you to the growing family of satisfied
Technics product owners around the world.

We feel certain you will get maximum enjoyment

irom this new addition to your home.

Please read these operating instructions carefully.
and be sure to keep them handy for convenient
reierence.

Placement for Better Aural Effect

I Use thick curtains or similar material.

This will prevent sound rellection and vibration resonance it the
speakers lace a solid wall or glass doors across the room.

I Keep magnetic tapes. clocks. etc. away.

It such items are placed on or near a speaker system. they might
become magnetized.

I The rear panel should tsce a wide, solid well.
For rich bass and a superior aural effect.

Connections

~ (S t?" m- WWW"

t the cushions

The cushions Included with the speaker system are designed to
prevent any resonance and damage that might occur between the
speaker system and the location in which it is placed. It the speaker
system is placed on a desk or floor surlace, install the cushions on
the bottom.

a

connections tetheamplltier

Notes:

0 Belore making the connections. be sure to switch OFF the power
to the ampliiier.

eUse with an amplitler with speaker terminals ol 8 n or lower
impedance

0&9 sure to connect the black speaker connection cord to the
negative terminal and the red speaker connection cord to the
positive terminal.

Red

Black

I The Technica emblem should be lacing
inward, toward the other speaker system.

I Place away lrom a turntable or disc player.

It a turntable is located on the same base or stand as a speaker
system. or near it. the vibration lrom the speaker system might
cause a high-pitched howling" sound.

It this occurs. it may help to use a cushioning material beneath the
speaker systems and/or the disc player or turntable.

I When placed beside a TV

Although this unit is designed to prevent color irregularity or color
deviation in TV pictures. such deviation may. depending on the
type at TV. occur.

it this happens, the problem might be corrected by switching OFF
the TV lor 15 to 30 minutes. The TV: own aalt-degauulng lunction
may clear up the problem when the TV is switched 0N again.

it it does not. a greater distance lrom the TV set is anggeeted.
Take care regarding placement. because TV color irregularity or
deviation may occur due to interaction with this unit it any device
that generates magnetism. such as a magnet. etc.. is placed
nearby.

Place on a solid and llrm base.
For unclouded bass and an overall clear tone quality.

Accessory
OCushicns . , .

(left)
Ampiilier (option)
Speaker L °§
terminals Egg
U A
+ T J

Speaker connection cords
