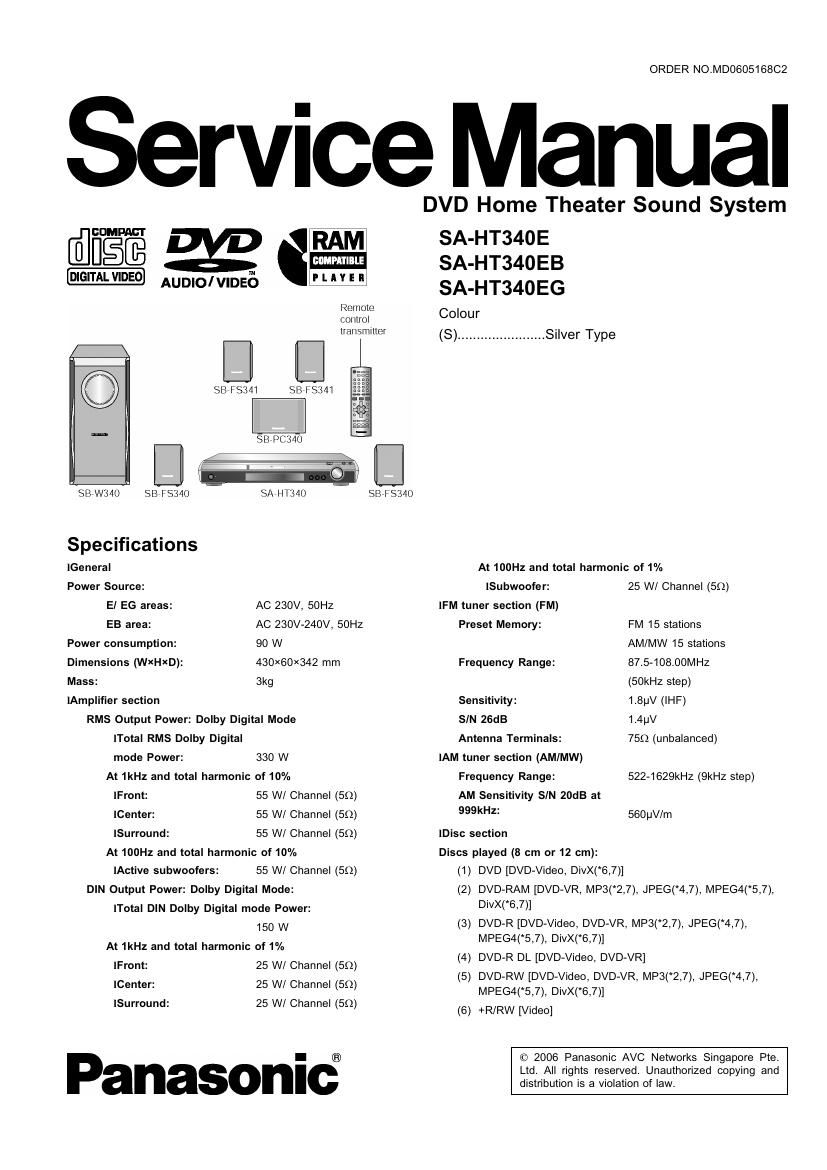

Technics SAHT 340E 340EB 340 EG Service Manual

Page 2

SA-HT3ADE l SA-HTMOEB I SA-HT340EG

(7) +R DL [Video]

(8) co, CD»R/RW [CD-DA, Video co, svco('1), MP3(2,7),
WMA("3,7), JPEG(4,7), MPEG4(5,7), DivX (6,7), HighMAT
Level 2 (Audio and Image)]

1 Conforming to |E062107

2 MPEG-1 Layer 3, MPEG-2 Layer 3

3 Windows Media Audio Ver.9.0 L3
lNot compatible with Multiple Bit Rate (MBR)

4 Exit Ver 2.1 JPEG Baseline files
lPicture resolution: between 160 x 120 and 6144 x 4096
pixels (Sub sampling is 4:0:0, 4:20, 4:222, 4:424). Extremely
long and narrow pictures may not be displayed.

5 MPEG4 data recorded with Panasonic SD multi cameras or
DVD video recorders.
lConforming to SD VIDEO specifications (ASF standard)/
MPEG4 (Simple Profile) video system/G726 audio system.

6 Plays all versions of DivX® video (including DivX®6) with
standard playback of DivX® media files. Certified to the DivX
Home Theater Profile.
lGMC (Global Motion Compensation) is not supported.

'7 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture
and video contents and 400 groups.

Pick up:
Wavelength:
lCD: 785nm
lDVD: 662nm
Laser power:
lCD: CLASS 1M
lDVD: CLASS 1

Audio output (DISC):
Number of channels:

Audio performance:
Frequency response:
DVD (linear audio):

CD-Audio:
SIN ratio:
CD-Audio:
Dynamic range:
DVD (linear audio):
CD-Audio:

Total harmonic distortion:

CD-Audio:
lVideo section
Video system:
Signal system:

Composite video output:

Output level:

Terminal:
S-video output:

Y output level:

C output level:

5.1 ch (FL, FR, 0, SL, SR,
SW)

4 Hz-22 kHz (48 kHz sampling)
4 Hz-44 kHz (96 kHz sampling)
4 H220 kHz

105 dB

95 dB
95 dB

0.005 %

PAL 625/50, PAL 525/60,
NTSC

1 Vp»p (75 Q)
Scart jack (1 system)

1 Vp»p (75 9)
PAL; 0.3Vp-p (75o)
NTSC; 0.286 Vp-p (75 (2)

Terminal
RGB video output:
R output level:

Scart jack (1 system)

0.7 Vp-p (75 Q)
0.7 Vp-p (75 o)
0.7 Vp»p (75 o)
Scart jack (1 system)

G output level:
B output level:
Terminal:
Power consumption in standby mode:
approx 1W
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

Solder:

This model uses lead free solder (PbF).
Mechanism:

This model uses DLZSU (Single tray) mechanism.
Power Supply:

This model uses Switching Mode Power Supply (SMPS)
Module for power-up unit.

System SC-HT34OE SC-HT34OEB SC-HT34DEG

Main unit SA-HTSAOE SA-HT340EB SA-HT34OEG

Speakersystem SBVHT34OE SBVHT34OE SBVHT340E

Speaker system SB-HT340E
Front speakers SBVFSIMOEM
Center speaker 33pm);

Surround speakers 33,):5341);3

Active su bwoofer SB-W340E H

Refer to original service manual for 1, 2, 3, *4.
