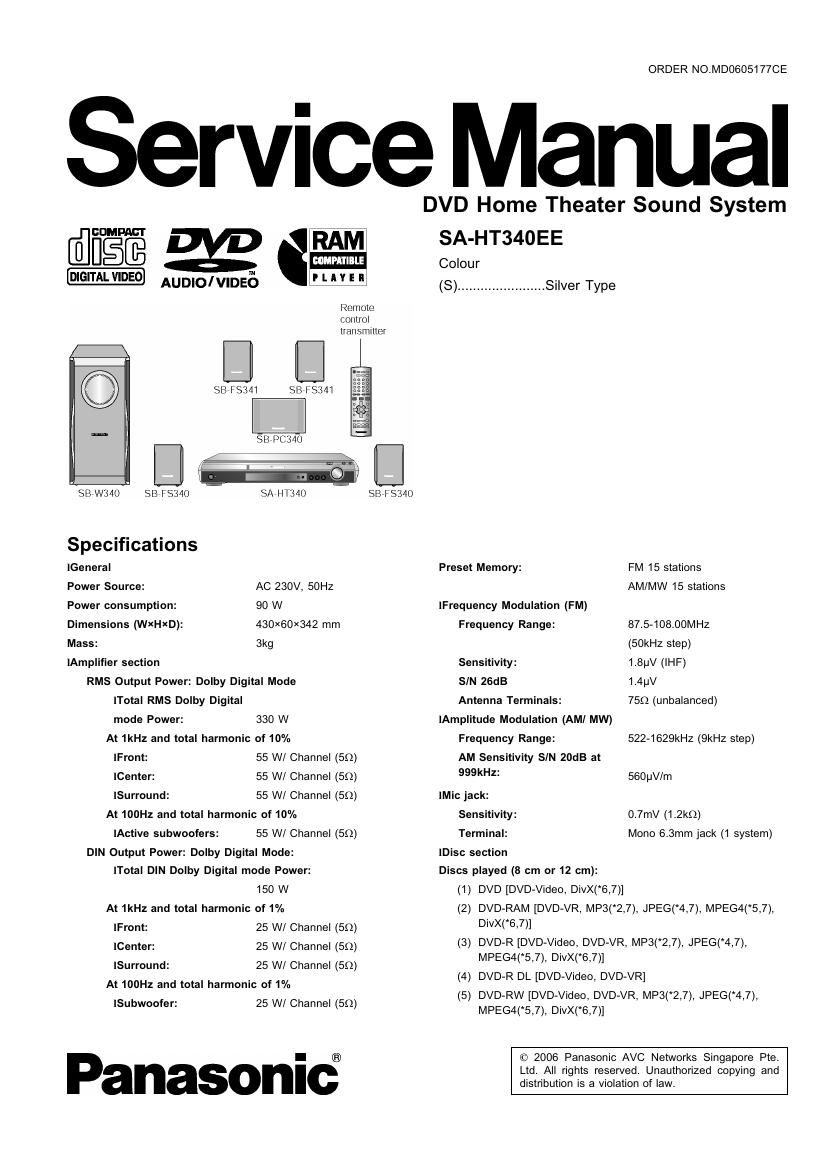

Technics SAHT 340 EE Service Manual

Page 2

SA-HT3AD EE

§3§

1
2
3

4

5

6

'7

+R/RW [Video]
+R DL [Video]

CD, CD»R/RW [CD-DA, Video CD, SVCD(1), MP3(2,7),
WMA(3,7), JPEG(4,7), MPEG4(5,7), DivX ('57), HighMAT
Level 2 (Audio and Image)]

Conforming to IEC62107

MPEG-1 Layer 3, MPEG-2 Layer 3

Windows Media Audio Ver.9.0 L3

lNot compatible with Multiple Bit Rate (MBR)

Exif Ver 2.1 JPEG Baseline files

lPicture resolution: between 160 x 120 and 6144 x 4096
pixels (Sub sampling is 4:0:0, 4:2:0, 4:2:2, 4:424). Extremely
long and narrow pictures may not be displayed.

MPEG4 data recorded with Panasonic SD multi cameras or
DVD video recorders.

lConforming to SD VIDEO specifications (ASF standard)/
MPEG4 (Simple Profile) video system/G726 audio system.
Plays all versions of DivX® video (including DivX®6) with
standard playback of DivX® media files. Certified to the DivX
Home Theater Profile.

lGMC (Global Motion Compensation) is not supported.

The total combined maximum number of recognizable audio,

C output level:

Terminal

PAL; 0.3Vp-p (759)
NTSC; 0.286 Vp-p (75 n)
S terminal (1 system)
Scart jack (1 system)

Component video output: [NTSC: 430pl430i, PAL:576pI576i]

Y output level:

PI3 output level:
PR output level:

Terminal:

RGB video output:
R output level:
G output level:
B output level:
Terminal:

1 Vp-p (75 o)
0.7 Vp-p (75 o)
0.7 Vp-p (75 9)

Pin jack (Y: green, PE: blue,
PR: red) (1 system)

0.7 Vp-p (75 n)
0.7 Vp»p (75 o)
0.7 Vp»p (75 o)
Scart jack (1 system)

Power consumption in standby mode:

Note:

approx 1W

1. Specifications are subject to change without notice.

Mass and dimensions are approximate.

picture and video contents and groups: 4000 audio, picture
and video contents and 400 groups.

Pick up:
Wavelength:
lCD:
lDVD:
Laser power:
lCD:
lDVD:
Audio output (DISC):
Number of channels:

Audio performance:
Frequency response:
DVD (linear audio):

CD-Audio:

SIN ratio:
CD-Audio:

Dynamic range:
DVD (linear audio):
CD-Audio:

Total harmonic distortion:
CD-Audio:

lVideo section

Video system:

Signal system:

Composite video output:
Output level:
Terminal:

S-video output:
Y output level:

785nm
662nm

CLASS 1M
CLASS 1

5.1 ch (FL, FR, C, SL, SR,

SW)

4 Hz-22 kHz (48 kHz sampling)
4 Hz-44 kHz (96 kHz sampling)
4 H120 kHz

105 dB

95 dB
95 dB

0.005 %

PAL 625/50, PAL 525/60,
NTSC

1 Vp»p (75 9)
Pin jack (1 system)

Scart jack (1 system)

1 Vp»p (75 Q)

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

Solder:

This model uses lead free solder (PbF).
Mechanism:

This model uses DLZSU (Single tray) mechanism.
Power Supply:

This model uses Switching Mode Power Supply (SMPS)
Module for power»up unit.

System SC-HT340EE
Main unit SA-HT340EE
Speaker system SBeHT34OE
Speaker system SB-HT340E
Front speakers SBeFS34OEH

Center speaker SB»PC340E*?

Surround speakers SB-FS341 E3

Active subwoofer SBeWS 40EM

Refer to the original service manual for "1, 2, 3, 4.
