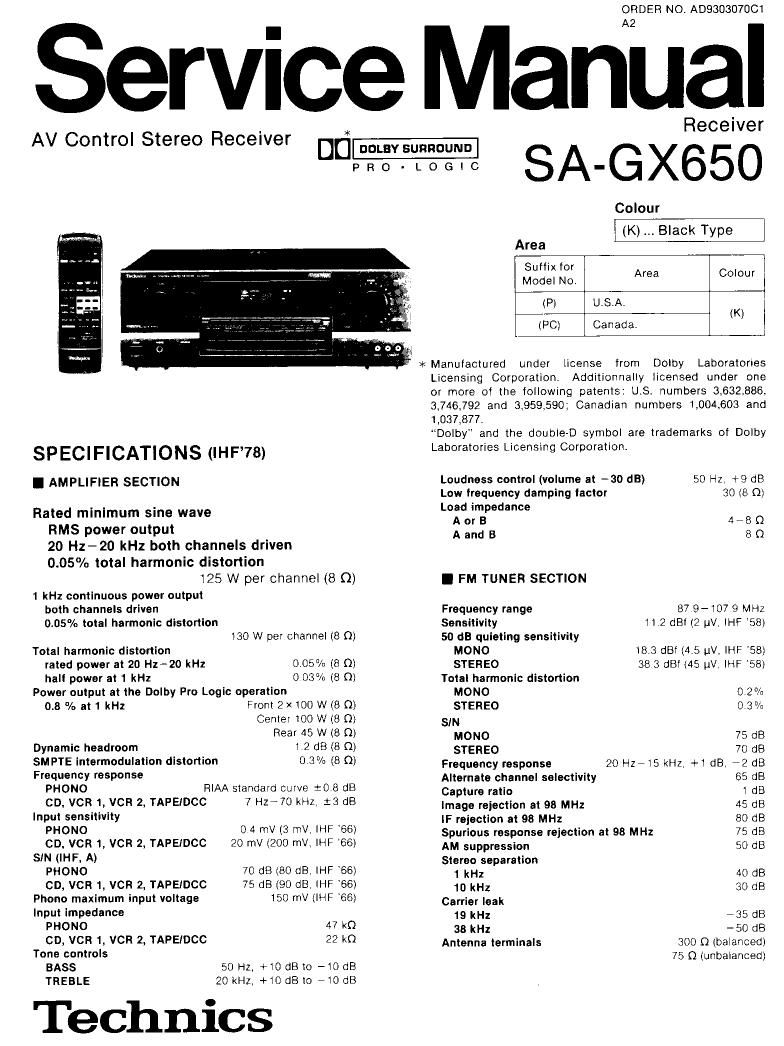

Technics SAGX 650 Service Manual
This is the 48 pages manual for Technics SAGX 650 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Technics SAGX 650 Service Manual (Ocr-read)
Page 2
I DISASSEMBLY INSTRUCTIONS
ATTENTION SERVICER
Some chassis components may have sharp edges. Be careful when disassembling and servicing.
92" Removal of the cabinet ReféNo. Removal of the front panel assy
Procedure Procedure
1 1 -> 2
CN352
CN351
0 Remove the 6 screws(0~ 8)-
ReféNo. Removal of the volume P.C.B. 1. Remove the 2 flat cables(CN351. CN352).
Procedure
1 -> 2 -> 3
Volume knob
Nut Front panel
P.C.B. 55
1. Pull out the volume knob.
2. Remove the nut.
3. Remove the 1 screw(0). 2. Remove the 3 screws(0~9).
4. Remove the volume P.C.B. in the direction of arrow. 3. Remove the front panel assy in the direction of arrow.
Ream" Removal of the operation P.C.B.
Procedure
1 -> 2 -> 3 ->4
Power switch
P.C. B.
Tuning knob
Balance knob Q Q Headphones
Bass knob Treble knob Jack P.C.B.
1. Pull out the tuning knob, balance knob, bass knob and 3. Remove the 13 screws(o~ 0 ).
treble knob.
2. Remove the nut.
712,
