Technics SAEX 500 SAEX 700 Owners Manual

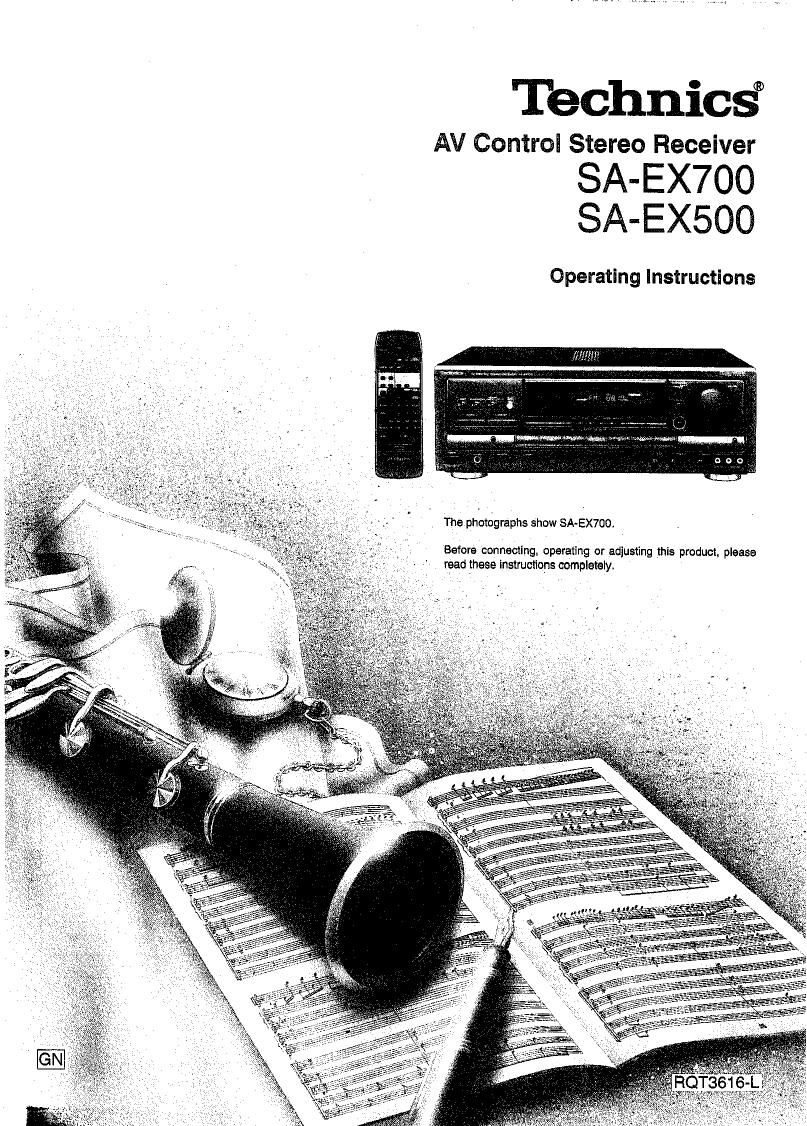

Page 1

Technics

AV Control Stereo Receiver

SA-EX7OO
SA-EXSOO

Operating Instructions

The photegraphs show SA-EX700.

Before connecting, operating or adjusting this product, please
read these Instructions completely,

Page 2

£1

Dear Customer

Thank you for purchasing this Technics product.
For optimum performance and safety, please read
these instructions carefully.

These operating instructions are applicable to models
SA-EX700 and SA-EX500.

These operating instructions, however, are intended primarily for
model SA~EX700.

THIS TUNER/RECEIVER IS CAPABLE OF RECEIVING THE
NEW AM STEREO BROADCASTS FROM THE AM BAND
RADIO STATIONS. HOWEVER LIKE MANY TUNERS AND
RECEIVERS CURRENTLY AVAILABLE ON THE MARKET IT
WILL REPRODUCE THIS AM STEREO SIGNAL ONLY IN AM
MONO, WHICH. IN EFFECT, IS OF NO LESSER QUALITY
THAN YOUR EXISTING AM MONO TUNER/RECEIVER

Table of contents

Accessories ..............................................................................
Suggestions for safety
Front panel controls
Equipment connections
Antenna connections
Speaker connections ......................................................... 1

Basic operations
To adjust the tone quality
To adjust the sound balance
To mute the sound level ..
To emphasize low frequency soun

..................................................
Switching between the TV" terminals rear side
and VCR 2" terminals (front side) mt]
To listen through headphones .......
Listening to radio broadcasts
Sequential tuning
Preset tuning .....
Direct access tuning .
Enjoying sound with DOLBY PRO LOGIC
SURROUND
3 STEREO.
Setting the center mode
Adjusting speaker output level .....................
Adjusting the delay time
Enjoying with SURROUND or 3 STEREO.
Enjoying sound with SFC
Adjusting field of sound
Making a recording ..
Recording on the tape dec
Recording on the VCR (VCR 1
Sleep timer function
About the HELP function

Troubleshooting guide .....
Technical specifications.

Please check and identify the supplied acces-
sories

E] AC power supply cord .................................................. 1 pc.

|:I AM loop antenna set (RSA0010)
0 AM loop antenna ..........
I AM loop antenna holde
0 Screw ...........................

For details on remote control transmitter operation, refer to How
to use the remote control transmitter in the separate booklet.

1: Batteries ..................................................................... 2 pcs.

@:3
@-

Page 14

Sequential tuning

You can use the tuning buttons to tune-in radio broadcasts.

l FM AUTO/MONO

1 ? Press TUNER.

2 amp Press BAND to select FM" or
i "AM".

Selected band

3 v .. prééswmt5"iili'.2'i3"iiié"""
*deslred broadcast.

If either button is held down for an
instant until the frequency begins to
scroll. the broadcast stations can be

tuned in automatically when a broadcast
station is found.

Tuning may stop automatically if any
jamming is encountered.

Lights up when tuned

Lights up when an FM stereo broadcast is received

cum-z LOOK stance

Hi 5e: :u...
|
Frequency display

Preset tuning

Presetting radio stations into the memory channels of this unit
makes selecting stations easy and simple.

- Before presetting

How many broadcast stations can be preset?
A total of 30 FM and AM stations can be preset.

How is presettlng done?

The two following methods are available.

I Automatic memory presening
Automatic memory presetting allows this unit to automatically
search for broadcast stations and then preset them into memory.
With this function, searching proceeds from the frequency cur-
rently being displayed and continues to highest frequency, and
broadcast stations are preset in the order in which they are
located.
With this method, the channels that can be preset into the
memory are set as follows for different bands.

Channel

Til 1W

<-AM---->

FM

For example, after presetting the FM band, if the AM band la
preset, the previous presettlngs in the sections In the above Illus-
tration which overlap will be erased and the subsequent settings
will be preset. Therefore. the FM band stations will be kept for
channels 1-20 and the AM band stations will be preset to chan-
nels 21-30.

0 Manual memory presattlng
The desired broadcast stations can be preset into the desired
channels by the user.
This can also be used as a method for changing selected
broadcast stations that were preset in Automatic memory pre-
setting".

It a new broadcast station is preset into a channel, the setting
for the broadcast station which was previously entered In that
channel will be automatically erased.

If noise is excessive In the FM stereo mode
Press FM AUTO/MONO. (The "STEREO" indication will switch off.)

WARE LDEK 0N0
_ II II I 1:: r -I
IL! I I. Li. I I m.

|
Lights up

The broadcast will be moneurai, but noise will be reduced. if the
button is pressed once more, the stereo mode will be resumed.

To change the AM frequency step

Press and hold BAND for about 3 seconds when AM band is select-
ed.

(The frequency step changes to 10 kHz per step.)

To return to the previous step. press and hold BAND for about 3
seconds again.

Page 20

Enjoying with SURROUND or
3 STEREO

OFF/ON 3 1

. 2 Stanthedeslred source. ,

When employing SURROUND, use soft-
ware recorded in Dolby Surround.

3 } Press an PRO LOGIC to turn

on the Dolby Pro Logic sys-
tems and select the desired
mode.

To turn off the Dolby Pro Logic systems
Press OFF/ON.
Press once again to turn it on.

The SFC function gives presence and spread thereby enhancing
and enriching the music or movie.

Read the below explanations in order to better understand how to
make your selection.

HALL

This mode imparts a reflection and spread Which will make you feel
as if you are in a large concert hall.

CLUB

Like a jazz club. this mode provides an exciting and intimate atmos
phere. lt simulates the soundtield of a relatively small room having a
low ceiling and hard reflective surfaces. for a live sound with
enhanced presence to bring the performers up close.

LIVE
Primarily for vocal pieces, this mode adds gloss to the vocals and
you'll feel as though you were hearing a live stage performance.

THEATER

You can clearly perceive the directions and source of the movie.
Real ambience of sound can also be recreated naturally using this
mode.

THEATER mode can be used with stereo sources not encoded with
DOLBY SURROUND.

When using Dolby surround encoded source materials, select the
DOLBY PRO LOGIC SURROUND.

SIMULATED

Choose this mode If little or no sound will be heard from the sur-
round speakers.

You can feel as it you were in a more expanded space adding to
the actual sound from the source.

This mode also adds effect to monaural sources by outputting the
sound from surround speakers.

You can adjust center speaker volume only in the THEATER mode.

The center speaker is not used in the HALL, and SIMULATED
modes.

Page 21

THEATER
SIMULATED
Selected SFC mode

2 I'"""W"'"W"m'"stat-itfiéfiééiiéfiééfiréé."""W"

3 ? Select the deslred SFC mode.

HALL CLUB LIVE THEATERSIWLATED

0mm To turn off the SFC function
Press OFF/ON.
Press once again to turn it on.

Adjusting field of sound

With this unit, you can adjust center and surround speakers volume
while listening to a source.

You can also adjust delay time.

Tb adjust center and surround speakers
volume

(Only available from the remote control.)

Center speaker volume can be adjusted only in the THEATER
mode.

«scarves

DEED " (j

630 w. m. 06);
"8&3

4.1+

NM

"cH SELECT Press ci-t SELECT to select the
center or surround speakers.

2 -OHLEVEL+ magenta/EL(_)3i'(;£)"i$""'
Q C) adjust the output level.

V)

1b adjust the delay time
a... Press DELAY TIME to set

the sultable time.

When the button is pressed. the
current delay time is displayed,
pressing it again changes the delay
time.

The delay time increments are dif-
ferent depending on the SFC
mode.

W-

21
