Technics SAEH 760 Service Manual

Page 1

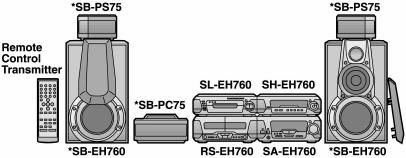

Remote
Control
Transmitter

Page 2

(For United Kingdom)

(EB" area code model only)
For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin
mains plug for your safety and convenience

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that
the replacement fuse has a rating of 5-ampere and that it
is approved by ASTA or BSI to 881 362.

Check for the ASTA mark ® or the BSI mark @ on the
body of the fuse.

If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until
a replacement cover is obtained.

A replacement fuse cover can be purchased from your
local dealer.

CAUTION!

IF THE FI'I'I'ED MOULDED PLUG IS UNSUITABLE
FOR THE SOCKET OUTLET IN YOUR HOME THEN
THE FUSE SHOULD BE REMOVED AND THE PLUG
CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED INTO
ANY 13-AMPERE SOCKET.

If a new plug is to be fitted please observe the wiring
code as shown below.
If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance
with the following code:

Blue: Neutral, Brown: Live.

As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:

The wire which is coloured Blue must be connected to
the terminal which is marked with the letter N or coloured
Black or Blue.

The wire which is coloured Brown must be connected to
the terminal which is marked with the letter L or coloured
Brown or Red.

WARNING: DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E, BY THE EARTH SYMBOL J7; OR
COLOURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF-KEEP DRY.

Before use
Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC
mains plug (figures A and B). Confirm the AC mains plug
fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

Figure A

Figure B

2. Replace the fuse and close or attach the fuse cover.

Figure A

Fuse

7 \ / (5 ampere)

Figure B

Fuse

% (5 ampere)
