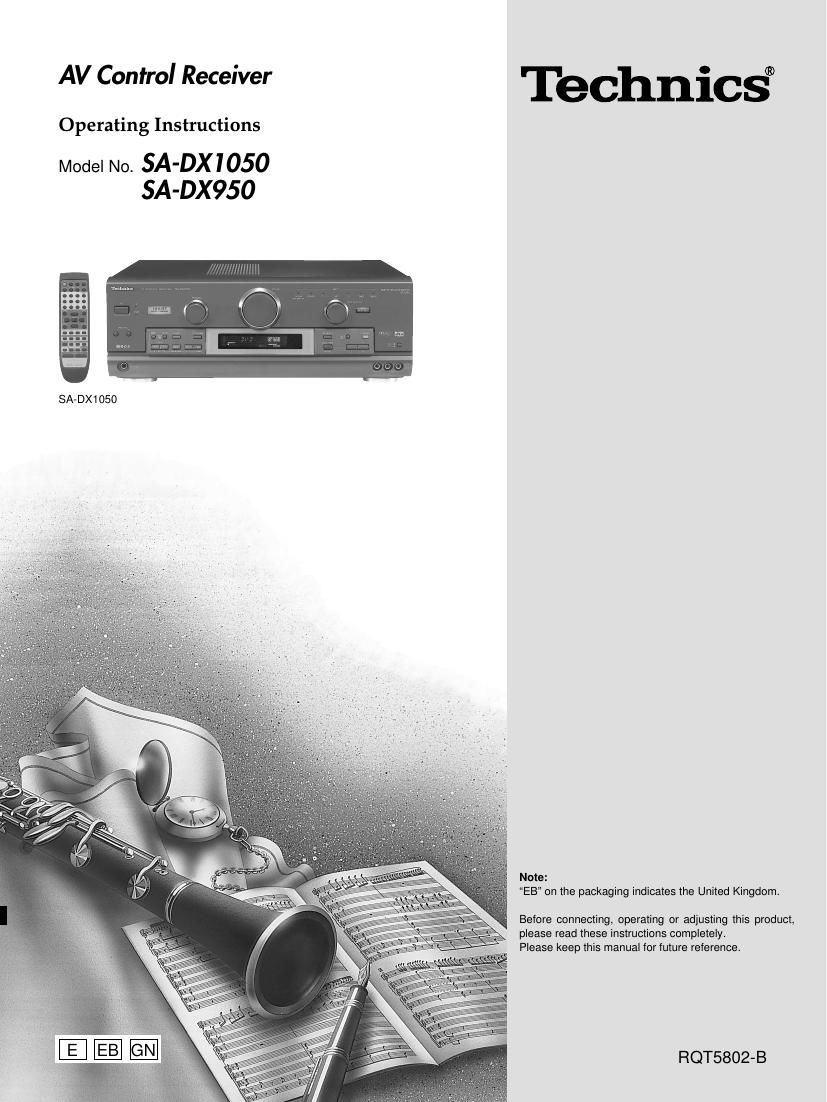

Technics SADX 950 Owners Manual
This is the 32 pages manual for Technics SADX 950 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Technics SADX 950 Owners Manual (Ocr-read)
Page 1
The radio ..................................................................................... 22 Manual tuning ..............................................................................22 Preset tuning ...............................................................................23 RDS broadcasts ....................................... 24 To display RDS information .........................................................24 PTY search ..................................................................................24 EON tuning ..................................................................................25 PTY displays................................................................................25 Only for Europe 2 RQT5802 Dear customerThank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Table of contents These operating instructions are applicable to models SA- DX1050 and SA-DX950, however, are intended primarily for model SA-DX1050. Model SA-DX1050 is only for Europe. CAUTIONDo not place anything on top of this unit or block the heat radiation vents in any way. In particular, do not place tape decks or CD/DVD players on this unit as heat radiated from it can damage your software. NO Before use Supplied accessories ................................................................ 3 Safety precautions ..................................................................... 3 Caution for AC Mains Lead ..................................................... 4 Control reference guide ........................................................... 5 Operations DSP sound modes ................................................................... 16 STEREO mode ............................................................................16 SURROUND mode ......................................................................16 SFC modes..................................................................................17 Enjoying the sounds ............................................................... 18 Adjusting the tone and balance ...................................................20 Using the VCR 2 terminals ..........................................................20 Using headphones.......................................................................20 Muting the volume .......................................................................21 Adjusting the subwoofer level ......................................................21 Using the TAPE MONITOR .........................................................21 Connections Connections ................................................................................ 6 Connecting video equipment .........................................................6 Connecting audio equipment .........................................................7 Connecting digital equipment ........................................................7 Antenna connections .....................................................................8 Connecting the AC mains lead and other information ...................9 Speaker connections .............................................................. 10 Placement of speakers ................................................................10 Connecting speakers ...................................................................10 Preparations Customizing your receiver .................................................... 12 Basic steps ..................................................................................13 Adjusting speaker output level ............................................ 15 Radio functions Reference Making a recording .................................................................. 26 Timer function ........................................................................... 27 The HELP function ................................................................... 28 Maintenance .............................................................................. 28 Troubleshooting guide ........................................................... 29 Specifications ........................................................................... 30 Enjoying surround sound Pages Connect your equipment 6–9 Position and connect the speakers 10–11 Change the settings 12–13 Adjust speaker output level 15 Sit back and enjoy the experience 18
Page 2
3 RQT5802 Before use Please check and identify the supplied accessories. AC mains lead ...................................................................1 AM loop antenna set (RSA0012) .....................................1 (AM loop antenna, antenna holder, screw) Refer to the separate booklet, Remote Control, for remote control operation details. Use the numbers indicated in parentheses when asking for replacement parts. FM indoor antenna (RSA0007-L) .....................................1 Batteries ............................................................................2 Remote control .................................................................1 Safety precautions Placement Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the units service life. Do not place heavy items on the unit. Voltage Do not use high voltage power sources. This can overload the unit and cause a fire. Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other place where DC is used. AC mains lead protection Ensure the AC mains lead is connected correctly and not damaged. Poor connection and lead damage can cause fire or electric shock. Do not pull, bend, or place heavy items on the lead. Grasp the plug firmly when unplugging the lead. Pulling the AC mains lead can cause electric shock. Do not handle the plug with wet hands. This can cause electric shock. Foreign matter Do not let metal objects fall inside the unit. This can cause electric shock or malfunction. Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer. Do not spray insecticides onto or into the unit. They contain flammable gases which can ignite if sprayed into the unit. Service Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these operating instructions occurs, disconnect the AC mains lead and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualified persons. Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time. Antenna plug (SJP9009) ..................................................1 (Only for the United Kingdom) Antenna plug (RFE0014) ..................................................1 (Only for Australia and New Zealand) For the United Kingdom (VJA0733) For Continental Europe (RJA0019-2K) For Australia and New Zealand (RJA0035-X) Supplied accessories SA-DX950 for Europe (EUR7702030) SA-DX1050 (EUR7702KC0) SA-DX950 for Australia and New Zealand (EUR7702040)
Page 13
Customizing your receiver 14 RQT5802 For front speakers with an impedance under 6 Ω Turn LOW IMP on if even one of your speakers has an impedance under 6 Ω. Press and hold [A] or [B] until LOW IMP lights up on the display. Press and hold down again to cancel LOW IMP. Note that when LOW IMP is on, SPEAKERS A and B cannot be used at the same time. SPEAKERS A, B SPEAKERS AB LOW IMPSPEAKERSA
