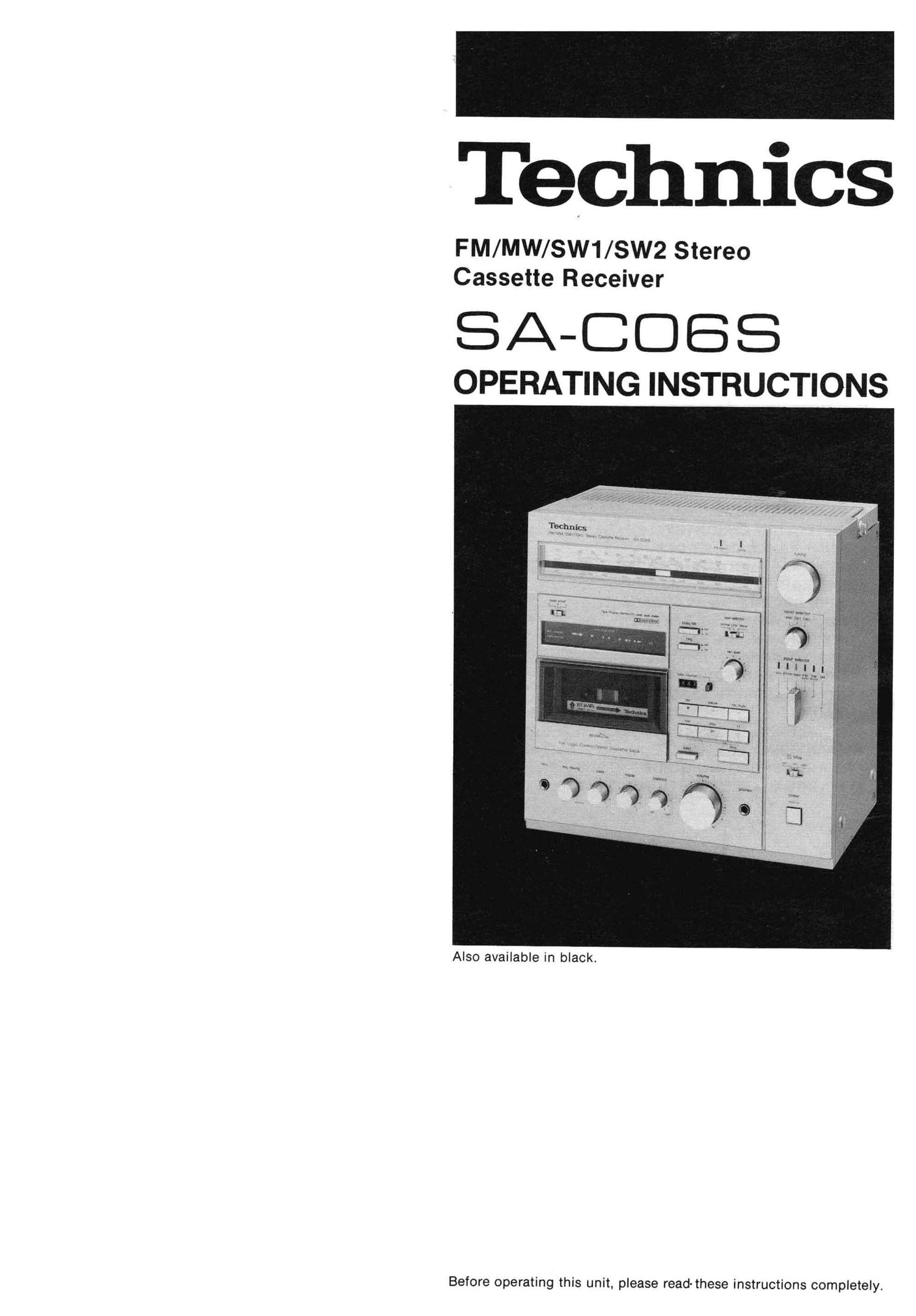

Technics SAC 06 S Service Manual

Page 1

Technlcs

FM/MW/SW1/SW2 Stereo
Cassette Receiver

SA-CDBS

OPERATING INSTRUCTIONS

.wsckmwyu H». w

48}? Mam

w min-3:95.40 '

Also available in black.

Before operating this unit, please read- these instructions completely.

Page 2

We want to thank you for selecting this product and
to welcome you to the growing family Of satisfied
Technics product owners around the world.

We feel certain you will get maximum enjoyment
from this new addition to your home.

Please read these operating instructions carefully,
and be sure to keep them handy for convenient
reference.

oBEFORE USING THIS UNIT ..................... 2
MAINTENANCE OF EXTERNAL SURFACES ..... 2
oACCESSORIES ................................. 2
oFOR SAFE USE OF THIS UNIT .................. 2
oSPEAKER ATTACHMENT ....................... 4
oPROTECTION CIRCUITRY ...................... 4
oFRONT PANEL CONTROLS

AND THEIR FUNCTIONS ....................... 5
oRECORDING ................................... 8
oTIMER RECORDING/PLAYBACK ................ 9
oFOR AUTOMATIC SELECTION

OF MUSIC ON THE TAPE ....................... 1o
oTAPE-TO-TAPE RECORDING ................... 11
oFOR BEST RECORDING RESULTS .............. 11
oABOUT CASSETTE TAPES ..................... 11
oHEAD CARE .................................... 12
oFM ANTENNA .................................. 12
oAM ANTENNA .................................. 13
oTROUBLESHOOTING GUIDE ................... 14
oTECHNICAL SPECIFICATIONS ................. 16

Use a minus (-) screwdriver to set the voltage selector (on the
bottom panel) to the voltage setting for the area in which the unit
will be used.

Note that this unit will be seriously damaged if this setting is not
made correctly. (There is no voltage selector for some
countries; the correct voltage is already set.)

To clean, use a soft dry cloth.

If the surfaces are extremely dirty, use a soft cloth, dipped into a
soap and water solution or a weak detergent solution.

Wring the cloth well before wiping the unit.

Wipe once again with a soft dry cloth.

Never use alcohol, paint thinner, or benzine, nor a chemically
treated Cloth to clean this unit.

Such chemicals may damage the finish of your unit.

V?- b'mghhpufl
-z_ -~~«.".r.
--.,;_---v.finml m
o».-.<
H: MJ.*'-A1.-.~v
"mam. mad

- «x a...

o Demonstration tape ................................... 1
0 Soft Case ............................................. 1

I Use a standard electrical AC wall outlet

1 . Use from an AC power source of high voltage, such as for air
conditioners, is very dangerous.
Be extremely careful not to make a connection tO the elec-
trical outlet for a large air conditioner or central-heating unit
which uses high voltage, because there is the possibility of
fire.

2. A DC power source cannot be used.
Be sure to Check the power source carefully. especially on a
ship or other place where DC is used.
