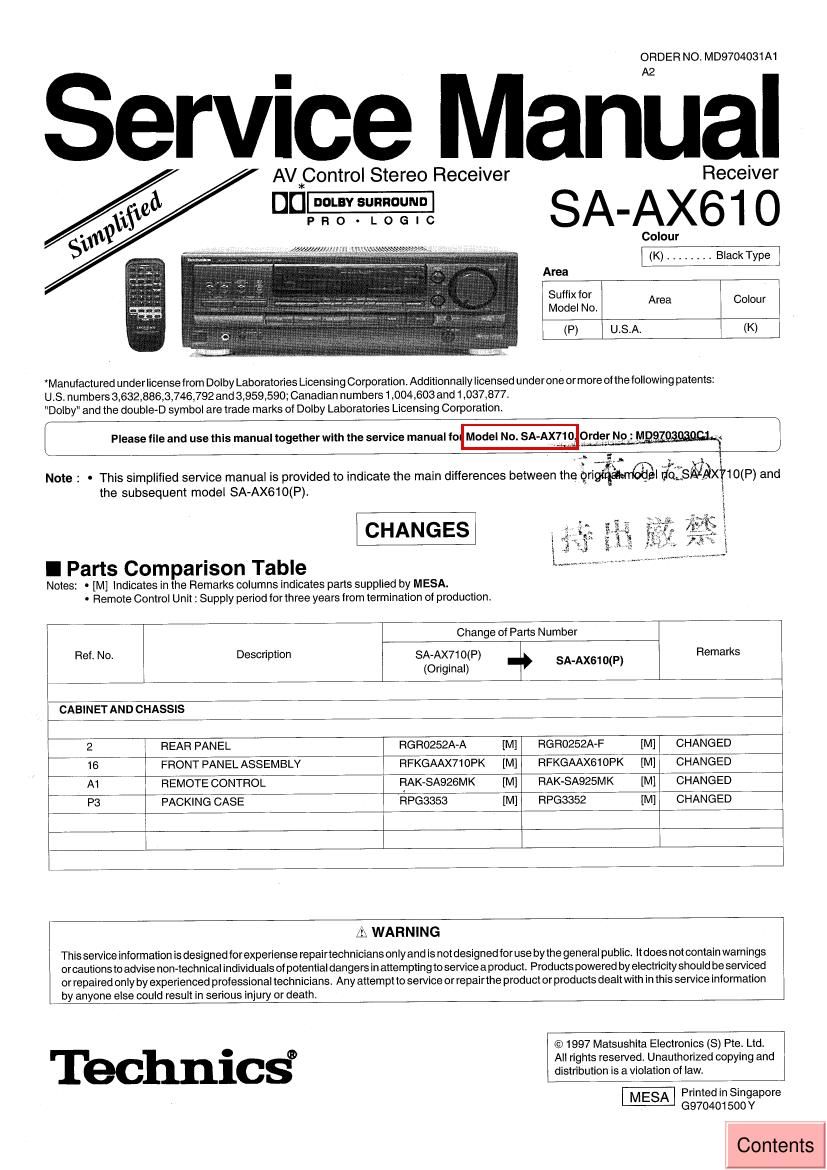

Technics SAAX 610 Service Manual

Page 1

ORDER NO. MDQ704031 A1

Service Manual

AV*Controi Stereo Receiver Receiver
Colour
(K) . Black Type
Area
Suffix for
Mo dei No. Area Colour
(P) U.S.A. (K)

Manufactu red under license from Dolby Laboratories Licensing Corporation. Additionnaiiy licensed underone or more of the following patents:
U.S. numbers 36323863746792 and 3,959,590; Canadian numbers 1 £04,603 and 1 ,037.877.
"Dolby" and the double-D symbol are trade marks of Dolby Laboratories Licensing Corporation.

Please file and use this manual together with the service manual to Model No. SA-AX71 010w W J

4 . A _ A l
Note : ' This simplified service manual is provided to indicate the main differences between the QriMl thsflfixyt 0(P) and
the subsequent model SA-AX610(P). t

CHANGES

I Parts Comparison Table
Notes: - [M] indicates in the Remarks columns indicates parts supplied by MESA.
- Remote Control Unit: Supply period forthree years from termination of production,

Change of Parts Number
Ref. No. Descnption 5A_Ax71o(P) S A- AX 6 1 0 (P) Remarks
(Original)
CABINET AND CHASSIS
2 REAR PANEL FIGR0252A-A [M] RGR0252A-F [M] CHANGED
16 FRONT PANEL ASSEMBLY FIFKGAAX710PK [M] RFKGAAX610PK [M] CHANGED
A1 REMOTE CONTROL RAK-SA926MK [M] RAK-SA925MK [M] CHANGED
P3 PACKING CASE 'RPG3353 [M] RPG3352 [M] CHANGED

A: WARNING

Thisservice information is designed forexperiense repairtechniciansoniy and is notdesignedfor use bythe general public itdoes nolcontain warnings
orcautions to advise non-technical individuals of potential dangers in attempting to service aproduct. Products powered by electricityshould be serviced
or repaired only by experienced professional technicians. Any attempt to service or repairthe product or products dealt with in this service information
by anyone else could result in serious injury or death.

© 1997 Matsushita Electronics (8) Pte. Ltd.

. All rights reserved. Unauthorized copying and
ec 10 distribution is a violation of law.

Printed in Singapore
MESA GQ70401500Y
