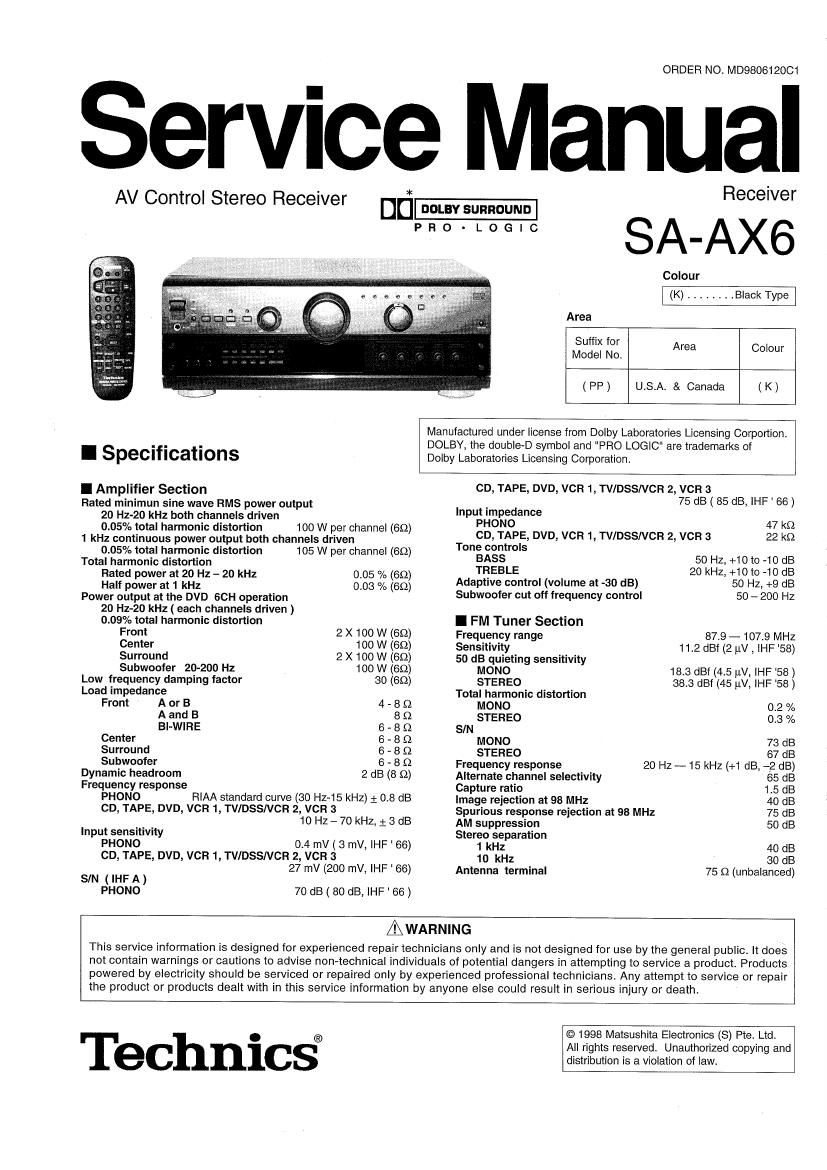

Technics SAAX 6 Service Manual

Page 1

ORDER NO. MD980612001

Service Manual

AV Control Stereo Receiver Dfi Receiver
SA AX6
Colour
(K) Black Type
Area
5331713: ea C°'°
(PP) USA. & Canada (K)

Manufactured under license from Dolby Laboratories Licensing Corportion.
DOLBY, the double-D symbol and "PRO LOGIC" are trademarks of

I Spectflcatlons Dolby Laboratories Licensing Corporation.

I Amplifier Section co, TAPE, DVD. VCR 1, TV/DSSNCR 2, vcn 3 .

Rated minimun sine wave RMS power output I . 75 dB ( 85 dB HF 66)
20 Hz-ZO kHz both channels driven npug'ilnapfiglance 47 kg
0.05% total harmonic distortion 100 W per channel (652)

1 kHz continuous power output both channels driven TonggoltArzlEs DVD VCR 1 TWDSSNCR 2' VCR 3 22 k9

, . . .

Tozatilfigr/Etgt: gaglrgolritézdistortlon 105 W per channel (652) BASS 50 H2, +10 to _10 dB
Rated power at 20 Hz - 20 kHz 0.05 % (so) TBEBLE 20 kHz! '10 0 '10 dB
Half power at 1 kHz 003 % (69) Adaptive control (volume at -30 dB) 50 Hz, +9 dB

Power output at the DVD 60H operation Subwooter cut off frequency control 50 ~ 200 Hz
20 Hz-zo kHz ( each channels driven ) _

0.09% total harmonic distortion I FM Tuner Section
Front 2 X 100 W (6(2) Frequency range 87.9 - 107.9 MHz
Center 100 W (69) Sensitivity 11.2 dBt (2 LtV , lHF 58)
Surround 2 X 100 W (69) 50 dB quieting sensitivity
Subwoofer 20-200 Hz 100 W (6(2) MONO 18,3 dBf (4.5 uV, IHF 58)

Low frequency damping factor 3 (69) STEREO 38.3 dBf (45 av, IHF '58)

Load impedance Total harmonic distortion
Front A or B 4 - B Q MONO 0.2 %

A and B 8 Q STEREO 0.8 %
Bl-WIRE 6 . 8 Q SIN
Center 6 - B Q MONO 73 dB
Surround 6 - 8 Q STEREO 67 dB
Subwooter 6 - 8 9 Frequency response 20 Hz- 15 kHz (+1 dB, -2 dB)

Dynamic headroom 2 dB (8 9) Alternate channel selectivity 65 dB

Frequency response Capture ratio 1.5 dB
PHONO RIAA standard cun/e (30 Hz~15 kHz) 1 0.8 dB Image reiection at 98 MHz 40 dB
CD, TAPE, DVD, VCR 1, TVIDSSNCR 2, VCR 3 Spurious response rejection at 98 MHz 75 dB

10 HZ - 70 kHZ. : 3 dB AM suppression 50 dB

Input sensitivity Stereo separation
PHONO 0.4 mV ( 3 mV, IHF ' 66) 1 kHz 40 dB
CD, TAPE, DVD, VCR 1, TV/DSSNCR 2, VCR 3 10 kHz 30 dB

27 mV (200 mV, IHF ' 65) Antenna terminal 75 Q (unbalanced)

SIN (IHFA)

PHONO 70 dB ( 80 dB, IHF ' 66)
A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does
not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair
the product or products dealt with in this service information by anyone else could result in serious injury or death.

© 1998 Matsushita Electronics (3) Pte. Ltd.

. ® All rights reserved. Unauthorized copying and
Ge Ill-CS distribution is a violation of law.
