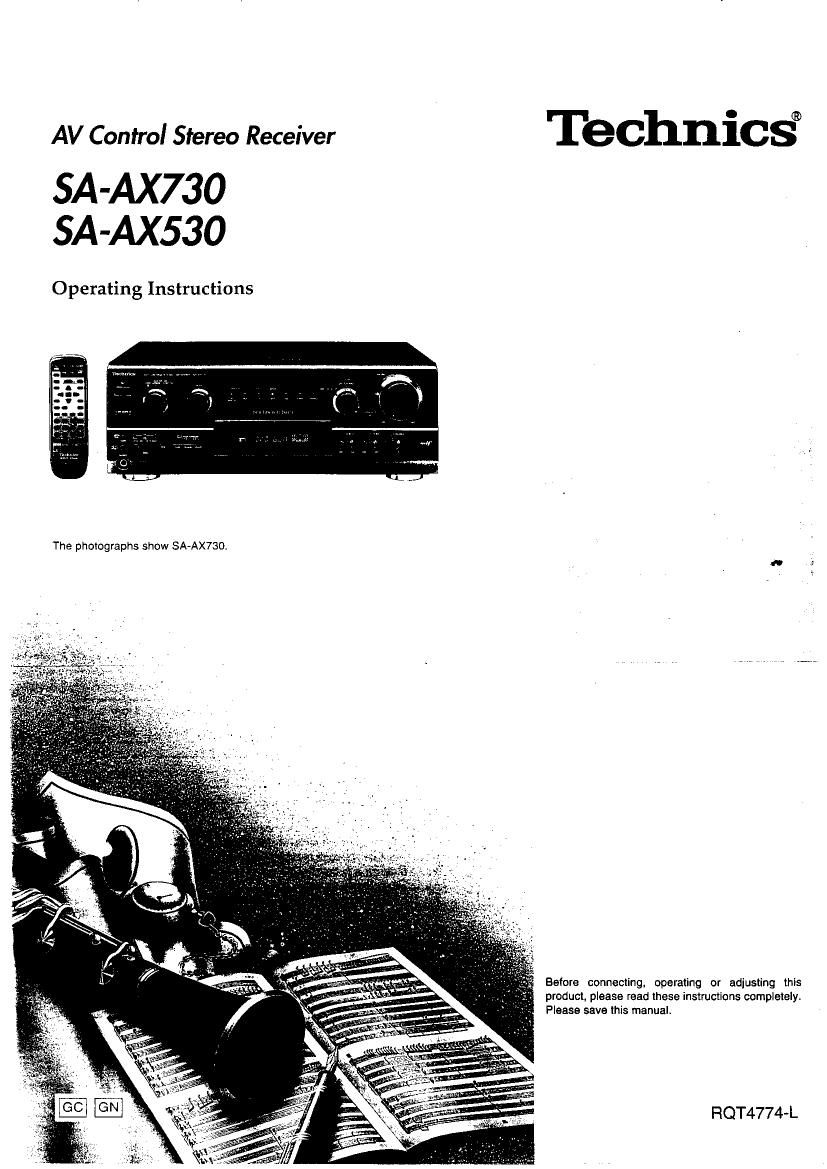

AV Control Stereo Receiver

SA-AX730
SA-AX530

Operating Instructions

The photographs show SA-AXYBO

Technics®

Before connecting, operating or adiusting this
product, please read these instructions completely.
Please save this manual.

RQT4774-L

Page 2

(OT4774

Supplied accessories

Please check and identify the supplied
accessories.

E] AC power supply cord (1 pc.)

(For others)

(For areas except Australia and N1.)

.... ...... .....~...v. ..... ..'.

D AM loop antenna sat
- AM loop antenna (1 pc.)
- AM loop antenna holder (1 pc.)
' Screw (1 pc.)

-...-.......................

I] Remote control transmitter(1 pc.)

(EUR646497)

Dear Customer

Thank you for purchasing this product.

For optimum performance and safety. please read these
instructions carefully.

These operating instructions are applicable to models
SA-AX730 and SA-AXSSO, however, are intended primarily
for model SA-AX730.

(For areas except Australia and NZ.)

CAUTION

The AC voltage is different according to the
area.

Be sure to set the power voltage in your area
before use.

(For details, please refer to the page 8, 10.)

Table of confenfs

Suggestions for safety
Surround guide ...........
Concerning the remote control ..
Front panel controls
Equipment connections .

SA-AX750

SA-AXSSO
Antenna conne ns
Speaker connections ..

mmemmmau

Basic operations
Listening to radio broadcasts.
Sequential tuning
Direct tuning
Preset tuning ,.
Dolby Pro Logic
Setting the center mode and adjusting speaker output level
Adjusting the delay time ................
Enjoying SURROUND or 3 STEREO
SFC (Sound Field Control)
Adjusting field of sound
DVD SCH INPUT mode
Other functions ..
To adjust the tone quality
To adjust the sound balance
To mute the sound level ......
To listen through headphones
Making a recording .....
Recording on a tape deck
Recording on a VCR
Timer function
Setting the timers ..

About the HELP function .. ..... 35

Maintenance .................................................................... 35
Troubleshooting guide ..
Technical specifications

Page 15

Speaker connections

Placement of speakers

Center speaker

Fro ts eaker
(not Included n p

Front speaker

(Left) (Right)
(not included) (not included)
Subwooter

(not included)

Surround speaker Surround speaker
(Left) (Right)
(not included) (not included)

DE @]

Front speakers
Place the front speakers on the left and right of the TV at seated

ear height so there is good coherency between the picture and
sound.

Center speaker
Place thIs speaker underneath or above the center of the TV. Aim
the speaker at the seatIng area.

Surround speakers
Place these speakers on the side of or slightly behind the listener
and about one meter higher than ear level.

Subwooter

The subwooter can be placed in any position as long as it is at a
reasonable distance from the TV

Note that some experimentation can yield the smoothest low
frequency performance. Placement near a corner can increase the
apparent output level, but can result In unnatural bass.

f
Connecting the cables

(For only tron! A" termlnals of SA-AX730)

1

2 8 V,
a @

NO

Arie M


meet.

I i;

HOTA7
