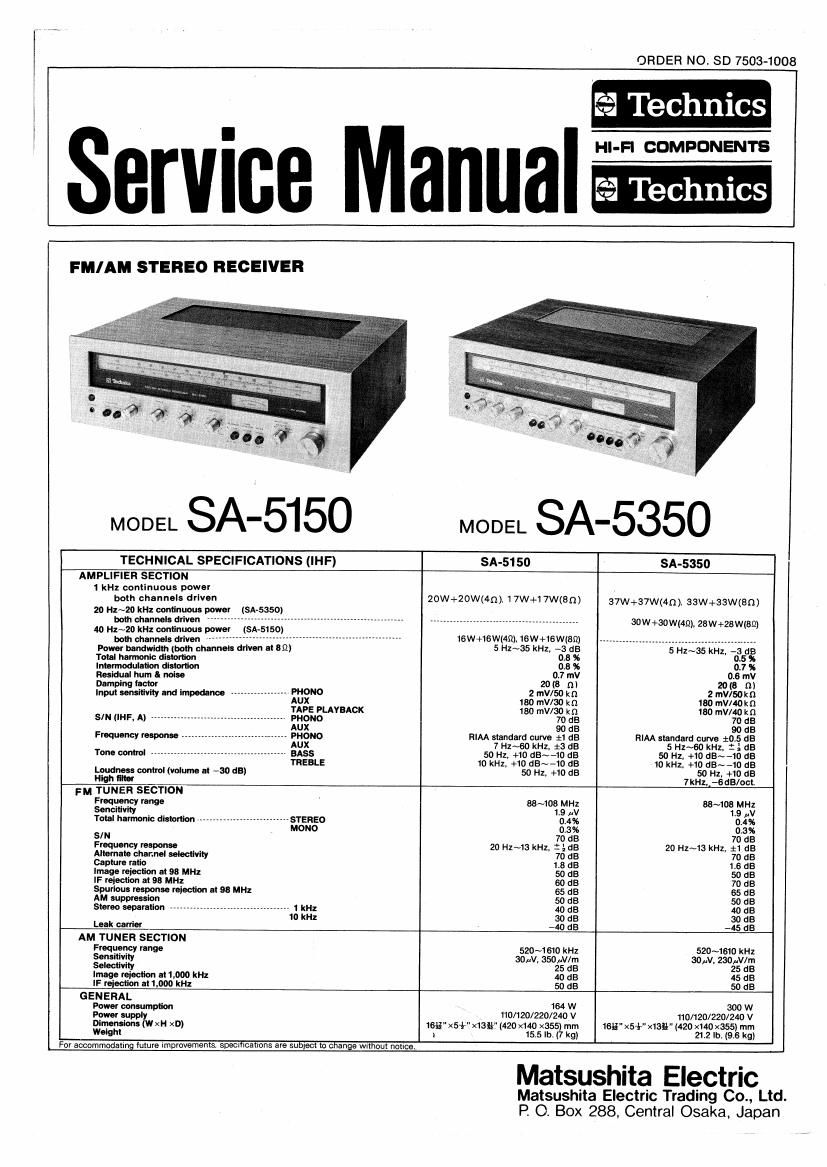

Technics SA 5150 Service Manual
This is the 16 pages manual for Technics SA 5150 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Technics SA 5150 Service Manual (Ocr-read)
Page 2
l LOCATION OF CONTROLS
1
16
9 IO 11 I2 13 14- 15 11 13 I5
Model SA-5350 Model SA-5150
23 24 25 26 27 28
23 24 25 28
Model SA-5350
Model SA-5150
1. POWER SOURCE SWITCH 17- TUNING CONTROL
2. VOLUME CONTROL 18. AM ANTENNA TERMINAL
3. BALANCE CONTROL 19. AM FERRITE CORE ANTENNA
4. SIGNAL METER 20. AC OUTLET. Switched (Not Attach 70! England)
5, STEREO INDICATOR (STEREO EYE) 21. AC OUTLET. nswitched (Not Attach for England)
6.'HEADPHONES JACK 22. FM ANTENNA TERMINALS
7. SPEAKERS SWITCH 23. PHONO INPUT TERMINALS
8. BASS CONTROL 24. AUX INPUT TERMINALS
9. TREBLE CONTROL 25. TAPE MONITOR (TAPE 1) TERMINALS
10. FM MUTiNG SWITCH 26. TAPE MONITOR (TAPE 2) TERMINALS
11. LOUDNESS SWITCH 27. 4 CH. MPX OUTPUT TERMINAL
12. HIGH FILTER SWITCH 28. CIRCUIT PROTECTION FUSES
13. TAPE MONITOR (TAPE 1) SWITCH 29. SPEAKER TERMINALS
14. TAPE MONITOR (TAPE 2) SWITCH 30. VOLTAGE SELECTOR SWITCH
15. MODE SWITCH 31. TAPE MONITOR DIN SOCKET
16. SELECTOR SWITCH
l DIAL CORD INSTALLATION GUIDE .
omy 5.1.5504.
1. Dial cord length is 78% (2000m).
2. Tuning gang is positioned at maximum capacity.
(Frequency is minimum)
3. Arrow marks (1~8)indicate correct order and 4 \
direction of stringing dial cord.
Yuma 5mm
E] SA-5150/SA-5350
