Technics SA 500 Operating Instructions

This is the 10 pages manual for Technics SA 500 Operating Instructions.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 10
Technics SA 500 Operating Instructions

Extracted text from Technics SA 500 Operating Instructions (Ocr-read)

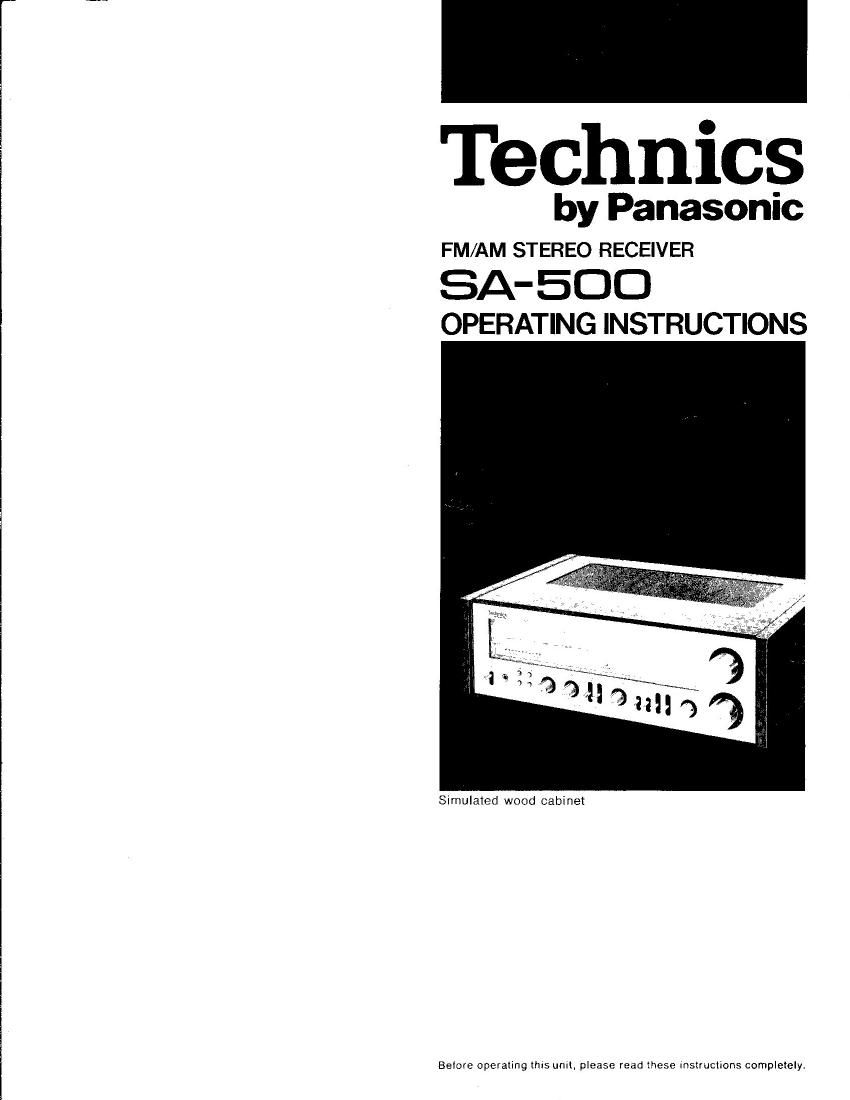

Page 1

Technics

by PanasonIc
FM/AM STEREO RECEIVER

SA-SOD
OPERATING INSTRUCTIONS

Simulaled wood cabinet

BeloIe operating thIs unIl, please read these Instructions completely.

Page 2

/ , k/
Q9/5742 %Z€a 1%

Your new Technics by Panasonic" FM/AM stereo receiver was manufactured and assembled under exacting quality

control standards.

The incorporation of the latest advances in design and the use of the most modern components assure outstanding

performance with superb SenSIIIVIIy and tonal quality.

A few minutes of your time, wisely spent reading carefully through this instruction booklet, will assure you of getting

the maximum benefit of this fine component's potential.

CONTENTS


! ACCESSORIES . ...... 1
I PRODUCT SERVICE 1
0 MAINTENANCE OF EXTERNAL SURFACES 1
I FOR LONG AND SAFE USE OF THIS UNIT ..... 2
0 ABOUT THE ClRCUITRY-PROTECTION FUSES 3
O FRONT PANEL CONTROLS AND THEIR

FUNCTIONS ............... .......... .. ....... ...... 4
I ACOUSTIC CONTROLS ............. 6
0 CONNECTION NOTES .................................. .. 7
0 TAPE RECORDING AND TAPE-TO-TAPE

RECORDING .. ........................................... 8
0 TECHNICAL SPECIFICATIONS ......... ....... . 02

ACCESSORIES

FM feeder antenna ................. . 1
Speaker circuit protection fuses .. . .. .. 2

PRODUCT SERVICE

WARNING CONCERNING REMOVAL OF COVERS

This unit should be serViced by qualified technicians only.
No servrce information is provided for customers.

Should your "Technics by Panasonic product ever require
servicrng, refer to the Directory of Authorized Service Cen-
ters or your franchised "Technics by Panasonic" dealer for
detailed instructions,

LOCATION OF SERIAL NUMBER
You Will find the serial number located at the back of the
unit.

MAINTENANCE OF
EXTERNAL SURFACES

To clean, use a soft. dry cloth ii the surfaces are extremely
dirty, use a sott cloth soaked in a detergent (such as used
lor washing dishes diluted to 1/5 or 7/6 strength). and then
wring the cloth well Wipe once again with a soft- dry cloth.
Never use chemicals such as alcohol. paint thinner and
benzine, nor a chemically»treated cloth,to clean this unit
because the finish may be damaged or lose its luster.

The model number of this product may be found on the back oi the unit; and the serial number on the label affixed

to the back of the unit

You should note the model and serial numbers of lhis unit in the space crowded and retain this booklet as a
permanent record of your purchase to aid in identification In the event of theft,

MODEL NUMBER,

SERIAL NUMBERiifis ,7

WARNING: To PREVENT FIRE on SHOCK HAZARD,
no NOT EXPOSE THIS APPLIANCE T0 RAIN on MOISTURE.
