Technics SA 210 Owners Manual

Page 1

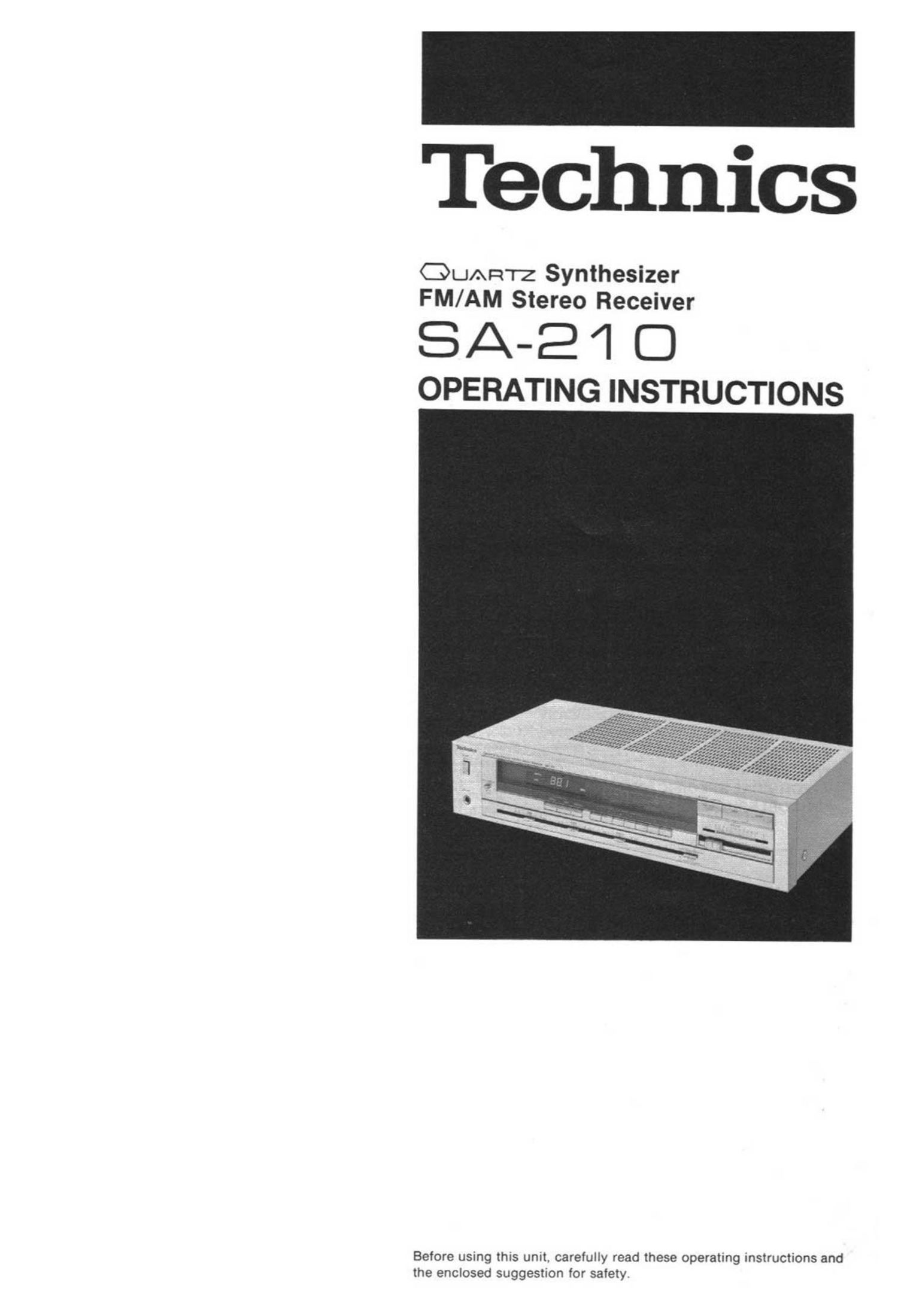

Technics

QUARTZ Synthesizer
FM/AM Stereo Receiver

SA-E1 D

OPERATING INSTRUCTI

Before using this unit. carefully read these operating instructions and
the enclosed suggestion for safety,

Page 2

Technics. The science of sound. Our name repre-
sents over 100 high quality audio products, in every
price range.

From our revolutionary direct-drive turntables to our
highly acclaimed linear-phase speakers, Technics
quality and value have become almost legendary
among audio enthusiasts.

Our truly complete selection of turntables (in-
cluding belt-drive, direct-drive, and quartz-locked
models with varying degrees of automation) now
includes an exciting line of linear tracking turntables
with zero tracking error. Another innovation. direct-
drive cassette decks, is available in both slim and
micro formats. In fact, with Technics micro series,
you can assemble an entire system of the highest

quality with truly compact dimensions.

And our receivers, which combine new class-A
amplification with quartz-synthesizer tuning, have
created tremendous excitement among reviewers
and customers alike.

Amplifiers, tuners, headphones, microphones, car-
tridges, open reel decks, sound processors-we are
proud of all our high quality equipment, and we are
constantly seeking to improve our products in terms
of performance and handling ease. In addition, our
confidence in the reliability of our merchandise
(demonstrated by our warranties) and the reasons

for our enormous and rapid growth become
obvious.

OACCESSORIES ................................. 2
OMAINTENANCE OF EXTERNAL SURFACES ..... 2
0 PRODUCT SERVICE ............................ 2
OBATTERIES (option): THEIR USE AND

INSERTION/REMOVAL ......................... 3
OIF THE BATTERIES BECOME WEAK ............ 3
0PM ANTENNA .................................. 4
0AM ANTENNA .................................. 4
0STEREO SYSTEM COMPONENTS

AND THEIR CONNECTIONS .................... 5
OFRONT PANEL CONTROLS

AND THEIR FUNCTIONS ....................... 7
0 PROTECTION CIRCUITRY ...................... 8
CHOW TO PRESET RADIO BROADCAST

FREQUENCIES ................................. 9
0 OPERATION ................................... 10
0 RECORDING ................................... 12
OTECHNICAL SPECIFICATIONS ................. 12
'TROUBLESHOOTING GUIDE ................... 13

0 FM indoor antenna .................................... 1
0 AM loop antenna ..................................... l
0 AM antenna holder .................................... 2
I Screws ............................................... 2

The model number of this product may be found on the back of
the unit; and the serial number on the label affixed to the back of
the unit.

You should note the model and serial numbers of this unit in the
space provided, and retain this booklet as a permanent record of
your purchase to aid in identification in the event of theft.
MODEL NUMBER

SERIAL NUMBER

WARNING:

To PREVENT FIRE 0R SHOCK HAZARD,

DO NOT EXPOSE THIS PRODUCT TO RAIN 0R
MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK
[10 NOT OPEN

CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE SCREWS.
NO USER-SERVICEABLE
PARTS INSIDE.

REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

The lightning flash with arrowhead symbol.
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated .
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and main-
tenance (servicing) instructions in the literature
accompanying the appliance.

To clean. use a soft dry cloth.

If the surfaces are extremely dirty. use a soft cloth. dipped into a
soap and water solution or a weak detergent solution.

Wring the cloth well before wiping the unit.

Wipe once again with a soft dry cloth.

Never use alcohol. paint thinner, benzine. nor a chemically
treated cloth to clean this unit.

Such chemicals may damage the finish of your unit.

I Warning concerning removal of covers

This unit should be serviced by qualified technicians only. No
service information is provided for customers.

Should your Technics" product ever require servicing, refer to
the Directory of Authorized Service Centers or your franchised
Technics" dealer for detailed instructions.

I Location of serial number
You will find the serial number located on the back of the unit.
