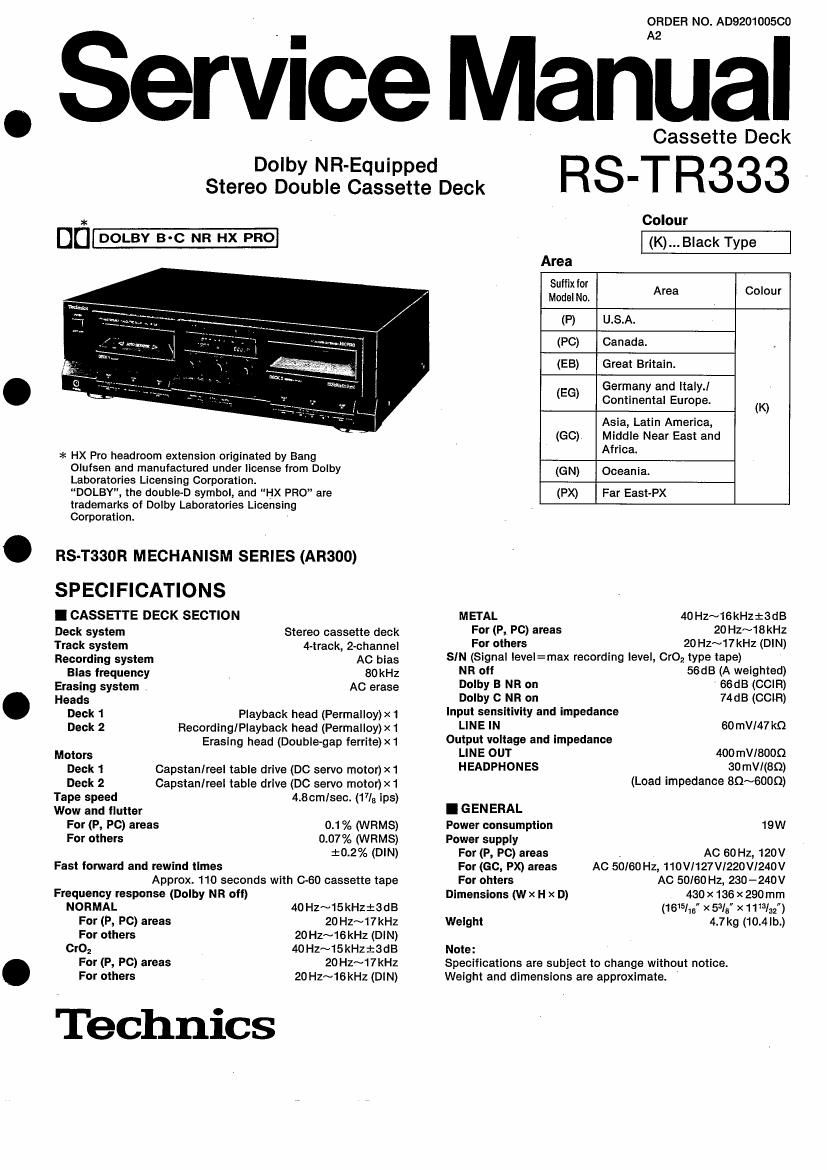

ORDER NO. AD9201005C0

. Service ManUal

Dolby NFi-Equipped
Stereo Double Cassette Deck

Dri-

>I= HX Pro headroom extension originated by Bang
Oqusen and manufactured under license from Dolby
Laboratories Licensing Corporation.
DOLBY", the double-D symbol, and HX PRO are
trademarks of Dolby Laboratories Licensing
Corporation.

RS-T330R MECHANISM SERIES (ARSOO)

SPECIFICATIONS

I CASSETTE DECK SECTION

Deck system
Track system

Stereo cassette deck
IHrack, 2-channei

Recording system AC bias
Bias frequency BOkHz
Erasing system AC erase

Heads
Deck 1 Playback head (Permalloy)x 1
Deck 2 Recording/Playback head (Permalloy)x1
Erasing head (Double-gap ferrite)x1

Motors
Deck 1 Capstan/reel table drive (DC servo motor) x1
Deck 2 Capstanlreel table drive (DC servo motor) x1
Tape speed 4.8cm/sec. (17Ia ips)

Wow and flutter
For (P, PC) areas
For others

0.1% (WRMS)
0.07% (WRMS)
i0.2% (DIN)
Fast toward and rewind times
Approx. 110 seconds with 060 cassette tape
Frequency response (Dolby NH oft)

NORMAL 40 Hz~15kHzi3dB
For (P, PC) areas 20 Hz~17kHz
For others 20 Hz~1 6 kHz (DIN)

CrOz 40Hz~15kHziSdB
For (P, PC) areas 20Hz~17kHz
For others 20 Hz~16kHz (DIN)

Technics

Cassette Deck

RS-T R333

Colour
(K ...Black Type
Area
Suffixtor
Model No. Area Colour
(P) U.s.A.

(PC) Canada.
(EB) Great Britain.

Germany and ItalyJ
(E6) Continental Europe.

(K)
Asia, Latin America,
(GO) Middle Near East and
Africa.
(GN) Oceania.
(PX) Far East-PX
METAL 40HZ~16kHziadB
For (P, PC) areas 20 Hz~18kHz
For others 20 Hz~17kHz (DIN)
SIN (Signal levei=max recording level, CrOz type tape)
NR on 56dB (A weighted)
Dolby 5 NR on 66dB (com)
Dolby C NR on 74dB (CCIFI)
Input sensitivity and impedance
LINE IN 60mV/47k0
Output voltage and impedance
LINE OUT 400mV/8000
HEADPHONES 30mVI(8(2)
(Load impedance 80~600m
I GENERAL
Power consumption 19W
Power supply

For (P, PC) areas
For (so. PX) areas
For ohters

AC 60 Hz, 120V
AC 50/60HZ, 110VI127VI220V1240V
AC 50/60 Hz, 230-240V

Dimensions (W x H x D) 430 x136 x 290mm
(16151,; x 53/," x 1113/32")
Weight 4.7kg (10.4Ib.)

Note:
Specifications are subject to change without notice.
Weight and dimensions are approximate.

Page 2

RS-TR333

ICONTENTS p.
IEI

SAFETY PRECAUTION INTERNAL CONNECTION OF FL ............................................... 30

ACCESSORIES .. TERMINAL GUIDE OF I S, TRANSISTORS

CONNECTIONS. AND DIODES.......... ......................................................... 31

LOCATION OF CONTROLS.. PACKING 31

DISASSEMBLY INSTRUCTIO . REPLACEMENT PARTS LIST ....................................................... 32

MEASUREMENTS AND ADJUSTMENT EXPLODED VIEWS (Cabinet parts and

PRINTED CIRCUIT BOARDS Mechanical parts: DECK 1) 33~3Ei

SCHEMATIC DIAGRAM .
BLOCK DIAGRAM...
WIRING CONNECTION DIAGRA
TERMINAL FUNCTION OF IC ......

REPLACEMENT PARTS LIST .
EXPLODED VIEW (Mechanical parts.
REPLACEMENT PARTS LIST.
RESISTORS & CAPACITORS..

I SAFETY PRECAUTION (This safety precaution" Is applied only In U. S. A.)

Ul-D-CDN

.Before servicing, unplug the power cord to prevent an electric shock.

. When replacing parts. use only manufacturer 3 recommended components for safety.

. Check the condition of the power cord. Replace if wear or damage is evident.

. After servicing, be sure to restore the lead dress, insulation barries, insulation papers, shields. etc.

. Before returning the serviced equipment to the customer. be sure to make the following insulation resistance test to prevent the
customer from being exposed to a shock hazard.

OINSULATION RESISTANCE TEST

1.

Unplug the power cord and short the two prongs oi the plug with a jumper wire.

2. Turn on the power switch.
3. Measure the resistance value with ohmmeter between the jumpered AC plug and each exposed metal cabinet part, such as

screwheads antenna. control shafts. handle brackets, etc. Equipment with antenna terminals should read between 3 M0 and
5.2 M!) to all exposed pans. (Fig. A) Equipment without antenna terminals should read approximately infinity to all exposed
parts. (Fig. 3)

Note: Some exposed parts may be isolated from the chassis by design. These will read infinity.

Antenna
terminal \-

EXposed Exposed J '9
metal metal
part part
Ohmmeter Ohmmeter
(Fig- A) (Fig. B)

Resistance=3 Mn-5.2 M0 RESISiance=Approx co

4. If the measurement is outside the specified limits. there is a possibility of a shock hazard. The equipment should be repaired and

rechecked before it is returned to the customer.

I ACCESSORIES

.31, 38
. 39, 40
. 41, 4::
. 43, 44s

Stereo mini cable
(SJP2257T) .................. 2 pcs.

AC power supply cord Stereo connection cable

(RJA0004) ......... (GO, px) (SJP2249-3) .................. 2 pcs.
(RJAOO19-1 K). . . . (EG)

(SJA172) . . . . ..(PC) 1 pc

(SJA173) .. . . (GN)

(SJA175-1) . . (F) @@

(SJA193) ...... . . (EB)

Power plug adaptor
(SJP9215) ...................... 1 pc.
(For GO, PX areas only)

Note: Configuration of AC power supply cord differs according to area.
