RS-M250 MECHANISM SERIES

ORDER NO AR082060152A4-01

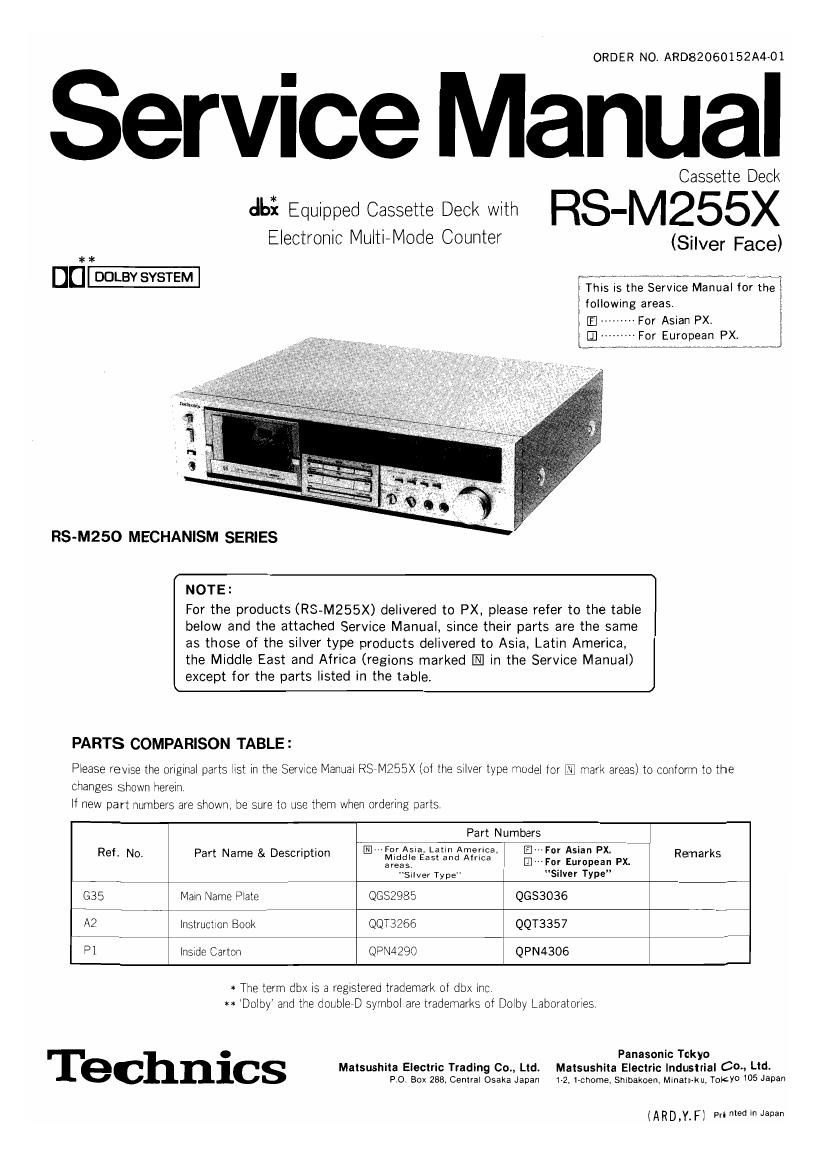

Service Manual

Cassette Deck

Jinx Equipped Cassette Deck with RS-M255X

Electronic Multi- Mode Counter

(Silver Face)

7
i This is the Service Manual for the F

[ following areas.

l E

For Asian PX. E

i For European PX.

NOTE:

For the products (RS-M255X) delivered to PX, please refer to the table
below and the attached Service Manual, since their parts are the same
as those of the silver type products delivered to Asia, Latin America.
the Middle East and Africa (regions marked in the Service Manual)
except for the parts listed in the table.

PARTS COMPARISON TABLE :

Please revise the orIginal parts list In the Service Manual RSVMZSBX (of the SIlver type model tor lE mark areas) to conform to the
changes shown hereIn.
It new part numbers are shown. he sure to use them when orderIng parts.

Part Numbers l
Ref. No. Part Name & Description EmEga%:aga:f';fi§§fifé°aav .in 23:30:53): PX. l Remarks
"SIlvev Type" Silver Type"
G35 Main Name Plate Q632985 QG$3036
A2 7 lnstructIon Book QQT3266 QQT3357
P1 lnsrde Carton QPN4290 QPN4306

* The term dbx is a registered trademark of dbx inc
H Dolby and the doublerD symbol are trademarks of Dolby Laboratories,

Technics

Matsushita Electric Trading Co., Ltd.
P.0. Box 288. Central Osaka Japan

Panasonic Tokyo

Matsushiia Electric Industrial 60., Ltd.
12. 1-chome, Sthakoen. MInatu-ku, TolYo 105 Japan

(ARD.Y. F] m nted in Jauan
