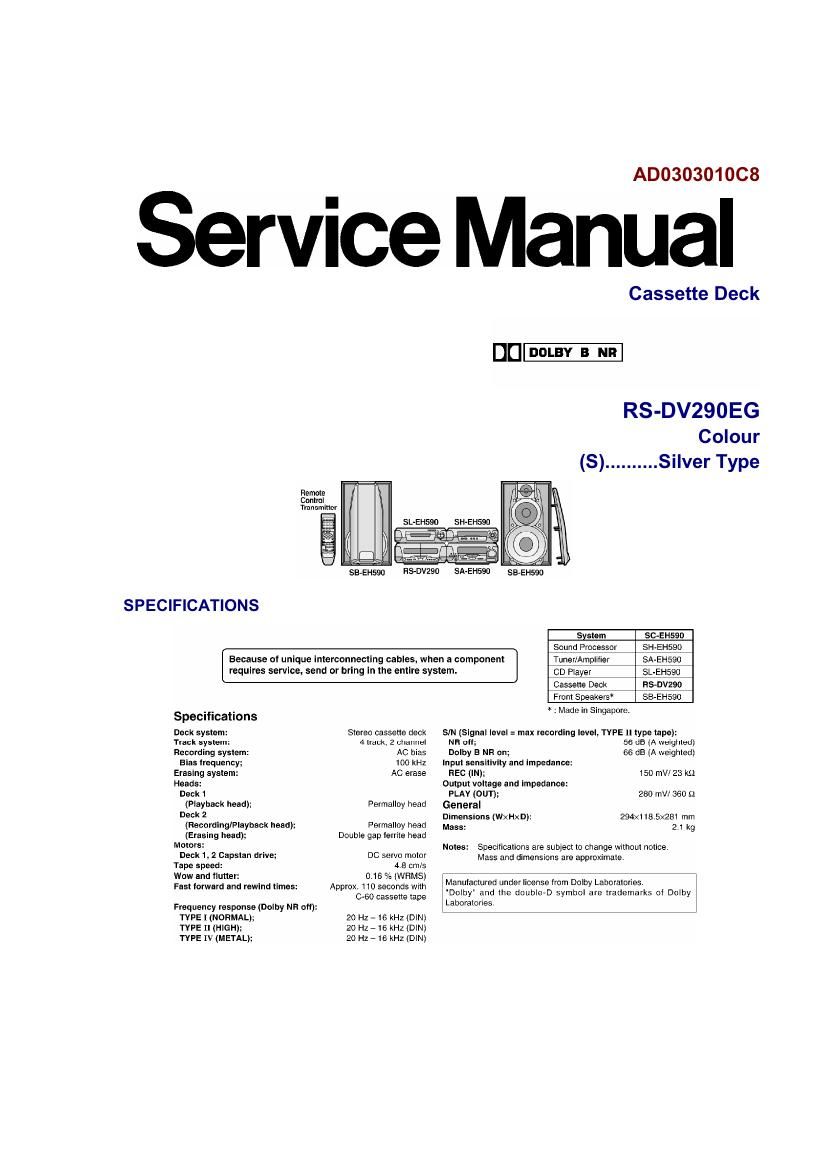

Technics RSDV 290 EG Service Manual

Page 1

ADO30301OC8

Service Manual

Cassette Deck

RS-DV290EG
Colour
(S)..........Silver Type

Remote
Central
Transmitter

SL-EHSSO SH-EHSSH

sB-EHssu RS-DVZBD SA-EHSJU sB-EHsso

SPECIFICATIONS
system sc-EHsso
Sound Processor SH-EHSQO
Because of unique interconnecting cables. when a component Tuner/Amplifier SA-EHSSO
requires service, send or bring In the entire system. co Player SL-EHSSU
Cassema Deck Hs-szso
Front Speakers SB-EHSQG

* : Made in Singapore.

Specifications

Deck system: Stereo cassette deck SIN (Signal level = max recordlng level. TYPE 11 type tape):
Track system: 4 track, 2 channel NR ufl; 56 dB (A weighted)
Recording system: AC bias Dolby B NH on; 66 dB [A weighled]
Bias frequency: 100 kHz Input sensitivity and impedance:
Erasing system: AC erase REC (IN): 150 mV/ 23 kn
Heads: Output voltage and impedance:
Deck 1 PLAY (OUT); 280 mV/ 360 51
(Playback head); Permalloy head General
Deck 2 Dimensions (WXHXD): 294m l85x281 mm
(Recording/Playback headl: Fem-alloy head Mass: 21 k9
(Erasing head); Double gap Ierrlte head
Mom's; Notes: Specifications are subject to change Without notice
Deck 1, 2 Capslan drive; DC servD motor Mass and dimensions are approximate
Tape speed: 4.8 cm/s
Wow and flutter: 0:16 "/e (WHMSJ

Manufactured under license from Dolby Laboratories.

Fas' mam "d W'MI'MBS: App'ox'cjggcsgnggg: 'Dolby" and me acumen symbol are trademarks or Dolby
Frequency response (Dolby NR ofl): Emmy

TYPE I (NORMAL); 20 Hz - 16 kHz (DlN)

TYPE 1'1 (HIGH); 20 Hz - is kHz (DlN)

TYPE IV (METAL); 20 H2 716 kHz (DlN)
