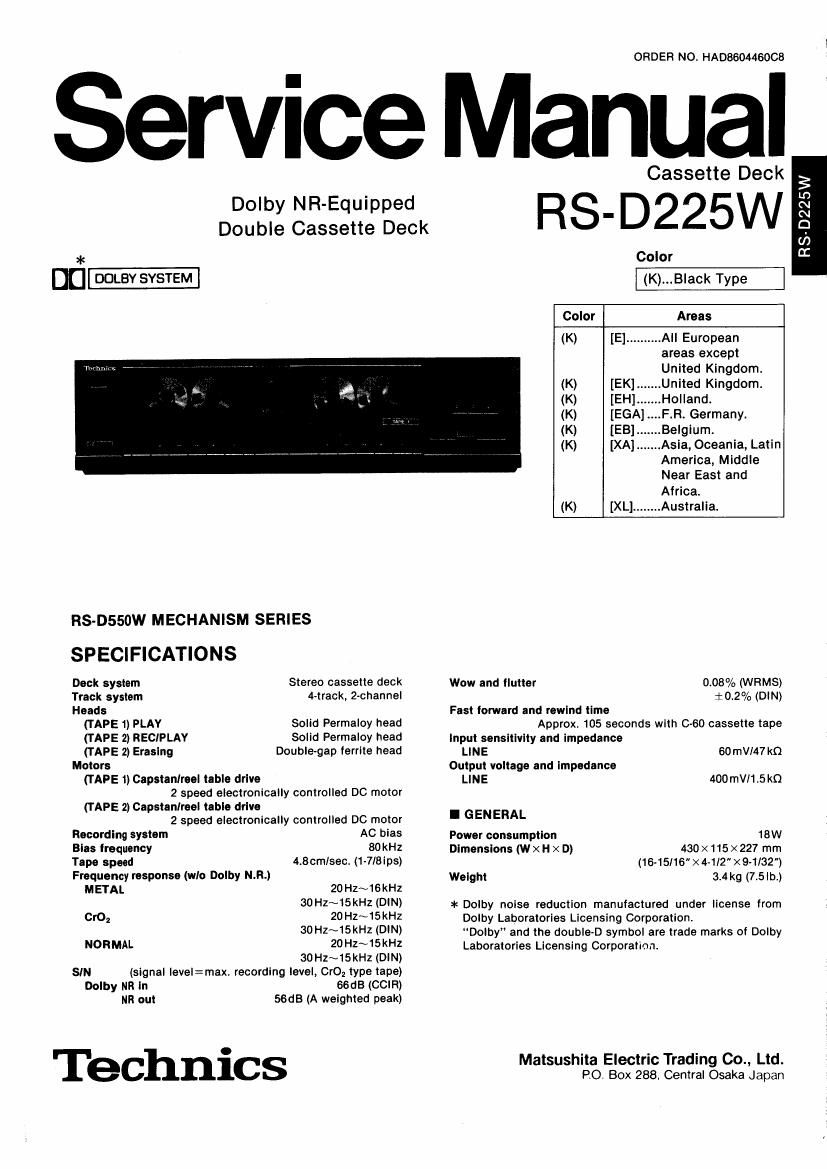

Service Manual
Dolby NR-Equipped
Double Cassette Deck
*
DU DOLBY SYSTEM
RS-DS50W MECHANISM SERIES
SPECIFICATIONS
Deck system Stereo cassette deck
Track system 4-traok, 2-channel
Heads
(TAPE 1) PLAV Solid Permaloy head
(TAPE 2) RECIPLAY Solid Permaloy head
(TAPE 2) Erasing Double-gap ferrite head
Motors
(TAPE 1) Capstanlreal table drive
2 speed electronically controlled DC motor
(TAPE 2) Cepstenlreel table drive
2 speed electronically controlled Dc motor
Recording system AC bias
Bias lrequancy 80kHz
Tape speed 4.8cmlsec. (1 -718ips)
Frequency response (wlo Dolby N.R.)
METAL 20Hz~16kHz
30Hz~15kHz (DIN)
Croz 20Hz~15kHz
30Hz~15kHz (DIN)
NORMAL 20 Hz~15kHz
30Hz~15kHz (DIN)
SIN (signal Ieveizmax, recording level, Cro; type tape)
Dolby NR In 66dB (CClR)
NR out 56dB (A weighted peak)
Technics
ORDER NOt HA0860446008
Cassette Deck
R S- D 2 2 SW
Color
(K)...B|ack Type
Color Areas
(K) [E].. ..All European
areas except
United Kingdom.
(K) United Kingdom.
(K) ..Holland.
(K) ..F.R. Germany.
(K) .Belgium.
(K) Asia, Oceania, Latin
America, Middle
Near East and
Africa.
(K) [XL] ........ Australia.
Wow and flutter 0.08% (WRMS)
t0.2°/a (DIN)
Fast forward and rewind time
Approx. 105 seconds with 060 cassette tape
input sensitivity and impedance
LINE 60 mV/47 k0
Output voltage and impedance
LINE 400mV/1.5k0
I 6 EN ERAL
Power consumption 18w
Dimensions (W x H X D) 430 x 115 x 227 mm
(16-15116" >< 4-112 X9-1I32")
Weight 3.4 kg (7.5 lb.)
=l< Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
Dolby" and the double-D symbol are trade marks of Dolby
Laboratories Licensing Corporation.
Matsushita Electric Trading Co., Ltd.
PO. Box 288, Central Osaka Japan
RS~D225W
