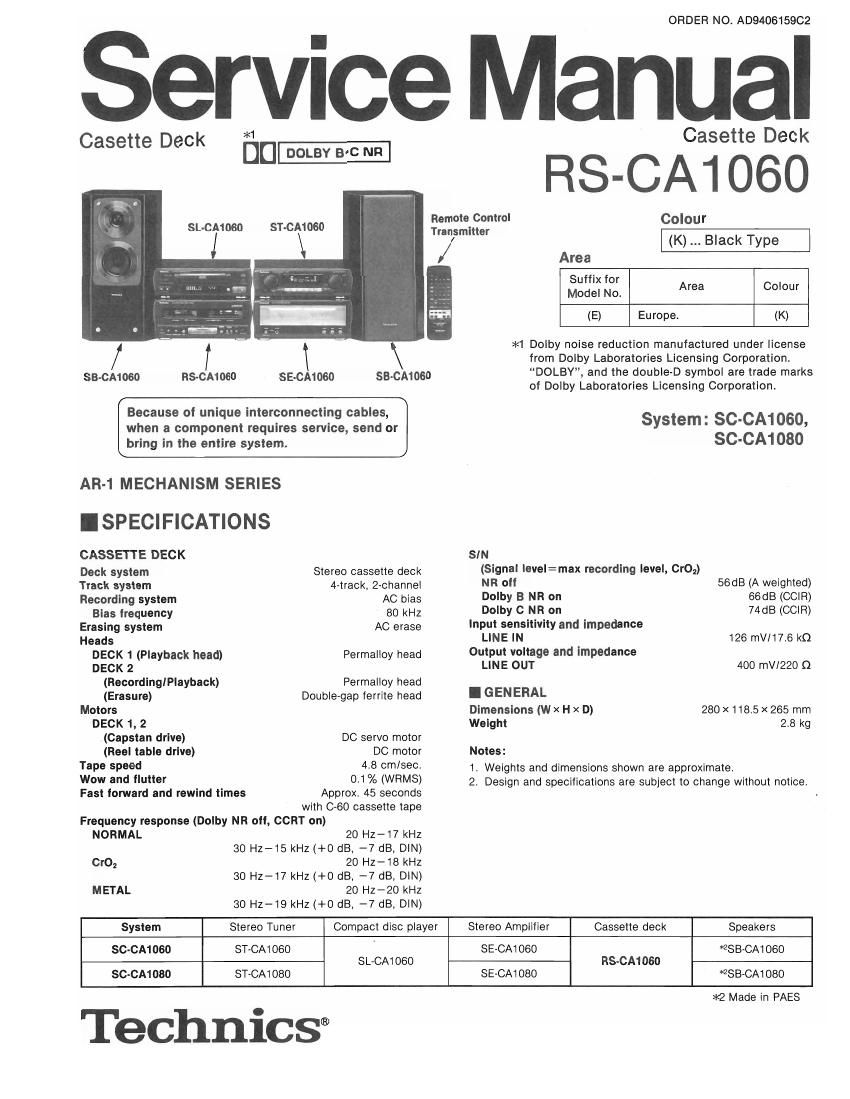

Technics RSCA 1060 Service Manual

Page 1

Casette Deck

SL-CAfllfiO ST-CAI 060

58-01 060 RS-CA1060 SE-CAIOSO SB-CA1060

Because at unique interconnecting cables,
when a component requires service, send or
bring in the entire system.

AR-1 MECHANISM SERIES

ISPECIFICATIONS

CASSETTE DECK

Deck system
Track system

Stereo cassette deck
4

Recording system AC bias
Bias lrequency 80 kHz
Erasing system AC erase
Heads
DECK 1 (Playback head) Permalloy head
DECK 2
(RecordingIPlayback) Permalloy head
(Erasure) Doublegap lerrite head
Motors
DECK 1, 2

DC servo motor

DC motor

4.8 cm/sect

0,1 % (WRMS)

Approx. 45 seconds

with 0-60 cassette tape
Frequency response (Dolby NH 0", CCRT on)

(Capstan drive)
(Reel table drive)
Tape speed
Wow and flutter
Fast lorward and rewind times

Remote Control
Tren/smitter

ORDER NO. A0940615902

Service Manual

*1
or]-

Casette Deck

RS-CA106O

Colour
(K) Black Type

Area
Suffix for
Model No. Area Colour
(E) Europe, (K)

*1 Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
DOLBY, and the double-D symbol are trade marks
of Dolby Laboratories Licensing Corporation.

System: SC-CA1060,
SC-CAt 080

SIN

(Signal level:max recording level, CrOZ)

NR orr 56dB (A weighted)

Dolby B NR on 66dB (CCIR)

Dolby c NR on 74dB (corn)
Input sensitivity and impedance

LINE IN 126 mV/17.6 k0
Output voltage and Impedance

LINE OUT 400 mVI220 O
I GEN ERAL
Dimensions (W x H x D) 280 X 118.5 X 265 mm
Weight 2.8 kg
Notes:

1. Weights and dimensions shown are approximate.
2. Design and specifications are subject to change without notice.

NORMAL 20 HZ-17 kHz
30 H2-15 kHZ (+0 dB, ~7 dB, DIN)
0'0; 20 Hz-18 kHZ
30 Hz~17 kHz (+0 dB, -7 dB. DlN)
METAL 20 Hz-20 kHz
30 Hz-19 kHz (+0 dB. -7 dB, DlN)
System Stereo Tuner Compact disc player Stereo Amplifier Cassette deck Speakers
SC-CA1060 ST-CAl 060 SE-CA1060 VSBCAt 060
SL»CAl 060 RS-CA1060
SC-CA1080 ST-CA1080 SECAT 080 ESE-CA1 080

TechniCS®

#2 Made in PAES

Page 2

RS-CA1060

I CONTENTS

LOCATION OF CONTROLS
REPLACEMENT OF FOOT
OPERATION CHECKS AND MAIN COMPONENT

REPLACEMENT PROCEDURE ........

MEASUREMENTS AND ADJUSTMENTS 9~12
SCHEAMTIC DIAGRAM ..... 13~19
PRINTED CIRCUIT BOARDS. 20~22

WIRING CONNECTION DIAGRAM
BLOCK DIAGRAM .....................
TERMINAL FUNCTION OF ICS..
CABINET PARTS LOCATION ..
REPLACEMENT PARTS LIST..
MECHANISM PARTS LOCATION ..
RESISTORS AND CAPACITORS.... 34, 35

. 29, 32, 33
30, 31

Note 1: Refer to the placement, installation, Connections and Concerning the remote control and Quick reference of
remote control operation of Service manual for Model No. ST-CA1080 (E, EG), Order No. AD940615362 and

ST-CA1060 (E, EG), Order No. AD940617OC2.

Note 2: Refer to the Accessories and Packaging of Service manual for Model No. SE-CA1080 (E, EB, EG), Order No.
AD940615802 and SE-CA1060 (E, EB, EG, GC, GN), Order No. AD9406171CB.

I LOCATION OF CONTROLS

I REPLACEMENT OF THE FOOT

1. Remove the 4 heat melted posts on the Bottom
board assy with a pair of nippers or similar tool.

2. To replace the foot (RKA0011-3) on the Bottom
board assy melt the 4 posts with a soldering iron
or install it with a screw (XTBS+6J).

Cassette deck section B

Deck 1 cassette holder

Deck 1 cassette holder open]
close button

Deck 1 cassette holder close
button

Fast torward/rewind/tape pro-
gram sensor buttons

Deck 2 cassette holder close
button

Deck 2 cassette holder
open/close button

Dolby noise reduction button
and indicators

Reverse mode button and indi-
cators

Deck1/deck2 select button and
indicators

@®@@©@®@

Playback buttons and indicators
Stop button

Record pause button and indi-
cator

One-touch tape edit buttons
CCRT button and indicator
Deck 2 cassette holder

@6@ ®®6 @

Heat melted posts

Foot

Bottom board ass'y Soldering Iron

Screws?

Foot (RKA0011~3)
