Technics RSBX 707 Owners Manual

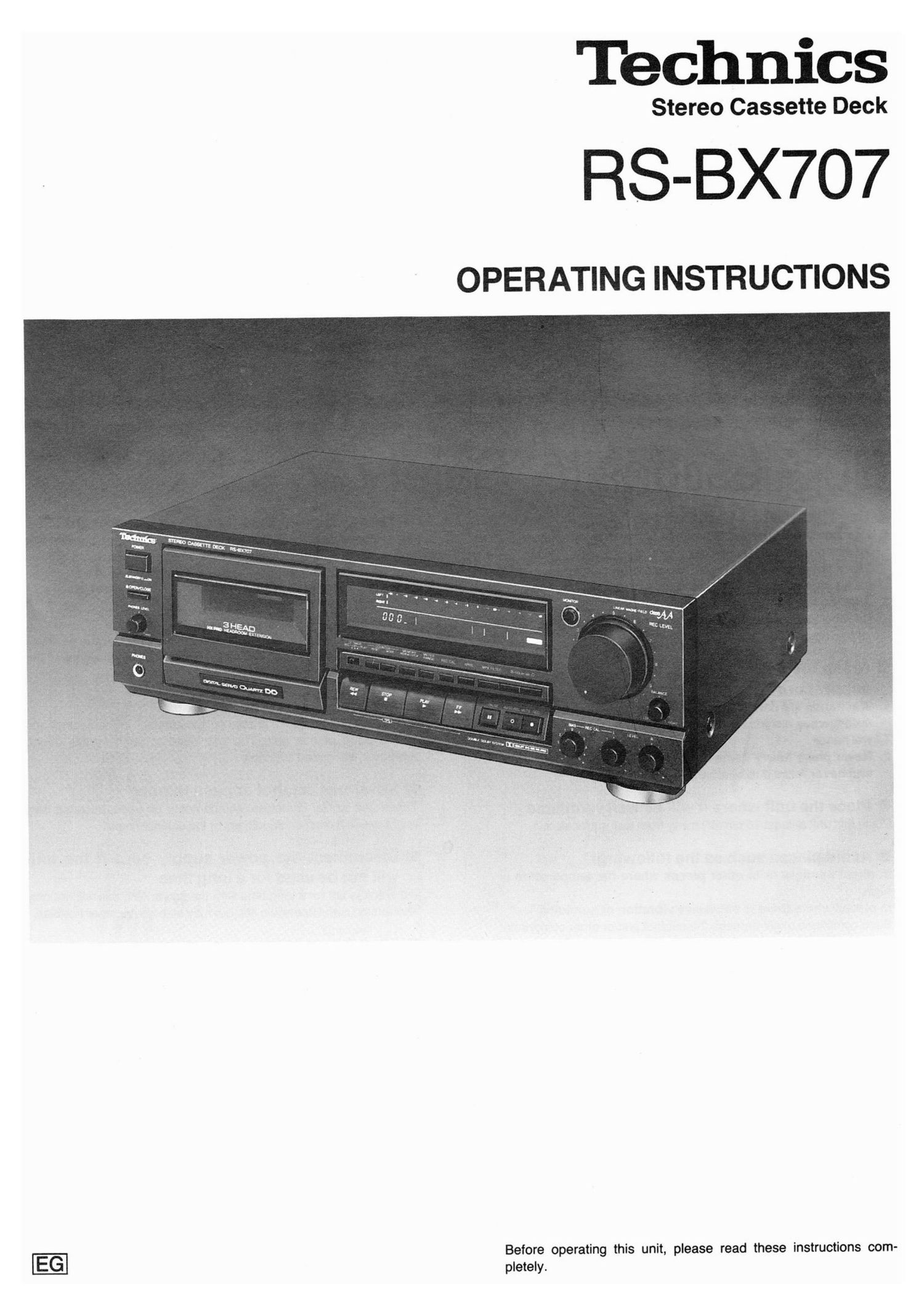

Page 1

EG

Technics

Stereo Cassette Deck

RS-BX707

OPERATING INSTRUCTIONS

Before operating this unit, please read these instructions com-
pletely.

Page 2

We want to thank you for selecting this product and to
welcome you to the growing family of satisfied
Technics product owners around the world.

We feel certain you will get maximum enjoyment

from this new addition to your home.

Please read these operating instructions carefully,
and be sure to keep them handy for convenient
reference.

Contents

Suggestions for Safety .....................
Accessories ..............................
Connections ..............................
Front Panel Controls and Functions ........
Playback .................................
Recording ................................ 1
Recording with High Tone Quality .......... 1

b-VhOJQM

Timer Recording/Playback ................. 17
Technical Information ..................... 18
After Recording ........................... 20
About Cassette Tapes ..................... 20
Maintenance .............................. 21
Technical Specifications ................... 21
Troubleshooting Guide .................... 22

Suggestions for Safety

I Use a standard AC wall outlet

1. Use from an AC power source of high voltage, such as for
an air conditioner, is very dangerous.
There is the possibility that a fire might be caused by making
such a connection.

2. A DC power source cannot be used.
Be sure to check the power source carefully, especially on a
ship or other place where DC is used.

I Grasp the plug when disconnecting the power
supply cord

1. Wet hands are dangerous.
A dangerous electric shock may result if the plug is touched by
wet hands.

2. Never place heavy items on top of the power supply cord,
and never force it to bend sharply.

I Place the unit where it will be well ventilated
Place this unit at least 10 cm (4) away from wall surfaces, etc.

I Avoid places such as the following:

In direct sunlight or in other places where the temperature is
high.

In places where there is excessive vibration or humidity.

Such conditions might damage the cabinet and/or other component
parts and thereby shorten the units service life.

I Be sure to place the unit on a flat, level surface
If the surface is inclined, a malfunction may result.

I Never attempt to repair or reconstruct this unit
A serious electric shock might occur if this unit is repaired,
disassembled or reconstructed by unauthorized persons, or if the
internal parts are accidentally touched.

I Take particular care if children are present

Never permit children to put anything, especially metal, inside this
unit. A serious electric shock or malfunction could occur if articles
such as coins, needles, screwdrivers, etc. are inserted through the
ventilation holes, etc. of this unit.

I if water is spilled on the unit

Be extremely careful if water is spilled on the unit, because a fire or
serious electric shock might occur. Immediately disconnect the
power cord plug, and consult with your dealer.

I Avoid spray-type insecticides .
Insecticides might cause cracks or cloudiness" in the cabinet and
plastic parts of this unit. The gas used in such sprays might,
moreover, be ignited suddenly.

I Never use alcohol or paint thinner
These and similar chemicals should never be used, because they
might cause flaking or cloudiness of the cabinet finish.

I Disconnect the power supply cord if the unit

will not be used for a long time
If the unit is left for a long time with the power ON, this will not only
shorten its useful operation life, but may also cause other troubles.

I If trouble occurs

If, during operation, the sound is interrupted or indicators no longer
illuminate, or if abnormal odor or smoke is detected, immediately
disconnect the power cord plug, and contact your dealer or an
Authorized Service Center.
