Technics RSB 50 Owners Manual

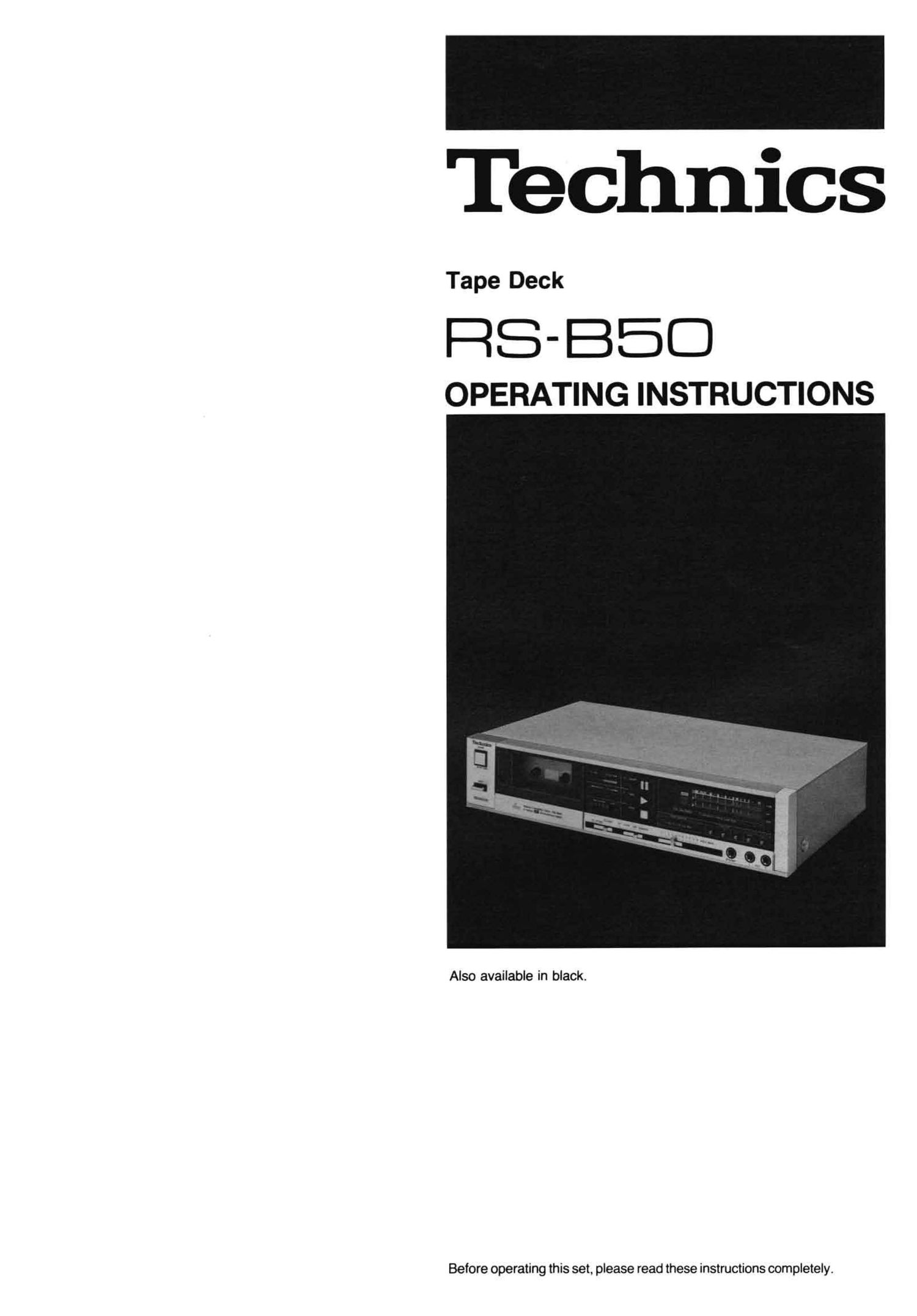

Page 1

Technics

Tape Deck

RS-BEO

OPERATING INSTRUCTIONS

Also available in black.

Before operating this set, please read these instructions completely.

Page 2

We want to thank you for selecting this product and
to welcome you to the growing family of satisfied
Technics product owners around the world.

We feel certain you will get maximum enjoyment
from this new addition to your home.

Please read these operating instructions carefully,
and be sure to keep them handy for convenient
reference.

0 FOR UNITED KINGDOM ................................ 2
0 FOR AUSTRALIA ...................................... 2
0 FOR SAFE USE OF THIS UNIT .......................... 2
0 BEFORE USING THIS UNIT ............................. 3
O CONNECTIONS ........................................ 3
0 TECHNICAL SPECIFICATIONS ......................... 3
O MAINTENANCE OF EXTERNAL

SURFACES ........................................... 3
0 FRONT PANEL CONTROLS AND

THEIR FUNCTIONS .................................... 4
0 ABOUT CASSETTE TAPES ............................. 5
0 PLAYBACK ........................................... 6
0 RECORDING .......................................... 7
0 NOISE REDUCTION SYSTEMS .......................... 8
0 HEAD CARE .......................................... 9
0 TROUBLE SHOOTING ................................. 9

Important

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN AC-
CORDANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this unit may not
correspond with the coloured markings identifying the
terminals in your plug. proceed as follows. The wire which is
coloured BLUE must be connected to the terminal which is
marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.

This apparatus was produced to BS 800: 1977

For your safety

To ensure safe operation the three-pin plug supplied must be
inserted only into a standard three-pin power point which is
effectively earthed through the normal household wiring.
Extension cords used with the unit must be three-core and be
correctly wired to provide connection to earth. Wrongly wired
extension cords are a major cause of fatalities.

The fact that the unit operates satisfactorily does not imply that
the power point is earthed and that the installation is completely
safe. For your safety, if in any doubt about the effective earthing
of the power point. consult a qualified electrician.

l FafiSAFE use or: THisur T ¥

I Use a standard electrical AC wall outlet

1. Use from an AC power source of high voltage, such as for air
conditioners, is very dangerous.
Be extremely careful not to make a connection to the elec-
trical,outlet for a large air conditioner or central-heating unit
which uses high voltage. because there is the possibility of
fire.

2. A DC power source cannot be used.
Be sure to check the power source carefully. especially on a
ship or other place where DC is used.

I Connection and removal of the power cord plug

. Wet hands are dangerous.
A dangerous electric shock may result if the plug is touched
by wet hands.

2. Don't pull the power cord.

Always grasp the plug; never pull the cord itself.

I Never attempt to repair or reconstruct this unit

A serious electric shock might occur if this unit is repaired.
disassembled or reconstructed by unauthorized persons. or if
the internal parts are accidently touched.

I For families with children

Never permit children to put anything. especially metal. inside
this unit. A serious electric shock or malfunction could occur if
articles such as coins, needles. screwdrivers, etc. are inserted
through the ventilation holes. etc. of this unit.

I Turn off after use

If the unit is left for a long time with the power on. this will not
only shorten its useful operation life, but may also cause other
unexpected trouble.

I If water is spilled on the unit

Be extremely careful if water is spilled on the unit. because a fire
or serious electric shock might occur. Immediately disconnect
the power cord plug. and consult with your dealer.

I Place the unit where it will be well ventilated, and
away from direct sunlight

I Keep the unit away from stoves, etc.

Heat can damage the external surfaces as well as internal cir-
cuits and components.

I Avoid spray-type insecticides

Insecticides might cause cracks or cloudiness" in the cabinet
and plastic parts of this unit. The gas used in such sprays might.
moreover. be ignited suddenly.

I Never use alcohol or paint thinner

These and similar chemicals should never be used. because
they may damage the finish.

I If trouble occurs

if. during operation. the sound is interrupted or indicators no
longer illuminate. or if abnormal odor or smoke is detected.
immediately disconnect the power cord plug. and contact your
dealer or an Authorized Service Center.
