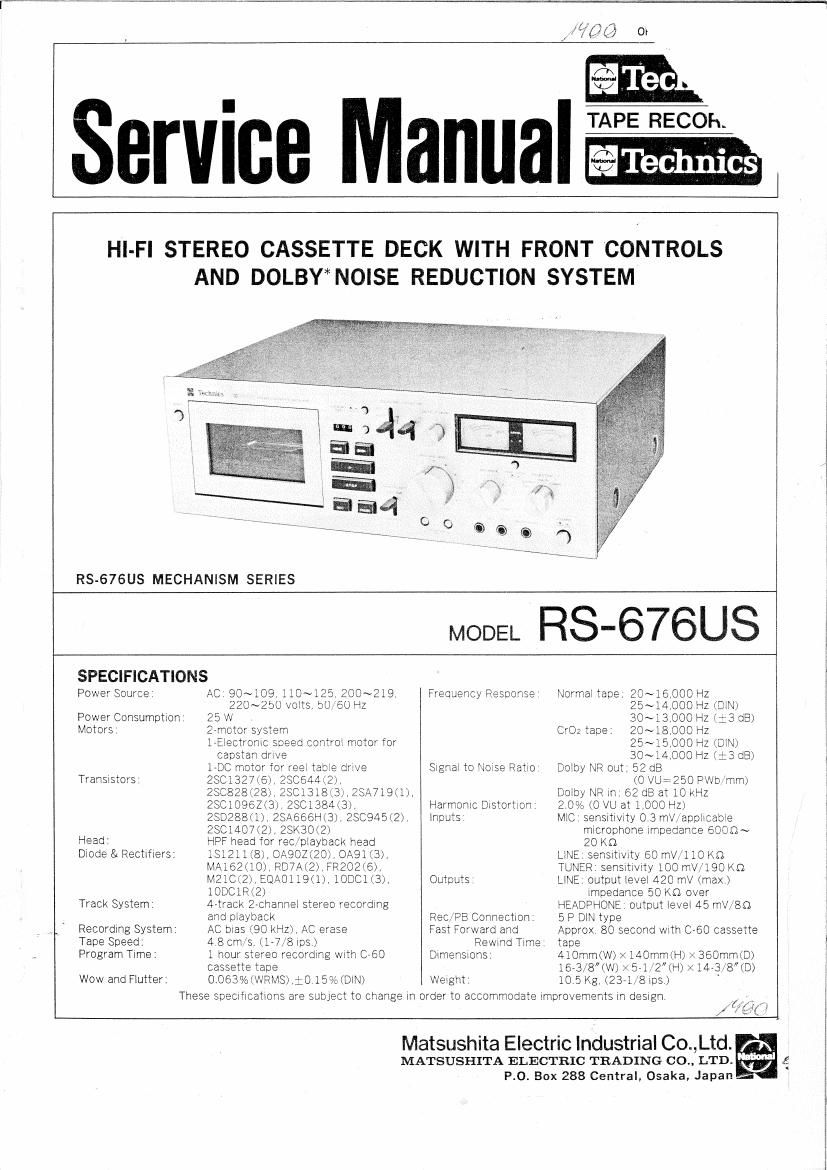

Technics RS 676 US Service Manual
This is the 61 pages manual for Technics RS 676 US Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Technics RS 676 US Service Manual (Ocr-read)
Page 45
MODIFICATION:
M125
QDM1339C -> QDM1335
INTERCHANGEABILITY:
The new parts can be used to the former sets.
CHANGEOVER:
From the production of September, 1974. (From serial number Rl4...onward)
Change of Plunger
REASON:
The connection between play plunger and head base plate is changed to stabilize action
of plungero
MODIFICATION:
Ref. No. Description Part No. Remarks
Old New
M13 Tapping Screw XTN3-(i-321 pcs) XTNa-(l-386Fécs) Added
M18 Stop Ring 2.5¢ 325?; pm 325?; Des.) -
M76 P'Unge Egagause Plunger QMN18898 QMN1889C (New)
M76 Plunger Slflgfplay Plunger QMN188QB QMN1817 (M133)
M78 Nut 3¢ XNGBEFé peg) XNGBEFé pcsr) __
M79 Spring Washer 395 XWASBQ pcs.) XWA3B(1pcs.) -
M83 Plunger (3 pcs) QME0141 QMEOIAIA -
M90 Head Base Plate Assembly QXK1479 QXK147QB -
M90A Angle-B - QMA2661 Added
Old Type New Type
(Play Plunger)
M83
M13
M76
M90
79
M78
M90A
