Technics RS 1500 Test
This is the 3 pages manual for Technics RS 1500 Test.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Technics RS 1500 Test (Ocr-read)

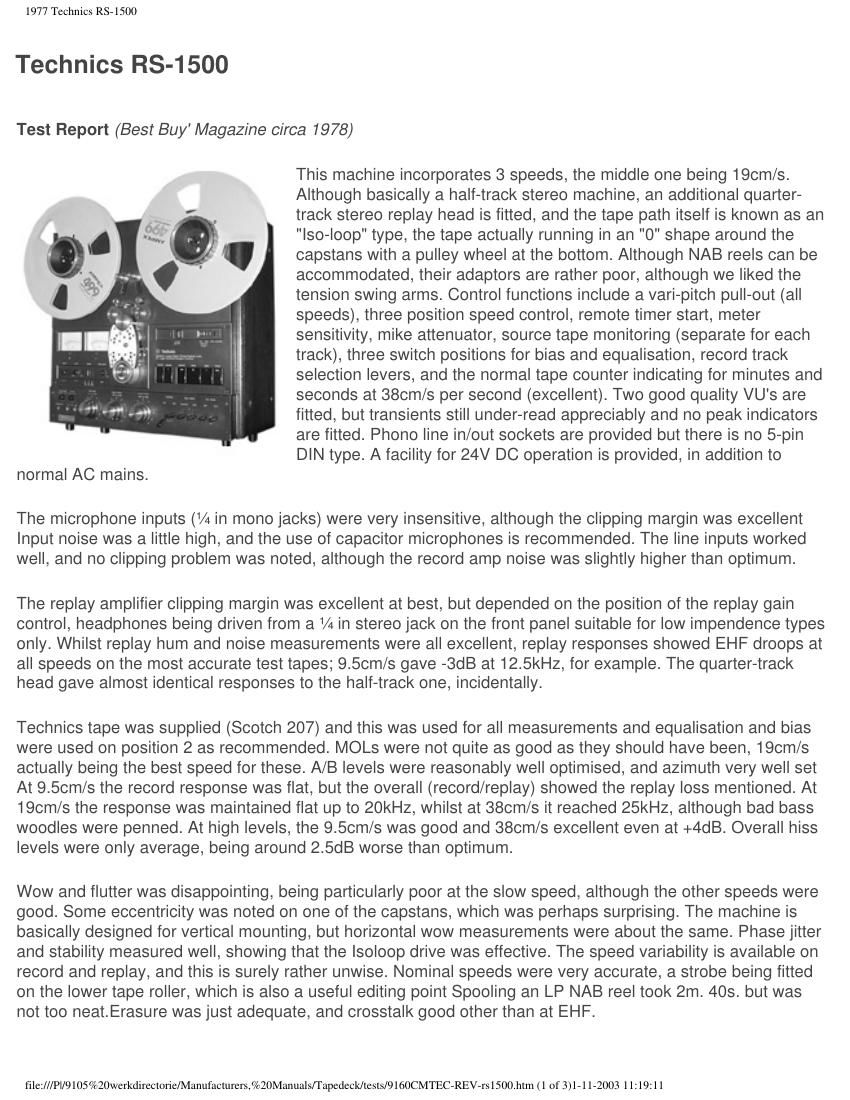

Page 1
1977 Technics RS-1500 The overall subjective results were considered rather average, and perha\ ps a better choice of tape would . have been advisable. In particular, the slow speed performance was most \ disappointing, and the sound quality here was rather more ragged at HF than on many of the other mach\ ines operating at this speed. The quarter-track replay head is actually situated before the erase head, an\ d record drop-in is thus a little awkward because of the great distance between the erase head and record head aro\ und the loop. Tape threading was a little awkward but in other ways the machine was liked. The machine's price is very high and we just cannot feel that it is comp\ etitive, and so a recommendation for purchase is not really appropriate. It did seem however, that the review\ sample was below par, so another example might have fared better, particularly if used with a better tape\ type. GENERAL DATA Mike i/p; sens/clipping/noise........................ 750uV/l V/-53dB Line i/p: sens/clipping.................................. 200mV/>I0V Meter quality .................................................. good Worst replay hum component .......................... -66dB [50Hz] Replay hiss (CCIR/ARM ref DL) 9.5/19/38cm/s...... -69/-73/-73dB Replay amp clipping (ref DL)/distortion................. +21 dB/v. goo\ d Max line output (DL) ........................................ 900mV Dist point (333Hz 3 3rd MOL ref DL) 9.5/19/38cm/s ....................\ ........... +8.6/+10.5/+10.3dB Overall noise (CCIR/ARM ref DL) 9.5/19/38cm/s... -55/-56.5/-55dB Worst erase figure.......................................... -68.5dB Overall wow and flutter (DIN) av/worst 9.5cm/s..........0.12/0.13 19cm/s ......... 0.04/0.044 38cm/s ......... 0.02/0.023 Speed accuracy (worst) ...................................... accurate\ Approx dimensions (W/H/D)............................. 46/44/26cm Approx weight................................................. 26kg Approx typical price ..................................... £1000 file:///P|/9105%20werkdirectorie/Manufacturers,%20Manuals/Tapedeck/tests\ /9160CMTEC-REV-rs1500.htm (2 of 3)1-11-2003 11:19:11
Page 2
1977 Technics RS-1500 file:///P|/9105%20werkdirectorie/Manufacturers,%20Manuals/Tapedeck/tests\ /9160CMTEC-REV-rs1500.htm (3 of 3)1-11-2003 11:19:11
