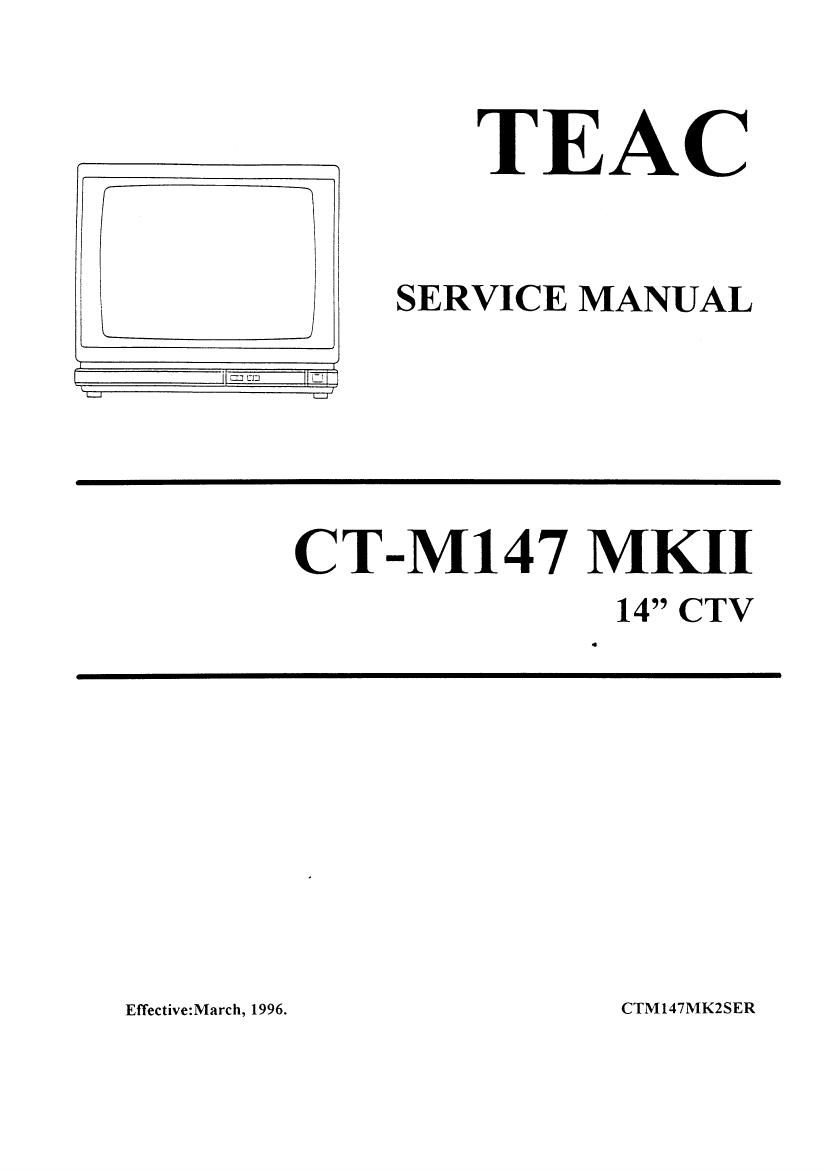

Teac CT M147 Mk2 Service Manual
This is the 42 pages manual for Teac CT M147 Mk2 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac CT M147 Mk2 Service Manual (Ocr-read)
Page 9
VOLTAGE. TABLE FOR IC
SYMKJL U 202
PIN ID. TDA 4661
l 5.2
2 O
3 0
4 0
5 1.4
6 O
7 O
8 0
9 5.2
10 0
1.1 2.9
12 2.9
13 0
14 1.3
15 0
16 1.3
.
[\UI'E . VOLTAGE ARE TAKEN UNDER TUNED GDNDITION WITH
CONTRAST : Maximum Position
BRIGHINESS : Maxixmm Position
CDDOR : Maxirmm Position
SIGNAL INPUT : 80 dBuV
CHANNEL SETTING : The Last Channel of UHF High
SIGNAL PATTERN : Colour Bar
Page 32
I" THIS SPARE LIST IS MADE FOR TECHNICAL / MAINTENANCE REFERENCE ONLY I
Print Date : 03/20/96 PRODUCT CODE : 8813T0-240003-TV
Page Number : 6 DESCRIPTION : 8813B TENS PAL/BG W/SCART/IP. TXT M.BLK 240V 5AA {MONO 40F.)
Component Description / Location Unit Subs quanti ty Unit Amount
Part Required Pri ce
113-181105-17 CARBON FILM RESISTOR 180 OHM 1/4W +-5% 0 1.00000 0.0023 0.002800
R222
113-132105-17 CARBON FILM RESISTOR 1.8K OHM 1/4" +-5%
06,602,274
0 3.00000 0.0028 0.008400
113-183105-17 CARBON FILM RESISTOR 18K OHM 1/4W +-5% 0 2.00000 0.0028 0.005600
R418,721
113-184105-17 CARBON FILM RESISTOR 180K OHM 1/4" +-5% 0 1.00000 0.0028 0.002800
R120
113-221105-17 QRBON FILM RESISTOR 220 OHM 1/4" +-5% 0 6.00000 0.0028 0.016800
R142,238,213,909,909,910
113-221305-75 METAL OXIDE FILM RESISTOR 220 OHM 1W +-5%
R419
113-222105-17 CARBON FILM RESISTOR 2.2K OHM 1/4w +-5%
R130,224,272,151
O 1 .00000 0.0167 0.018700
0 4.00000 0.0020 0.011200
3888338888338838
113-222205-12 OAREOII FILM RESISTOR 2.2K 00M 1/zw +-50 1.00000 0.0062 0.006200
R715
113-223101-67 METAL FILM RESISTOR 22K OHM 1/4w +-10 0 2.00000 0.0106 0.021200
R412,111
113-223105-17 CARBON FILM RESISTOR 22x OHM 1/dw +-5% 0 12.00000 0.0020 0.033600
R109,110,114,143,144,146,150,124,150,525,713,912
113-223105-17 CARBON FILM RESISTOR 22K OHM 1/4w +-5% 0 2.00000 0.0020 0.005600
R722,232
113-224105-17 CARBON FILM RESISTOR 220K OHM 1/4w +-5% 0 2.00000 0.0020 0.005600
R719,155
113-229205-12 CARBON FILM RESISTOR 2.2 OHM 1/2w +-50 0 1.00000 0.0062 0.006200
R279
113-229305-75 METAL OXIDE FILM RESISTOR 2.2 OHM 1w +-5% 0 1.00000 0.0107 0.010700
R426
113-229405-75 METAL OXIDE FILM RESISTOR 2.2 OHM 2w +-50 0 2.00000 0.0240 0.040000
R503,427
113-270405-75 METAL OXIDE FILM RESISTOR 27 OHM 2w +-5% 0 1.00000 0.0240 0.024000
R513
113-272105-17 CARBON FILM RESISTOR 2.7x OHM 1/4w +-50 PC 0 5.00000 0.0020 0.014000
R61e,613,614,615,616
113-272205-12 CARBON FILM RESISTOR 2.7x OHM 1/2w +-5% Fe 0 2.00000 0.0062 0.012400
R403,520
113-273105-17 CARBON FILM RESISTOR 27K 0014 1/4w +-5% Fc 0 3.00000 0.0020 0.000400
R211,241,902
113-274205-12 CARBON FILM RESISTOR 270x OHM 1/2w +-50 PC 0 1.00000 0.0062 0.006200
R410
113-331105-17 CARBON FILM RESISTOR 330 OEM 1/4w +-50 PC 0 1.00000 0.0020 0.002000
R503
113-332102-17 CARBON FILM RESISTOR 3.3x OHM 1/4w +-2% pc 0 1.00000 0.0044 0.004400
R505
113-332105-17 CARBON FILM RESISTOR 3.3x OHM 1/4w +-5% PC 0 6.00000 0.0020 0.016000
R152,153,235,269,266,901
113-332605-75 METAL OXIDE FILM RESIst 3K3 OEM 5w +~50 PC 0 1.00000 0.1154 0.115400
R406
I13-333105~17 CARBON FILM RESISTOR 33x OHM 1/4w +-50 Fe 0 2.00000 0.0020 0.005600
R416,125
