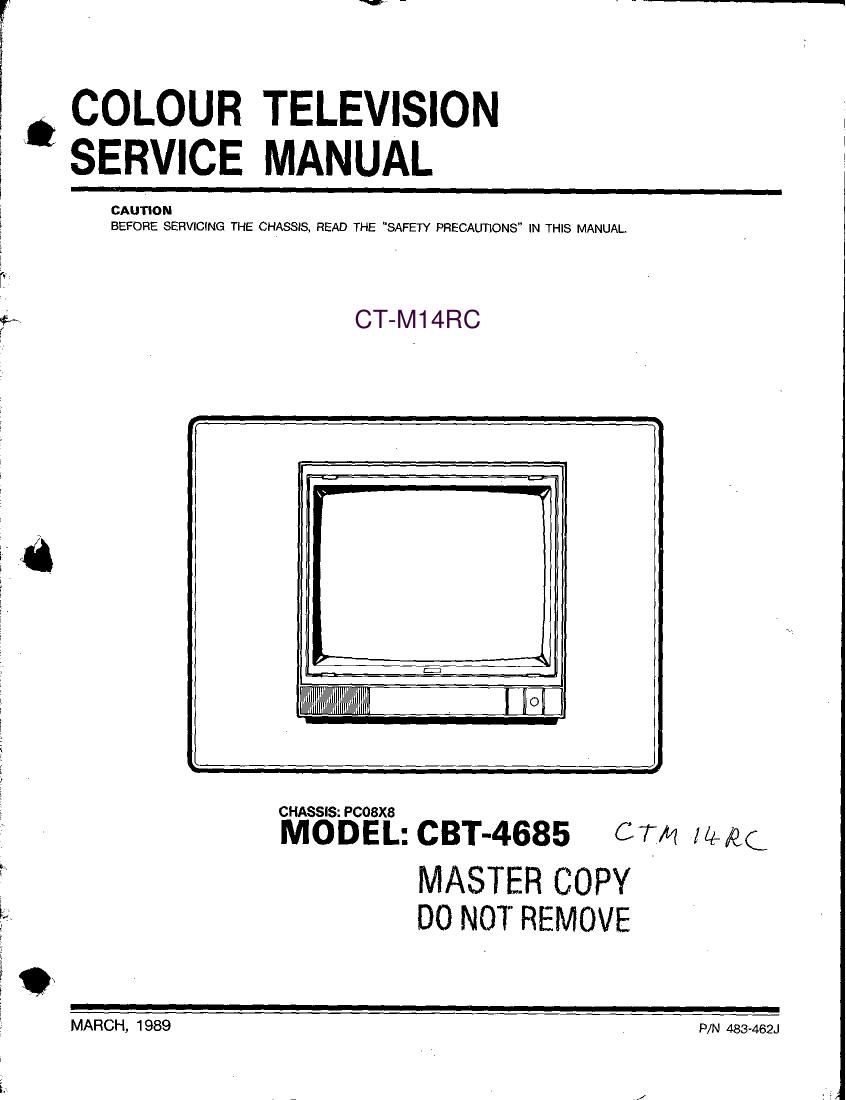

Teac CT M14 RC Service Manual
This is the 35 pages manual for Teac CT M14 RC Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac CT M14 RC Service Manual (Ocr-read)
Page 2
CONTENTS
Contents and Specifications -------------------------------- - 2
Safety Precautions .......................................... . . 3
Servicing precautions ............................................................................................. 4
Controls Location -------- 6
Antenna Connections" - 7
Disassembly instructions - 8
Parts Location of Main Chassis -------------------------- - 9
Adjustment instructions .......................................................................................... 10
Circuit Descriptions ............................................................................................. 15
Troubleshooting Guide -20
Block Diagram -------------- -25
Wiring Diagram .................................. .25
Termina' Views of Semicondudor ........................................................................... 27
Componen LOCafiOn Guide" .......................................................................... 28
Printed Circuit Board
Exploded View ----------
Replacement Parts List .......................................
Special Parts Identification ....................................................................................... 38
Schematic Diagram ................................................................................................ 39
SPECIFICATIONS
Power Source ........................................................................... AC 180V270V,50HZ
Power Consumption -------------------------- 65W
Receiving TV System -- CCIR Standard
Colour Receiving System -~ ----- PAL-B/G
Receiving Channels --------------- VHF LOW : 2~4CH.,VHF High : 5-12CH, UHF: 21 vSSGH
CATV 3 $1 ~S25
Intermediate Frequency
Picture ........................................... 38.9MHZ
Sound ......................................... .. 33.4MHZ
Colour ................................................................................................ 3447MHZ
Tuning ------------- - 16 Address Voltage Synthesizer Manual Search System
Audio Output -- --------------------- 2W
Antenna Input Impedance -75 ohm [EC Type
(300 ohm using balun supplied)
Picture Tube .......................................................................................... 370RE822TC
Speaker .............................. 75x40mm
Dimension 360(W) XSSOCH) X385(D)mm
Weight ' 13.2Kg
