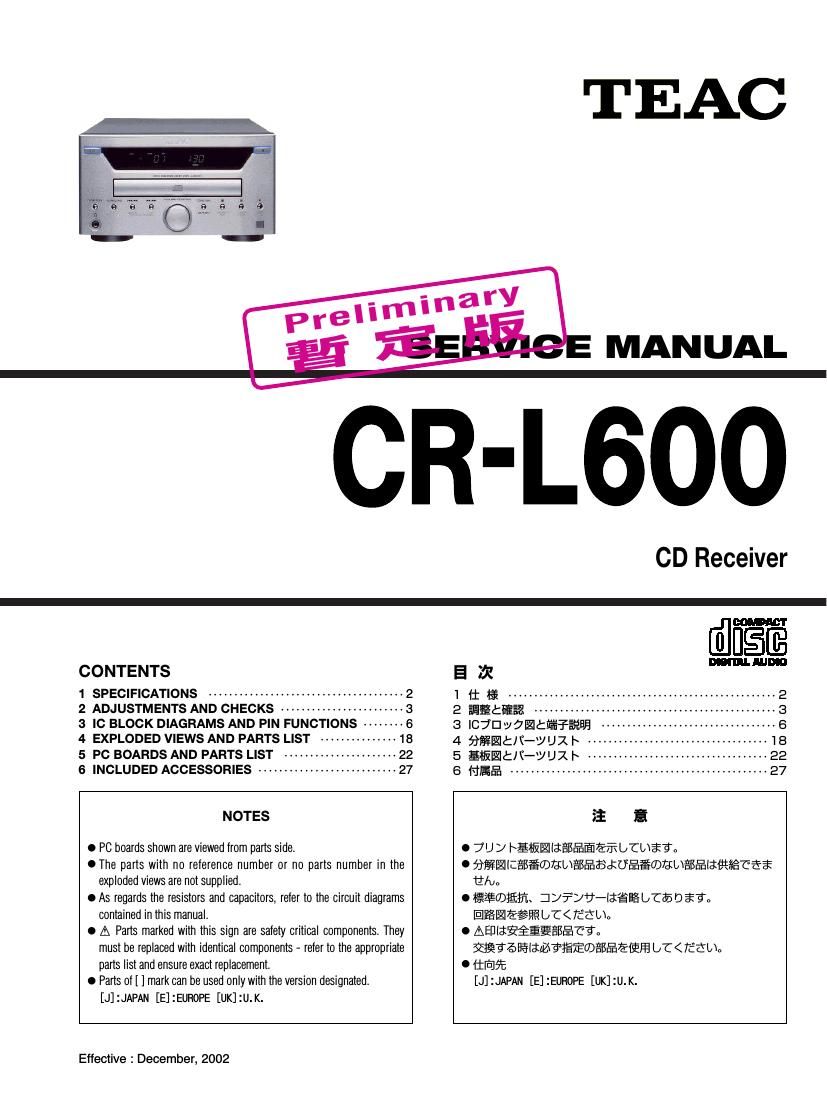

Teac CR L600 Service Manual
This is the 33 pages manual for Teac CR L600 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac CR L600 Service Manual (Ocr-read)
Page 1
1 SPECIFICATIONS µ2µ y7 AMPLIFIER Section Output Power .............................. 30 W/ch (6 ohms, 0.5 %,1 kHz) Input Sensitivity ................................................ 350 mV/47k ohms Frequency Response ...................... 20 Hz to 20,000 Hz (+1/-3 dB) TUNER Section FM Section Frequency Range .......... 87.50 MHz to 108.00 MHz (50 kHz steps) Signal-to-Noise Ratio .................... 65 dB (Mono) / 60 dB (Stereo) AM Section Frequency Range .................... 522 kHz to 1629 kHz (9 kHz steps) Signal-to-Noise Ratio............................................................ 35 dB CD PLAYER Section Frequency Response .......................... 20 Hz to 20,000 Hz (±2 dB) Signal-to-Noise Ratio .......................................... more than 85 dB Wow and Flutter ...................................................... Unmeasurable GENERAL Power Requirements ............................................ 230 V AC, 50 Hz Power Consumption .............................................................. 40 W Power Consumption (standby) ................................................ 5 W Dimension (W x H x D) ................................ 190 x 104 x 349 mm Weight ................................................................................ 3.0 kg Standard Accessories .............. Remote Control Unit (RC-864) x 1 Batteries (AA, R6, SUM-3) x 2 AM Loop Antenna x 1 FM Lead-type Antenna x 1 Owner's Manual x 1 Warranty Card x 1 -Design and specifications are subject to change without notice. -Weight and dimensions are approximate. ÙžïÓ æ
Page 2
2 ADJUSTMENTS AND CHECKS µ3µ Ð Tq¬ Ý j ‹ ¤ Preliminary
