Teac CR H80 Service Manual

This is the 32 pages manual for Teac CR H80 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 32
Teac CR H80 Service Manual

Extracted text from Teac CR H80 Service Manual (Ocr-read)

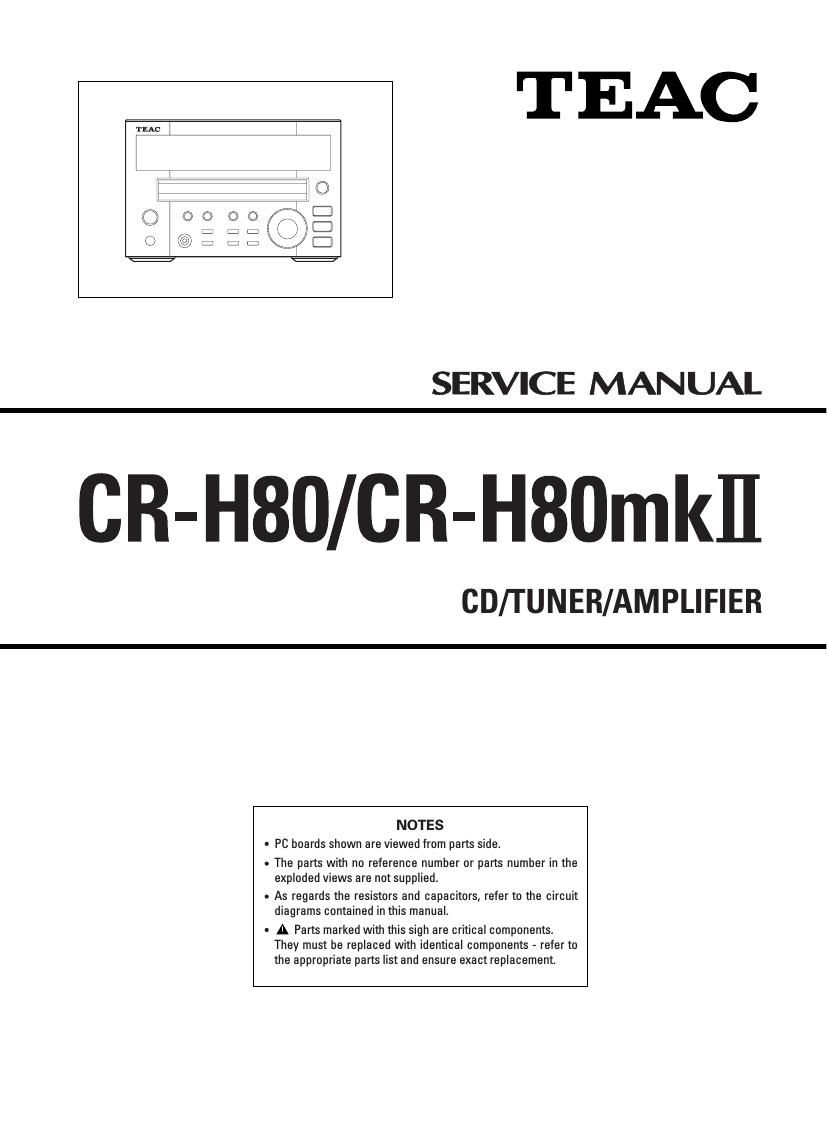

Page 1

TEAC

SERVICE MANUAL

CR-H80/CR-H80mkll

(ID/TUNER/AMPLIFIER

NOTES
. PC boards shown are viewed from parts side.
0 The parts with no reference number or parts number in the
exploded views are not supplied.
. As regards the resistors and capacitors, refer to the circuit
diagrams contained in this manual.

- A Parts marked with this sigh are critical components
They must be replaced with identical components - refer to
the appropriate parts list and ensure exact replacement.
