Teac CR H257i Service Manual
This is the 19 pages manual for Teac CR H257i Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac CR H257i Service Manual (Ocr-read)
Page 1
@@@-"eoag

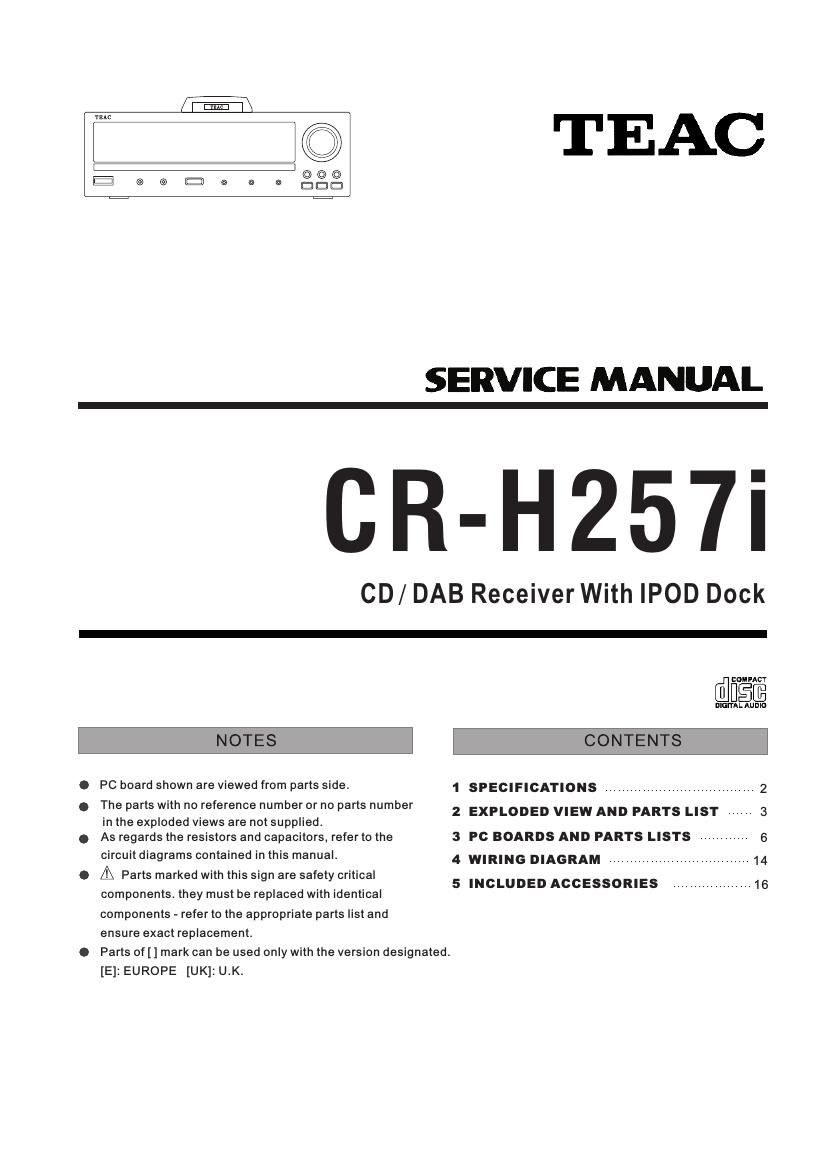

TEAC
SERVICE MANUAL
CR-H257i
CD/ DAB Receiver With IPOD Dock
ccuucr
nmmu. Au ma
NOTES
CONTENTS
PC board shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, referto the
circuit diagrams contained in this manual.
A Parts marked with this sign are safety critical
components. they must be replaced with identical
components - refer to the appropriate parts list and
ensure exact replacement.
Parts of [] mark can be used only with the version designated.
[E]: EUROPE [UK]: U.K.
1 SPECIFICATIONS
2 EXPLODED VIEW AND PARTS LIST
3 PC BOARDS AND PARTS LISTS
4 WIRING DIAGRAM
5 INCLUDED ACCESSORIES
14
16
