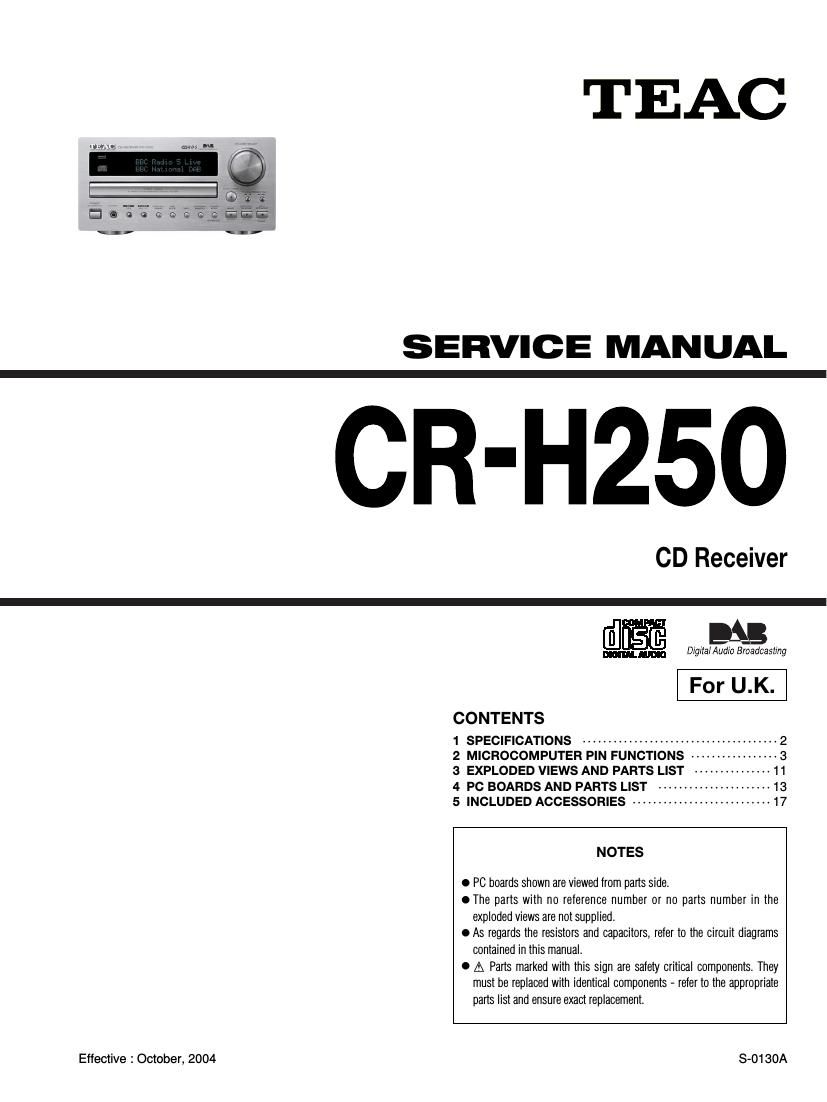

Page 1
TEAC
SERVICE MANUAL
CR-H25O
CD Receiver
[diIE'fi
man-u mm Digital Audio Broadcasting
For U.K.
CONTENTS
1 SPECIFICATIONS
2 MICROCOMPUTER PIN FUNCTIONS ..
3 EXPLODED VIEWS AND PARTS LIST
4 PC BOARDS AND PARTS LIST 13
5 INCLUDED ACCESSORIES H >>>>>>>>>>>>>>>> ~ 17
NOTES
0 PC boards shown are viewed from parts side.
oThe parts with no reierence number or no parts number in the
exploded views are not supplied.
0 As regards the resistors and capacitors, reler to the circuit diagrams
contained in this manual.
0 A Parts marked with this sign are safety critical components. They
must be replaced with identical components 7 refer to the appropriate
parts list and ensure exact replacement.
Effective : October, 2004 8-0130A
