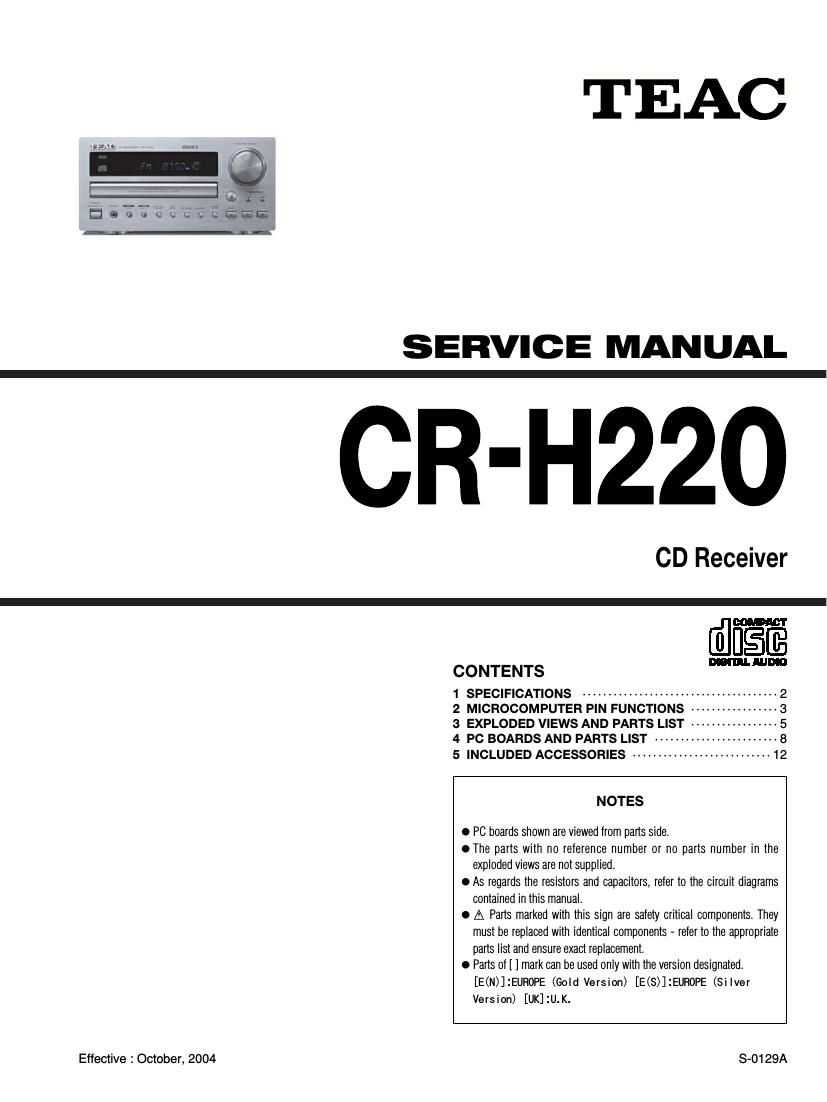

Teac CR H220 Service Manual
This is the 19 pages manual for Teac CR H220 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac CR H220 Service Manual (Ocr-read)
Page 2
2 MICROCOMPUTER PIN FUNCTIONS µ3µ TMP87PS71AF PIN No.NAMEI/ODESCRIPTION 1F_MUTE O Function Mute Control port (Active "H") 2REMOTE I Remote Data input port 3RDS_CLK I RDS Clock input port 4RDS_DATA I RDS Data input port 5TAPE(H) O TAPE Control port (Active "H") 6AUX2(H) O AUX2 Control port (Active "H") 7N.C - No Connection 8CD_STBY O CD_STANDBY On Control port 9GND - GND 10 JOG2 I 11 JOG1 I 12 RESET I Reset port 13 X IN - 14 X OUT - 15 GND - GND 16 BACK_UP I BACKUP mode control portJOG Data Input port(Master Volume) 8MHz Crystal Connection port
