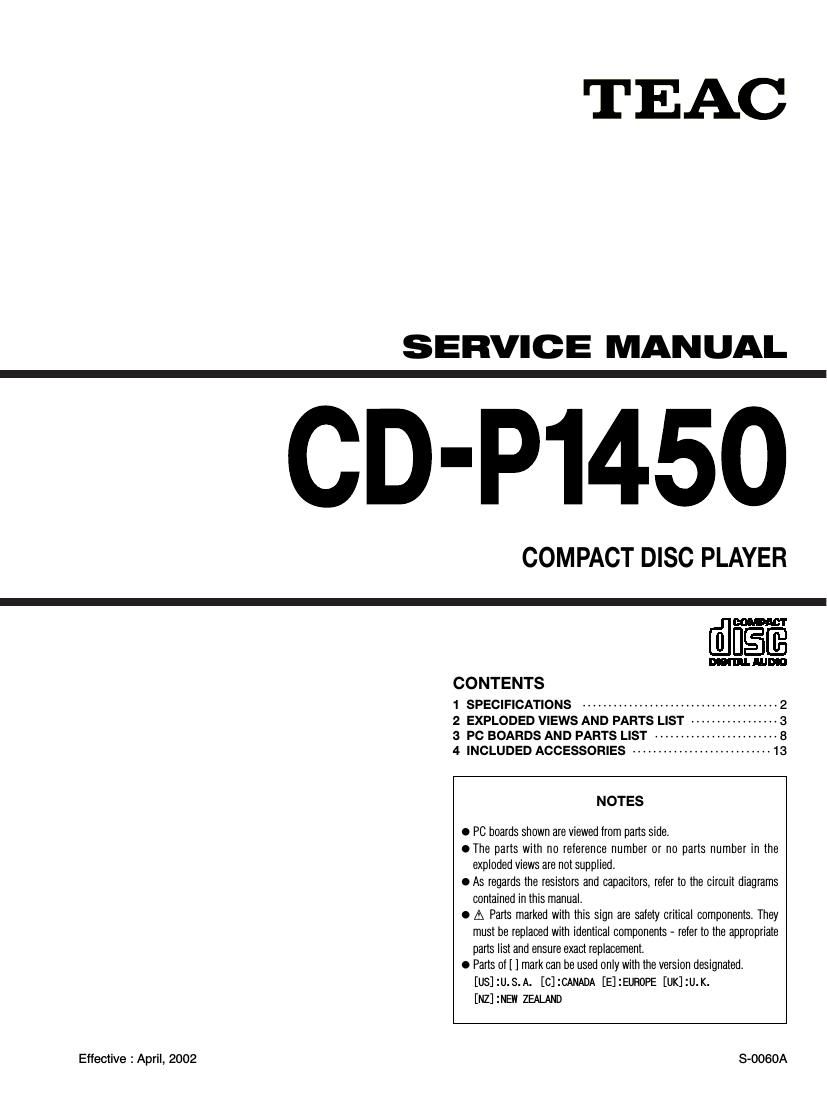

Page 1
Effective : April, 2002
TEAC
SERVICE MANUAL
CD-P145O
COMPACT DISC PLAYER
[NEE
DIGITAL AUDIO
CONTENTS
1 SPECIFICATIONS
2 EXPLODED VIEWS AND PARTS LIST ..
3 PC BOARDS AND PARTS LIST ------- . 8
4 INCLUDED ACCESSORIES ------------------------ 13
NOTES
0 PC boards shown are viewed from parts side.
0 The parts with no reierence number or no parts number in the
exploded views are not supplied.
0 As regards the resistors and capacitors, reier to the circuit diagrams
contained in this manual.
0 A Parts marked with this sign are safety critical components. They
must be replaced with identical components . refer to the appropriate
parts list and ensure exact replacement.
0 Parts oi [ ] mark can be used only with the version designated.
[US] :U. S. A. [C] :CANADA [E] :EUROPE [UK] :U. K.
[NZ] :NEW ZEALAND
S-OOBOA
Page 2
1 SPECIFICATIONS
CD PLAYER GENERAL
Pickup: Power Requirements:
3-beam. semiconductor laser 120 V AC. 60Hz (USA/Canada Model)
D/A Converter: 230 V AC, 50Hz (Europe/UK. Model)
1 bit DAC 240 V AC. 50Hz (New Zealand Model)
Digital litter: Power Consumption:
8»times oversampling 12 Watts (AC)
Frequency Response: Dimensions (W x H x D):
20 Hz~20 kHz :1.5dB 435x 104x290mm
Total Harmonic Distortion: Net Weight:
< 0.02 % (1 kHz) 36 kg
Signal-to-Noise Ratio (SIN): Standard Accessories:
>85 dB (1 kHz) Wireless Remote Control Unit (RC-681)
Channel Separation: RCA pin-plug cord
>80 dB (1 kHz) Battery (SUM-3. AA, R6 type) x 2
Output: (Europe/U.K./New Zealand Model)
Analog; 2.0 Vrms (RCA)
Digital; COAXIAL
Wow and Flutter: - Design and specifications are subject to change without notice.
Below measurable limit
SAFETY INFORMATION
This product has been designed and manufactured according to FDA
regulations "title 21, CFR, chapter 1, subchapter J, based on the Radiation G) For U.S.A.
Control for Health and Safety Act of 1968, and is classified as a class 1
laser product. There is no hazardous invisible laser radiation during
CERTIFICATION
operation because invisible laser radiation emitted inside of this product QUEZZLIDCUFCJSCSB'ZZLIEPSTQIEHiéEIE
is completely confined in the protective housings. ems AT we 0F momma.
The label required in this regulation is shown ®. figgggzgééfitswm roKvo MAN
0 CAUTION E
USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF -
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
Optical pickup:
TYPE : SFP101NXR
MANUFACTURER : Sanyo Electric Co. Ltd.
LASER OUTPUT : Continuous Wave max. 5mW
WAVE LENGTH : 765-815nm
