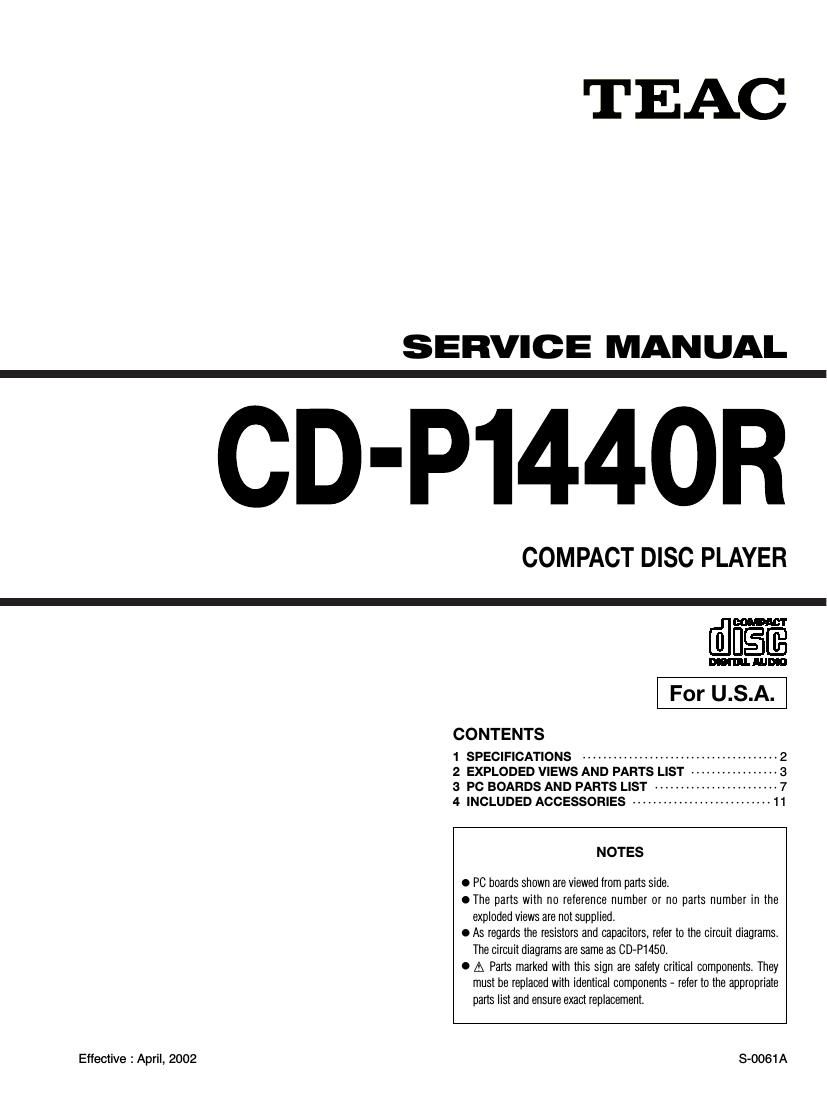

Teac CDP 1440 R Service Manual
This is the 11 pages manual for Teac CDP 1440 R Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac CDP 1440 R Service Manual (Ocr-read)
Page 1
1 SPECIFICATIONS µ2µ CD PLAYER Pickup: 3-beam, semiconductor laser D/A Converter: 1 bit DAC Digital filter: 8-times oversampling Frequency Response: 20 Hz ~ 20 kHz ±1.5dB Total Harmonic Distortion: < 0.02 % (1 kHz) Signal-to-Noise Ratio (S/N): >85 dB (1 kHz) Channel Separation: >80 dB (1 kHz) Output: Analog; 2.0 Vrms (RCA) Digital; COAXIAL Wow and Flutter: Below measurable limit GENERAL Power Requirements: 120 V AC, 60Hz Power Consumption: 12 Watts (AC) Dimensions (W x H x D): 435 x 104 x 305mm Net Weight: 3.6 kg Standard Accessories: Wireless Remote Control Unit (RC-681) RCA pin-plug cord -Design and specifications are subject to change without notice. SAFETY INFORMATION This product has been designed and manufactured according to FDA regulations "title 21, CFR, chapter 1, subchapter J, based on the Radiation Control for Health and Safety Act of 1968", and is classified as a class 1 laser product. There is no hazardous invisible laser radiation during operation because invisible laser radiation emitted inside of this product is completely confined in the protective housings. The label required in this regulation is shown 1. OCAUTION USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. Optical pickup: TYPE : SFP101NXR MANUFACTURER : Sanyo Electric Co., Ltd. LASER OUTPUT : Continuous Wave max. 5mW WAVE LENGTH : 765-815nm 1 For U.S.A.
Page 2
2 EXPLODED VIEWS AND PARTS LIST EXPLODED VIEW-1 µ3µ 51SC2 51SC2 51SC2 51SC2 45-1 5142 5108 5140 45-4 5118 5104 51SB3 5116
