Teac CD X10i Service Manual

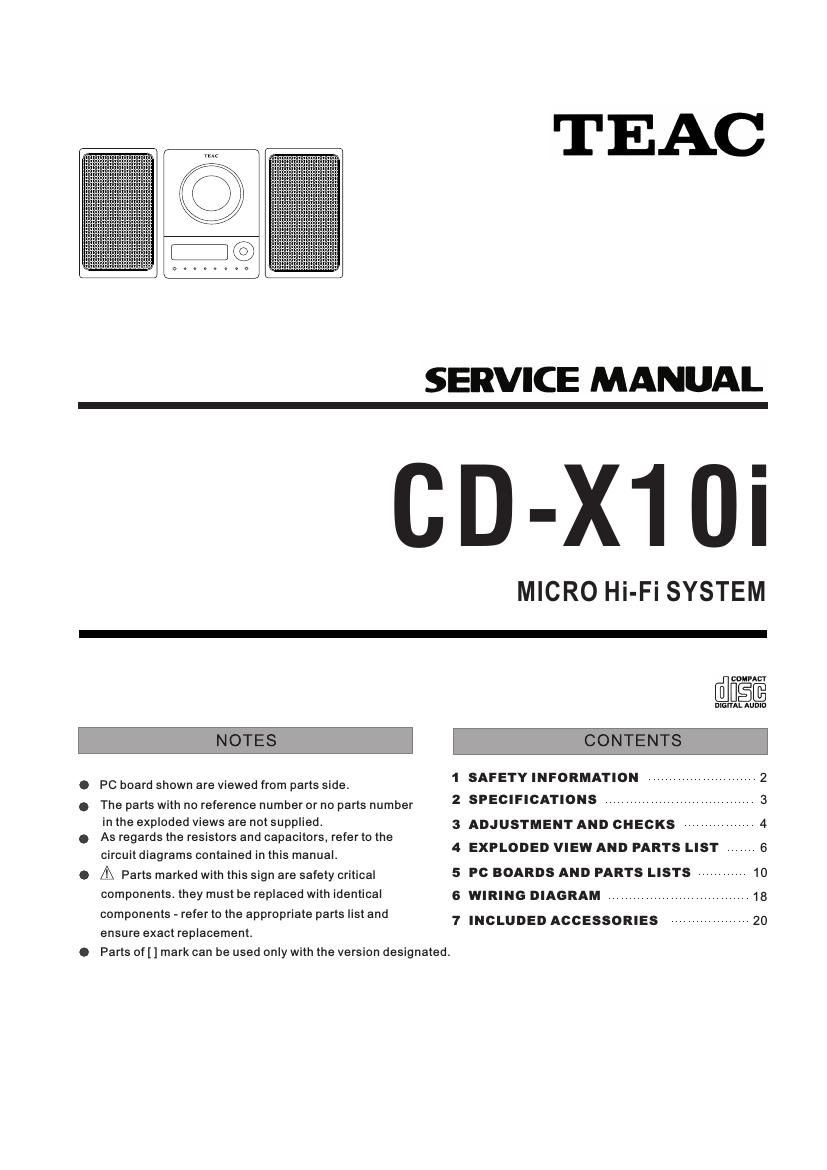

Page 1

TEAC

SERVICE MANUAL

CD-X10i

MICRO Hi-Fi SYSTEM

COMFAUT
DIGITALAUDIO
NOTES CONTENTS

0 PC board shown are viewed from parts side. 1 SAFETY INFORMATION 2
Q The partswith no reference numberor no parts number 2 SPECIFICATIONS 3
inthe exploded views are notsupplied. 3 ADJUSTMENT AND cflEcKs 4

Q As regards the resistors and capacitors, referto the
. . , . . . 4 EXPLODED VIEW AND PARTS LIST - - - 6

Circuit diagrams contained in this manual.

0 A Parts marked with this sign are safety critical 5 PC BOARDS AND PARTS LISTS - - - - 10
components. they must be replaced with identical 6 W|R|NG DIAGRAM 18
components-refertothe appropriate partslistand 7 INCLUDED ACCESSORIES 20

ensure exact replacement.

0 Parts of [] mark can be used only with the version designated.

Page 2

C D-X10i
1 SAFETY INFORMATION

SAFETY INFORMATION

This product has been designed and manufactured according to FDA regulations " title 21. CFR. chapter 1 ,subchapteerased on
The Radiation Control for Health and Safety Act of 1968" and is classified as class 1 laser product There is not hazardous
invisible laser radiation during operation because invisible laser radiation emitted inside ofthis product is completely confined
in the protective housings. The label required in this regulation is shown (D.

- CAUTION

USE OF CONTROLS ORADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT REMOVE THE PROTECTIVE HOUSING USING SCREWDRIVER.

IF THIS PRODUCT DEVELOPS TROUBLE, MAKEA CONTACT WITH OUR SERICEMAN, AND DO NOT USE THE PRODUCTATROUBLED
STATE.

@ FOR U.S.A.

CERTIFICATION
THIS PRODUCT COMFLIES WITH [mus
RULES 21 CFR SUBCHAPTER JAPPLIr
CABLE AT DATE OF MANUFAcTuRE
TEAc CORPORATION

: T : NAKA cm) MUSASI we 5le IOKYQ JAPAN
MANumcmEu ms

Optical pickup:

Type : SF-PZODZ

Manufacturer . SANYO Electric-00.,le
Laseroutput : Lesslhan 0.5mWontheobjective lens
Wavelength , 755 -815 nm
